    DC24V Brushless Motor Speed Adjustable Backup Battery Interface Vehicle Control Auto Barrier Gate

    Ask Lasest Price
    Brand Name : SINOMATIC
    Model Number : SN-BG130-DC
    Certification : CE/ ISO
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 3,000 pcs per month
    Delivery Time : 5-10 working days after payment received
    • Product Details
    • Company Profile

    DC24V Brushless Motor Speed Adjustable Backup Battery Interface Vehicle Control Auto Barrier Gate

    DC24V Brushless Motor Speed Adjustable Backup Battery Interface Vehicle Control Auto Barrier Gate


    Features of Automatic Barrier Gate


    1.The operation speed can be adjusted (1.5s to 6s).


    2.Arm direction can be quickly interchanged.


    3.Barrier gate up& down signal relay switch output.


    4. R&G Traffic light relay switch signal output.


    5. External loop detector signal anti-smashing interface.


    6. Infrared sensor signal anti-smashing interface.


    7. Count mode interface.


    8.Arm swing out function,when the vehicle hit the barrier gate,the arm can be swing out to avoid further damage(fast speed)


    9. High-sensitivity arm auto reverse function (intensity can be adjusted).


    10. Parking system interface.


    11. RS485 communication interface


    12. Backup battery interface

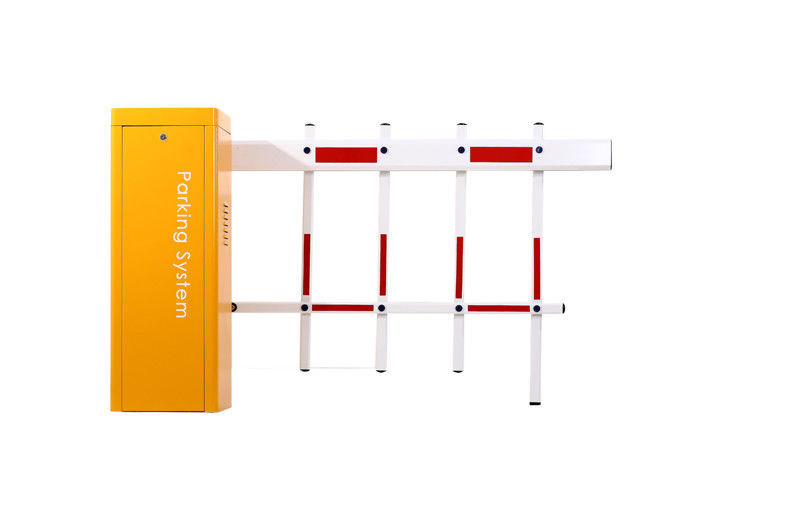

    PRODUC PHOTO

    DC24V Brushless Motor Speed Adjustable Backup Battery Interface Vehicle Control Auto Barrier Gate

    DC24V Brushless Motor Speed Adjustable Backup Battery Interface Vehicle Control Auto Barrier Gate

    DC24V Brushless Motor Speed Adjustable Backup Battery Interface Vehicle Control Auto Barrier Gate


    Specifications of Automatic Barrier Gate


    Working Temperature-35℃~+85℃
    Power SupplyDC24V
    Open/close Speed1.5sec to 6 sec(adjustable)
    Rated Current8.58A
    Rated Power140W
    Motor No-load Speed1850rpm
    Rated Rotating Speed1400rpm
    Output Power56.8N.m
    Humidity≤90%
    Remote Control Distance≤100m (open, sunny weather)
    Protection GradeIP54
    Max Boom Length6M

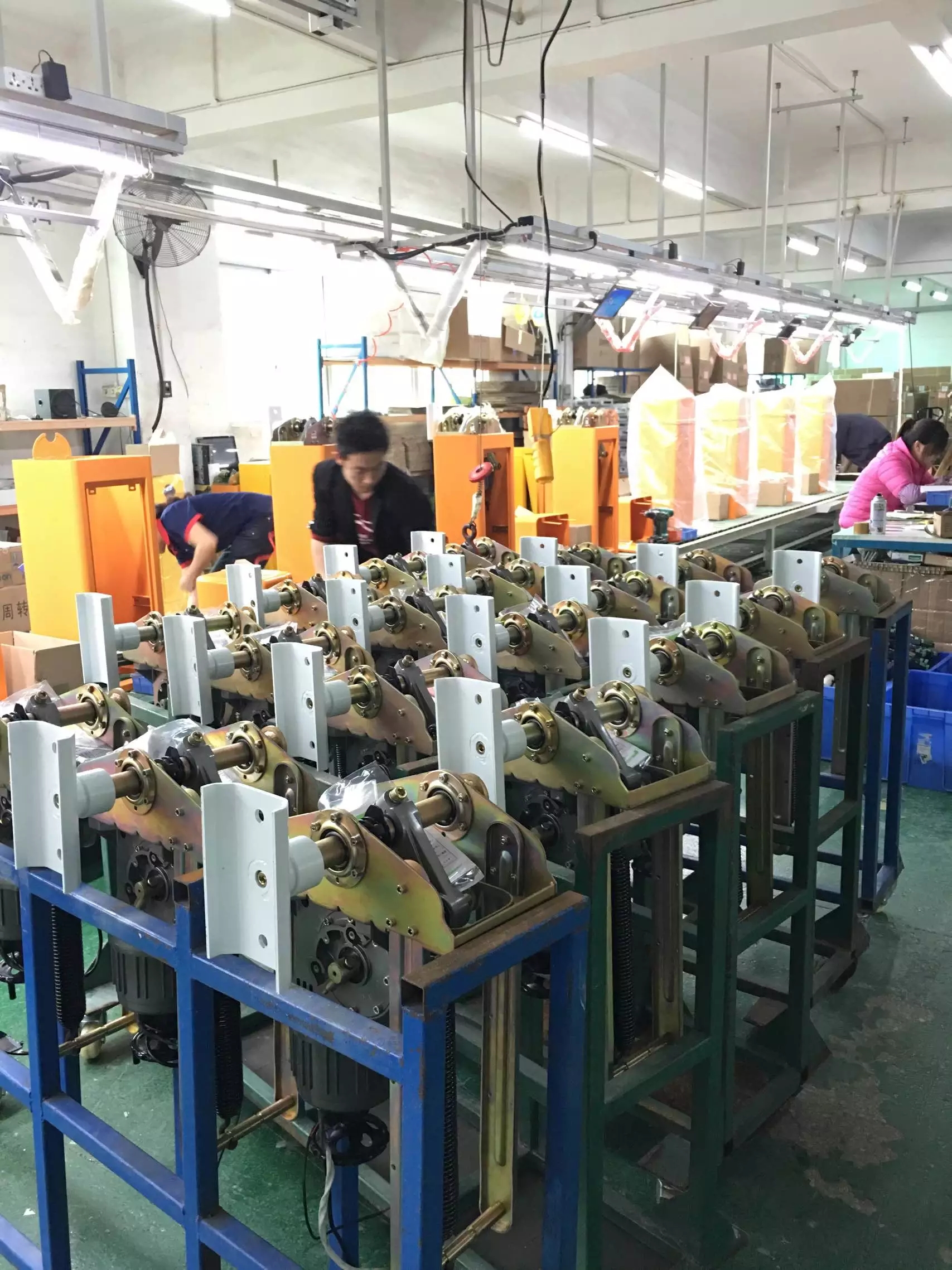

    Production of Automatic Barrier Gate



    PACKING LIST


    1 pcs Vehicle Barrier gate
    1 pcs arm boom (from 1m to 6m can customised)
    1 pcs control panel(built inside)
    2 pcs remote controllers, 1 pc push button
    1 pcs user manual
