K12 Degree Anti terrorism waterproof 5 million MCBF Automatic Rising Bollards

Technical Parameter

1,System:hydraulic system

2,Max passing pressure:Can pass 80-120 tons of container trucks

3,Voltage:AC220V 50Hz Integrated /AC380V Split

4,Power(w):350W Integrated/3.75KW Split

5,Up time:≤3-4S Adjustable

6,Down time:≤3-4S Adjustable

7,Working temperature:-35℃~75℃

8,Storage Environment :-10℃~65℃, Water-proof Damp-proof,Dust-proof.

9,Material :304 stainless steel

10,Rising height:600mm

11,Standard Thickness:6 8,10,12,15,30mm(optional).

12,Diameter:168,219,273mm(optional)

13,Casing size:430*430*1130mm/500*500*900mm

14,Structure :With load-bearing steel beam column, anti-collision steel beam column, 4 navigation rod

15,Integrated electrical mechanism :stroke 600mm,Cylinder outer diameter 60mm,Rod diameter:16mm.

16,6k Mirror tube

17,With LED (Acrylic light circle)

18,Reflective sticker :2 strips

19,Gang-control interface

20,In case of a power outage, the bollards can be manually lowered

TECHNICIAL SPECIFICATIONS:

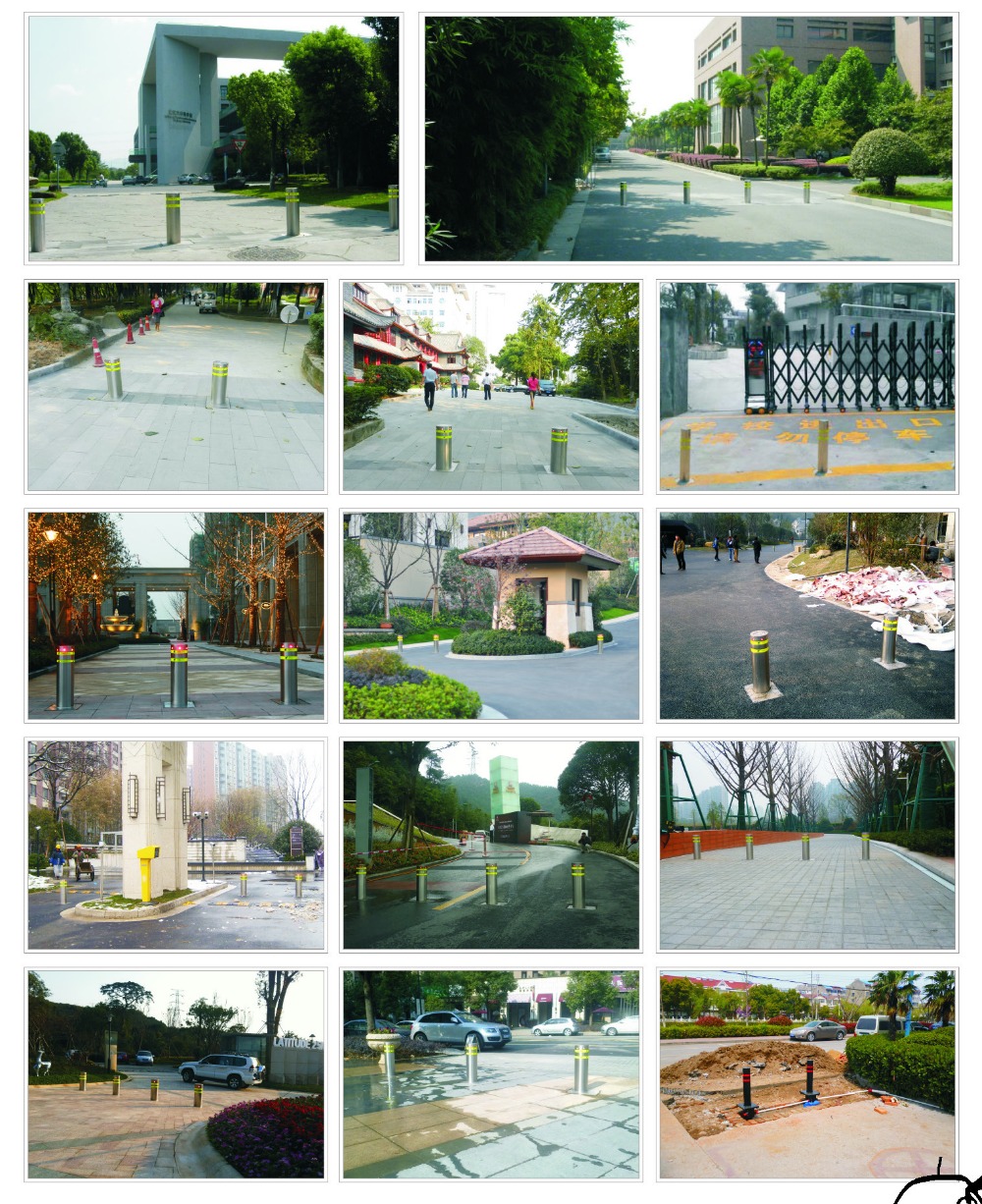

Case reference:

Founded in 2002, SINOMATIC is a national high-tech enterprise specialized in R&D，production, and sales of intelligent access control products. It has nearly 200 patented technologies. Its main products including Access control turnstile, parking barrier gate/parking lock, Automatic gate opener, Anti-terrorism roadblock, etc., are suitable for the entry and exit management of vehicles and personnel such as government building, high-speed toll gate, commercial plaza, residential areas, stations, customs checkpoints, etc.

SINOMATIC has strong innovation and R&D capabilities, ultra-high technology, and craftsmanship, leading the industry into the era of intelligent variable speed interconnection.

As an innovative enterprise, SINOMATIC has always been committed to building an efficient and innovative R&D team to continuously promote technological and product innovation, improve the core competitiveness and market share of the enterprise.

At the same time, SINOMATIC attaches great importance to the construction of the talent team and focuses on introducing and cultivating high-quality R&D personnel in the field of research and development.

Technological innovation, product quality, and manufacturing capabilities are the driving force of SINOMATIC's continuous development. Brand, channels, and after-sales service are the pillars of SINOMATIC's long-term development. SINOMATIC products are sold all over the world. It has set up agency service outlets in more than 150 countries and regions including United States, Canada, UK, France, Germany, Russia, India, Singapore, Malaysia, Indonesia, Thailand, Turkey, Israel, UAE, Saudi Arabia, South Africa Nigeria, Kenya, etc.

With superior product quality and a high-quality after-sales service system, "SINOMATIC" has become a world-renowned brand of Access control products. SINOMATIC always keeps forging ahead, makes every product with hearts, and adheres to build trustworthy SINOMATIC quality and Chinese national brand in the world.
