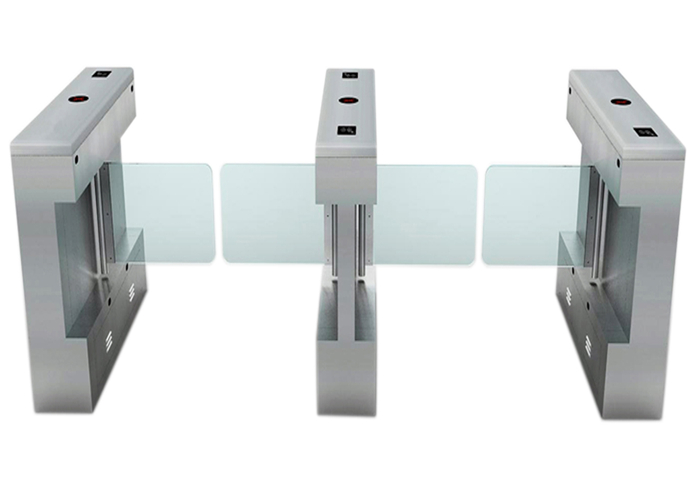

Automatic access control waist high Pedestrian Swing Gate stainless steel with fingerprint reader

Introduction:

The whole product appearance using SUS304 stainless steel plate stamping forming, intelligent swing gate can easily compatible with IC card, ID card, barcode card, fingerprint and other card identification equipment, to provide a civilized, orderly way, effective management of people in and out. Can be widely used in the station, wharf, subway, factories, buildings, intelligent residential, hotels, clubs, enterprises and institutions need to realize the intelligent management of the channel.

This product is divided into: Single Movement: for single channel and multi-channel; dual movement: for multi-channel

Features of Pedestrian Swing Gate:

• Can integrate with various types of access control system.
• Trigger to open by dry contact. Automatic close back after auto timer elapsed. Delay time can be programmed on swing barrier control panel.
• Trigger to open by dry contact (NC) and close by dry contact (NO). This allowed access control reader to control swing barrier opening and closing time.
• Support bi-directional opening
• During power failure, swing barrier will automatically open up to allow free access. When power resume, swing barrier will automatically close back to resume security level.
• Built in clutch that will automatically disengage motor drive from gearbox when the gate is obstructed. Clutch release reduce impact force to minimum in the event that gate closed onto passing users. This also protect the motor and control panel from being damaged due to overload.
• Optional safety IR beam can be added to auto reverse the gate upon detecting obstacle in the passage way. This way the gate is reversed before even hitting user that is still in the passage way. More safety to the user.
• Gate length can be easily customized to fit site requirement.
• Auto synchronized opening when 2 swing barriers are installed for the same passage. Both side will open and close at the same time.
• Gate motor mechanism is self lock at open and close position.

Specifications of Pedestrian Swing Gate:

Worshop:

Founded in 2002, SINOMATIC is a national high-tech enterprise specialized in R&D，production, and sales of intelligent access control products. It has nearly 200 patented technologies. Its main products including Access control turnstile, parking barrier gate/parking lock, Automatic gate opener, Anti-terrorism roadblock, etc., are suitable for the entry and exit management of vehicles and personnel such as government building, high-speed toll gate, commercial plaza, residential areas, stations, customs checkpoints, etc.

SINOMATIC has strong innovation and R&D capabilities, ultra-high technology, and craftsmanship, leading the industry into the era of intelligent variable speed interconnection.

As an innovative enterprise, SINOMATIC has always been committed to building an efficient and innovative R&D team to continuously promote technological and product innovation, improve the core competitiveness and market share of the enterprise.

At the same time, SINOMATIC attaches great importance to the construction of the talent team and focuses on introducing and cultivating high-quality R&D personnel in the field of research and development.

Technological innovation, product quality, and manufacturing capabilities are the driving force of SINOMATIC's continuous development. Brand, channels, and after-sales service are the pillars of SINOMATIC's long-term development. SINOMATIC products are sold all over the world. It has set up agency service outlets in more than 150 countries and regions including United States, Canada, UK, France, Germany, Russia, India, Singapore, Malaysia, Indonesia, Thailand, Turkey, Israel, UAE, Saudi Arabia, South Africa Nigeria, Kenya, etc.

With superior product quality and a high-quality after-sales service system, "SINOMATIC" has become a world-renowned brand of Access control products. SINOMATIC always keeps forging ahead, makes every product with hearts, and adheres to build trustworthy SINOMATIC quality and Chinese national brand in the world.
