Vertical Waist Height Fingerprint Access Control Turnstiles Turn Style Door

SHENZHEN SINOMATIC TECHNOLOGY CO., LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Vertical Waist Height Fingerprint Access Control Turnstiles Turn Style Door from wholesalers

    Buy cheap Vertical Waist Height Fingerprint Access Control Turnstiles Turn Style Door from wholesalers
    • Buy cheap Vertical Waist Height Fingerprint Access Control Turnstiles Turn Style Door from wholesalers
    • Buy cheap Vertical Waist Height Fingerprint Access Control Turnstiles Turn Style Door from wholesalers

    Vertical Waist Height Fingerprint Access Control Turnstiles Turn Style Door

    Ask Lasest Price
    Brand Name : SINOMATIC
    Model Number : SN-TT01
    Certification : CE/ ISO
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 3,000pcs per month
    Delivery Time : 5-10 working days after payment received
    • Product Details
    • Company Profile

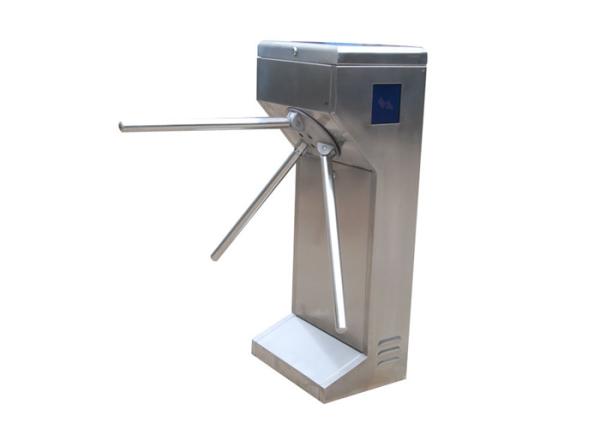

    Vertical Waist Height Fingerprint Access Control Turnstiles Turn Style Door

    Safety access control system vertical waist height gate with fingerprint recognition system


    Introduction of Tripod Turnstile Gate:


    Safety tripod turnstile gate can be used with a variety of access control devices like IC and ID card reader, bar-code scanner, ticket system, face recognition system and so on to make it more security of certain area.


    Applications of Tripod Turnstile Gate:


    Tripod Turnstile is generally used in simple dissuasion level access control of public passages. It is widely used

    in work attendance checking systems of factories, consumption systems of public institutions, access control of

    residential estates, ticket exit systems of scenic, sports and other arenas.


    Features of Tripod Turnstile Gate:

    • Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.
    • If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.
    • Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.
    • Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.
    • Innovative and unique mounting surface ensures simple and convenient installation for system integrator.
    • Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc. (Access controller needed)
    • Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
    • The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.

    Product details of Tripod Turnstile Gate:


    Vertical Waist Height Fingerprint Access Control Turnstiles Turn Style Door


    Specifications of Tripod Turnstile Gate:


    Item

    Specification

    Power supply

    AC220±10%V 50Hz/AC110±10% 60Hz

    Power consumption

    40W

    Access device input voltage

    Dry contact or 12V electrical level signal

    or > 100ms 12V impulse signal, driving current > 10mA

    Motor

    No motor

    Max flow rate

    25 to 30 person per minute

    Arm length

    510mm

    Working temperature

    -20°C~60°C


    Cases of Tripod Turnstile Gate:


    Vertical Waist Height Fingerprint Access Control Turnstiles Turn Style DoorVertical Waist Height Fingerprint Access Control Turnstiles Turn Style Door


    Why choose us:


    1. Our Factory has 13 years OEM/ODM experiences in the line of access control turnstile and barrier.
    2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
    3. We accept OEM/ODM orders to meet the requirements of clients.
    4. Trial order is acceptable. Clients can buy sample and test it before bulk order.

    5. Online technical support makes it carefree to be our business partner.

    6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

    7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
