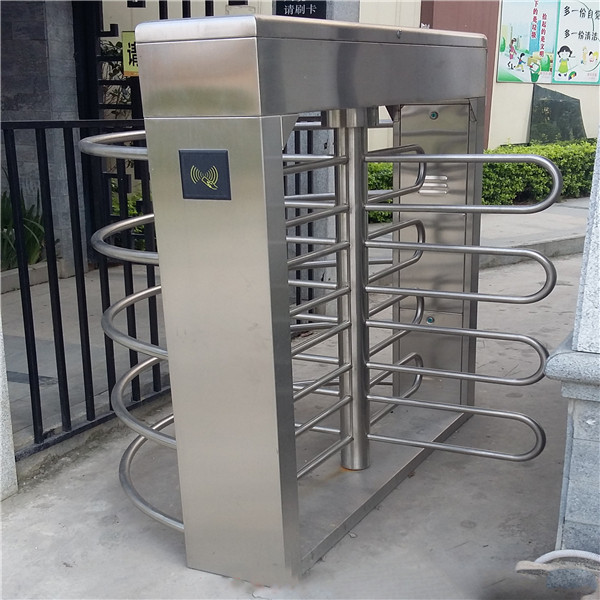

    Indoor / Outdoor Mechanical Half Height Turnstile With Single / Bi-Direction

    Ask Lasest Price
    Brand Name : SINOMATIC
    Model Number : SN-HHT01
    Certification : CE/ ISO
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 3,000pcs per month
    Delivery Time : 5-10 working days after payment received
    • Product Details
    • Company Profile

    Indoor / Outdoor Mechanical Half Height Turnstile With Single / Bi-Direction

    Access Control System 316 stainless steel automatic half height turnstile With Railing


    Introduction of Half Height Turnstile:


    Half height turnstile is a controlling device which is designed to manage the access control and passenger flow.It is widely used in gymnasium,tourist attraction,business building and so on,and is normally installed in the supervision area.It can satisfy different controlling requirements,and can also connect with control devices such as card readers,ticket dispensers,etc.


    Applications of Half Height Turnstile:


    Access to administrative buildings, public authorities and industrial premises

    In entrance foyers to assist reception staff
    Access to company premises outdoors
    Access to areas reserved for members of staff, e.g. laboratories


    Access to sports and leisure facilities
    In the entrance halls to swimming pools, spas or gyms
    Supervised visitor entrances to stadiums, theme parks or concert halls


    Features of Half Height Turnstile:

    • Cabinet is made of 304 or 316 stainless steel.

    • Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.
    • If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.
    • Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.
    • Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.
    • Innovative and unique mounting surface ensures simple and convenient installation for system integrator.
    • Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc. (Access controller needed)
    • Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
    • The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.

    Specifications of half height turnstile


    Item

    Specification

    Power supply

    AC220±10%V 50Hz/AC110±10% 60Hz

    Power consumption

    40W

    Access device input voltage

    Dry contact or 12V electrical level signal

    or > 100ms 12V impulse signal, driving current > 10mA

    Motor

    No motor

    Max flow rate

    25 to 30 person per minute

    Arm length

    400mm to 500mm

    Working temperature

    -20°C~60°C


    Cases of Half Height Turnstile:


    Indoor / Outdoor Mechanical Half Height Turnstile With Single / Bi-Direction


    Why choose us:


    1. Our Factory has 13 years OEM/ODM experiences in the line of access control turnstile and barrier.
    2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
    3. We accept OEM/ODM orders to meet the requirements of clients.
    4. Trial order is acceptable. Clients can buy sample and test it before bulk order.

    5. Online technical support makes it carefree to be our business partner.

    6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

    7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
