    Subway / Railway Speedgate Turnstile 316ss Pedestrian Turnstile

    Ask Lasest Price
    Brand Name : SINOMATIC
    Model Number : SN-FHT02
    Certification : CE/ ISO
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 3,00pcs per month
    Delivery Time : 5-10 working days after payment received
    • Product Details
    • Company Profile

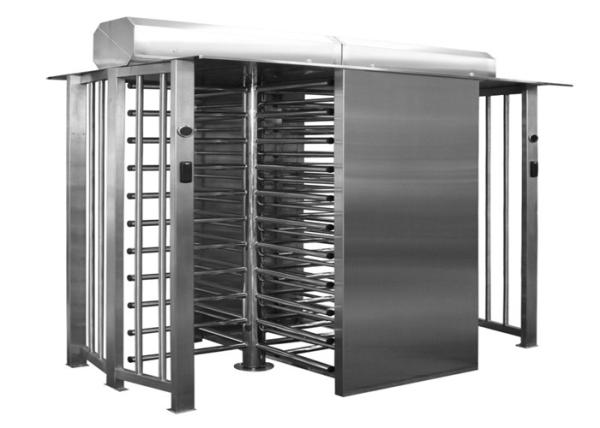

    Subway / Railway Speedgate Turnstile 316ss Pedestrian Turnstile

    316 stainless steel security access control system full height barrier for double lanes crowd control


    Introduction of Full Height Turnstile:


    • When power off, arm will be locked automatically.
    • Self-lock function: arm will be locked automatically after passenger passing.

    Applications of Full Height Turnstile:


    The full height turnstile series are widely used in entrance/exit passsages of:

    Airport, railway station, metro station, bus station, sports center, prison, hotel, hospital, fitness center, factory and so on.


    Features of Full Height Turnstile:


    • Rainproof housing, anti-corrosion coating iron, 304 or 316 stainless steel.

    • Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.
    • If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.
    • Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.
    • Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.
    • Innovative and unique mounting surface ensures simple and convenient installation for system integrator.
    • Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc. (Access controller needed)
    • Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
    • The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.

    Specifications of Tripod Turnstile Gate:


    Item

    Specification

    Power supply

    AC220±10%V 50Hz/AC110±10% 60Hz

    Power consumption

    40W

    Access device input voltage

    Dry contact or 12V electrical level signal

    or > 100ms 12V impulse signal, driving current > 10mA

    Motor

    No motor

    Max flow rate

    25 to 30 person per minute

    Arm length

    500mm to 600mm

    Working temperature

    -20°C~60°C


    Cases of Full Height Turnstile:


    Subway / Railway Speedgate Turnstile 316ss Pedestrian Turnstile


    Why choose us:


    1. Our Factory has 13 years OEM/ODM experiences in the line of access control turnstile and barrier.
    2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
    3. We accept OEM/ODM orders to meet the requirements of clients.
    4. Trial order is acceptable. Clients can buy sample and test it before bulk order.

    5. Online technical support makes it carefree to be our business partner.

    6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

    7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
