    Double Way bi-directional Intelligent 316SS Drop Arm Turnstile Crowd Control System For Airport

    Ask Lasest Price
    Brand Name : SINOMATIC
    Model Number : SN-SB01
    Certification : CE/ ISO
    Price : negotiable
    Payment Terms : T/T or western Union
    Supply Ability : 3,000pcs per month
    Delivery Time : 5-10 working days after payment received
    • Product Details
    • Company Profile

    Double Way bi-directional Intelligent 316SS Drop Arm Turnstile Crowd Control System For Airport

    Double Way bi-directional Intelligent 316SS Drop Arm Turnstile Crowd Control System For Airport


    Introduction of Drop Arm Turnstile:


    1. Running stable, no noise and no mechanical impact

    2. Self-checking-power-on function, if power on, turnstile will auto get to be held.

    3. Various working means can be set in the control panel menu, namely: bi-direction card reading passing, or one direction card reading passing and another passing limits, or one direction card reading passing and another free passing, etc.


    PRODUCT PHOTO



    Applications of Drop Arm Turnstile:


    Can be widely used in the metro station, wharf, subway station, bus station, factories, office building , hotel, clubs, intelligent community, enterprises and institution that need intelligent access management.


    Features of Drop Arm Turnstile:

    • Fault detection and alarm functions, easy to use and maintenance.
    • The running status can be programmed and controlled with the built-in keyboard on the main board.
    • Mechanical antipinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again later.
    • Anti-breakthrough function. The gate is locked automatically until opening signal received.
    • Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
    • Gate can be set as normally open or normally closed.
    • Can be used with variety of access control devices: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed).
    • Direction can be set as single-direction or bi-direction.
    • Gate auto opens when power off and auto close when power on, complying with fire safety requirements.
    • Alarm function, in case of illegal intrusion and reverse intrusion, etc.

    Specifications of Drop Arm Turnstile:


    Item

    Specification

    Power supply

    AC220±10%V 50Hz/AC110±10% 60Hz

    Access device input voltage

    Dry contact or 12V electrical level signal

    or > 100ms 12V impulse signal, driving current > 10mA

    Motor voltage

    DC 24V (brush motor)

    Max flow rate

    25 to 30 person per minute

    Flap opening / closing time

    1s

    Reset time when power on

    3s

    Working temperature

    -20°C~60°C

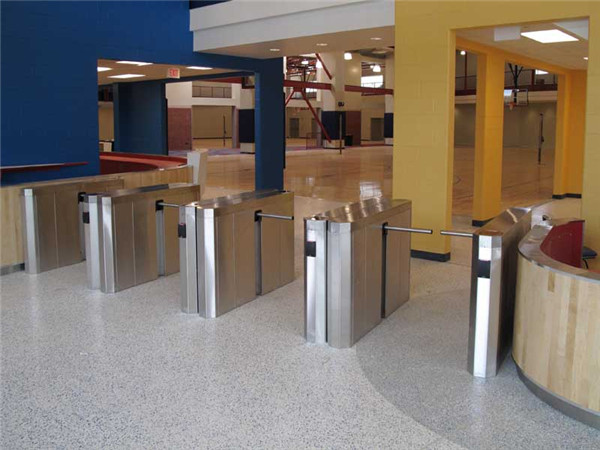

    Cases of Drop Arm Turnstile:


    Double Way bi-directional Intelligent 316SS Drop Arm Turnstile Crowd Control System For Airport


    Why choose us:


    1. Our Factory has 18 years OEM/ODM experiences in the line of access control turnstile and barrier.
    2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
    3. We accept OEM/ODM orders to meet the requirements of clients.
    4. Trial order is acceptable. Clients can buy sample order and test it before bulk order.

    5. Online technical support makes it carefree to be our business partner.

    6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

    7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
