| Product model | SN-BO-219 |
| Material | SS304 |
| Thickness | 6MM ±0.5 |

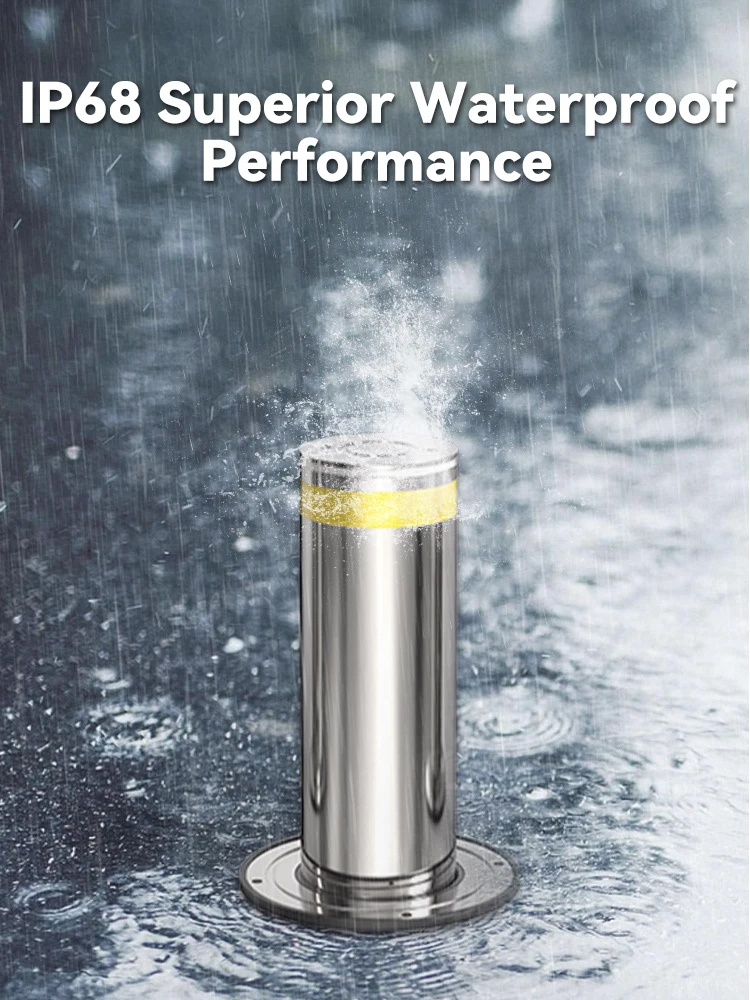

| Waterproof | IP68 |
| Net weight | 60KG |
PRODUCT DESCRIPTION
Hydraulic automatic bollard mainly consists of oil pump unit and steel frame construction. It use soil pressure as dynamic to realize the rise/fall of bollard.As a moving device, it is usually installed at vehicle entrance/exit. It rises to block the vehicle and falls the ground level to authorize free passing.
OUR ADVANTAGES
1. Different thickness of steel is available (default 6 mm)
2. The different color is available
3. Customized size is available
4. Steady and safe due to the OMRON PLC control system
5. Speedy rising time and durable quality with hydraulic pressure
6. Housing with durable and stainless Galvanization
7. Optimization of the frame structure, high anti-impact capability, high loading capability
8. High security and anti-collision ability
9. With a reflective band and a low energy consumption LED light at night
TECHNICIAL SPECIFICATIONS
| Bollard Color | Stainless steel original color |
| Raising/lowering speed | ≤4.5S/ ≤3S |
| Diameter | 219mm |
| raised height | 600-800mm(optional) |
| Material | 304 stainless steel |
| Control mode | Remote control(<50m) |
| system control | Hydraulic and electric control |
| Working temperature | -30℃～+75℃ |
| Embedded cylinder depth | 800mm |
| Lamp belt | LED light (Acrylic light circle) |
| Power Supply | 220V |
| Thickness | 6mm |
| Weight | 60kg |
| Anti-collision levels | K6 |
| service life | 5 million times |
| Drainage mode | Natural drainage+External drainage system |
Automatic bollard features
High security and anti-collision ability
Pneumatic air pump in control cabinet could procide large power safely for a long time.
Electronic control, automatic rise/fall
High system independence
Automatic bollard Reflective band
Various color options for Glossee aveolate reflective band; only need weak light to be clearly visible at night.
Automatic bollard Materials Available
304 stainless steel, 316 stainless steel and carbon steel with electrophoresis spray paint.
Automatic bollard Flange
Anti-skid flange with unique some pattern design. Compatible with various road surface styles. Built-in PA orientation.
Automatic bollard Top cap
Its simple integration design is compatible with all kinds of architectural style. Excellent workmanship is amenable to any close attack.
ABOUT SINOMATIC COMPANY
Founded in 2002, SINOMATIC is a national high-tech enterprise specialized in R&D,production, and sales of intelligent access control products. It has nearly 200 patented technologies. Its main products including Access control turnstile, parking barrier gate/parking lock, Automatic gate opener, Anti-terrorism roadblock, etc., are suitable for the entry and exit management of vehicles and personnel such as government building, high-speed toll gate, commercial plaza, residential areas, stations, customs checkpoints, etc.
SINOMATIC has strong innovation and R&D capabilities, ultra-high technology, and craftsmanship, leading the industry into the era of intelligent variable speed interconnection.
As an innovative enterprise, SINOMATIC has always been committed to building an efficient and innovative R&D team to continuously promote technological and product innovation, improve the core competitiveness and market share of the enterprise.
At the same time, SINOMATIC attaches great importance to the construction of the talent team and focuses on introducing and cultivating high-quality R&D personnel in the field of research and development.
Technological innovation, product quality, and manufacturing capabilities are the driving force of SINOMATIC's continuous development. Brand, channels, and after-sales service are the pillars of SINOMATIC's long-term development. SINOMATIC products are sold all over the world. It has set up agency service outlets in more than 150 countries and regions including United States, Canada, UK, France, Germany, Russia, India, Singapore, Malaysia, Indonesia, Thailand, Turkey, Israel, UAE, Saudi Arabia, South Africa Nigeria, Kenya, etc.
With superior product quality and a high-quality after-sales service system, "SINOMATIC" has become a world-renowned brand of Access control products. SINOMATIC always keeps forging ahead, makes every product with hearts, and adheres to build trustworthy SINOMATIC quality and Chinese national brand in the world.
