PRODUCT DESCRIPTION

Bollards are valuable tools for making roadways, public areas and private properties safer and more secure. Although these barriers may look like simple metal posts and are often easy to overlook, they are crucial when controlling or restricting vehicle access.

Bollards can help direct and control traffic flow so drivers know where and where not to go. They can also protect pedestrians from vehicles that would otherwise run onto a sidewalk or crash into a building. Bollards can also help homeowners limit vehicular access to their driveways.

Bollards come in several types, including solutions designed for permanent barriers and others for temporary use. Automatic retractable security bollards have the unique ability to raise or lower on command in a matter of seconds, making them a flexible protection solution for deployment in heavy-traffic areas. Automatic rising bollards facilitate more efficient traffic flow and increase security by making it easier to control vehicle access to a property or facility. Automatic bollards also provide greater convenience when compared to many other types of bollards.

Working Applications of Automatic Bollards

Automatic bollards are beneficial in any area where access requirements change over time. For example, some commercial locations may need to retract their bollards during the busiest times of the day but keep them raised when closed. A site may also use bollards to block traffic during a special event, including preventing traffic from entering a designated bus lane.

Many organizations are increasingly choosing bollards over lift gates. While some lift gates act solely as a visual deterrent, automatic bollards offer a more durable and substantial blockade for areas that need to restrict access. In addition, bollards are becoming more popular in residential driveways because of their many advantages.

Several specific applications include:

Parking Lots and Garages

When parking lots are full, you need a way to close off entrances temporarily. Automatic bollards offer an excellent solution. Automatic bollards are also a helpful addition to private parking lots where employees or residents who have access can lower the bollards on command.

Automatic bollards work well in these cases because they double as a physical and visual barrier. They can also significantly improve the appearance and aesthetics of locations that use temporary or makeshift roadblocks.

Public Facilities

Automatic bollards are also the perfect solution for securing entrances to public facilities from traffic before and after opening hours. For example, a park, zoo or museum can have automatic bollards in place when closed to the public and have the bollards descend into the ground during open hours.

Bollards also work well in public facilities to separate designated pedestrian spaces from areas allowing vehicle access.

Business Delivery Zones

Businesses that accept deliveries may find automatic bollards especially helpful since they can block off parking lot sections to ensure they are clear for delivery trucks. The automatic bollards can be retracted when the shipment arrives so the truck driver can access the delivery zone.

Bollards with different colors, covers and caps can also help direct delivery drivers toward loading and unloading areas.

Emergency Access Lanes

Any facilities with emergency access areas or fire lanes can use retractable bollards to ensure these zones are kept clear at all times in an emergency. These facilities include banks and government buildings that need protection from high-security bollards with the flexibility of retracting them so emergency vehicles can quickly gain access.

Automatic bollards also work well in the emergency areas of hospitals that designate specific areas for ambulances. Operators can retract the bollards to let vehicles in and raise them to keep traffic out.

Private Driveways

Some homeowners employ gates or other security measures to block their driveway from unauthorized traffic. Automatic bollards are a great option to consider for this purpose. You can quickly and conveniently lower the bollards when you’re pulling into or leaving your driveway and then allow them to ascend again to keep uninvited vehicle access off your property.

Automatic bollards in private driveways also help eliminate vehicle theft. These barriers send a message to thieves that a property is well-protected and decrease the probability of an attempted robbery. Automatic bollards also create a barrier that blocks a thief from driving your car off your driveway.

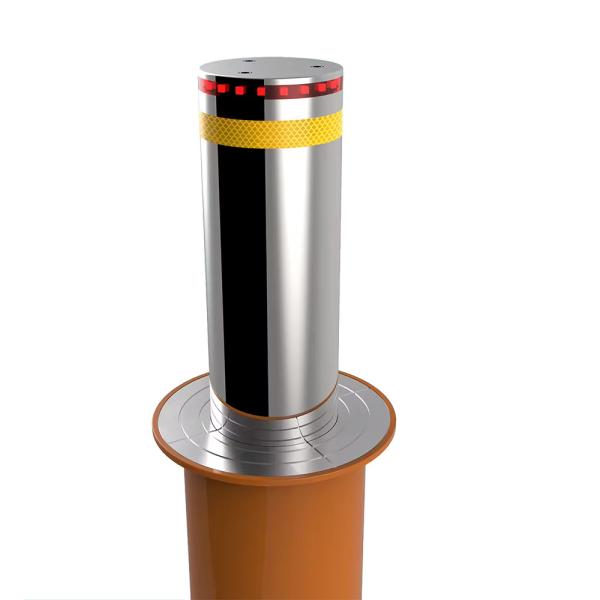

PRODUCT DETAILS

1. System:electric-hydraulic system
2. Max passing pressure: 80T to 120T trucks
3. Power supply:AC220V 50Hz Integrated(AC110V optional)
4. Power(w):300W Integrated
5. Up time:4.5S
6. Down time:3S
7. Working temperature:-30℃~75℃
8. Storage Environment:-10℃~65℃(water-proof, damp-proof,dust-proof)
9. Material:304 stainless steel
10. Rising height:600mm standard, Max. can be 1000mm
11. Bollard Thickness: 6mm standard ( 8mm, 10mm, 12mm, 20mm are optional)
12. Diameter:219mm Standard ( 168mm, 273mm, 324mm are optional)
13. Structure :With load-bearing steel beam column, anti-collision steel beam column, 4 navigation rod
14. Integrated electrical mechanism : stroke 600mm, Cylinder outer diameter 60mm, Rod diameter:16mm.
15. 6k Mirror tube(optional)
16. LED light (optional)
17. Reflective sticker: 1 or 2 strips
18. Link-control interface
19. In case of a power outage, the bollards can be manually lowered down
20. IP rate: IP68
21. Net Weight:60±KG Integrated
22. In rising and falling,reversible operation is available
23. Device running noise≤60decibel
24. Waterproof integrated hydraulic device drive
25. The hydraulic cylinder is double sealed to ensure a waterproof rating
26. Hydraulic drive comes with hydraulic lock
27. PLC programming command control box (chip control box optional)
28. Solenoid valve voltage 24V
29. Remote control distance 50m(Based on the environment)
30. The control box displays text adjustable (Up, Down, Action, Time control is adjustable)
31. Text display with Chinese and English bilingual langague.
32. PLC built-in encryption system
33. Water immersion performance:48 hours without leakage and working well

TECHNICIAL SPECIFICATIONS

Automatic bollard features

High security and anti-collision ability

Pneumatic air pump in control cabinet could procide large power safely for a long time.

Electronic control, automatic rise/fall

High system independence

Automatic bollard Reflective band

Various color options for Glossee aveolate reflective band; only need weak light to be clearly visible at night.

Automatic bollard Materials Available

304 stainless steel, 316 stainless steel and carbon steel with electrophoresis spray paint.

Automatic bollard Flange

Anti-skid flange with unique some pattern design. Compatible with various road surface styles. Built-in PA orientation.

Automatic bollard​ Top cap

Its simple integration design is compatible with all kinds of architectural style. Excellent workmanship is amenable to any close attack.
