Joytech Rapid High Speed 1500w 380v Hand Crank Release Roll Up Door Opener Motor
PRODUCT DESCRIPTION
The high speed rolling door motor and control unit are widely used for various types of high speed fabric & spiral door, included interior roll-up doors, exterior roll-up doors, cold storage doors, food processing doors, cleanroom doors and industry doors etc. They are the best solution for separating critical areas, control environments, improve working conditions, enhancing energy efficiency, control temperatures and high performance.

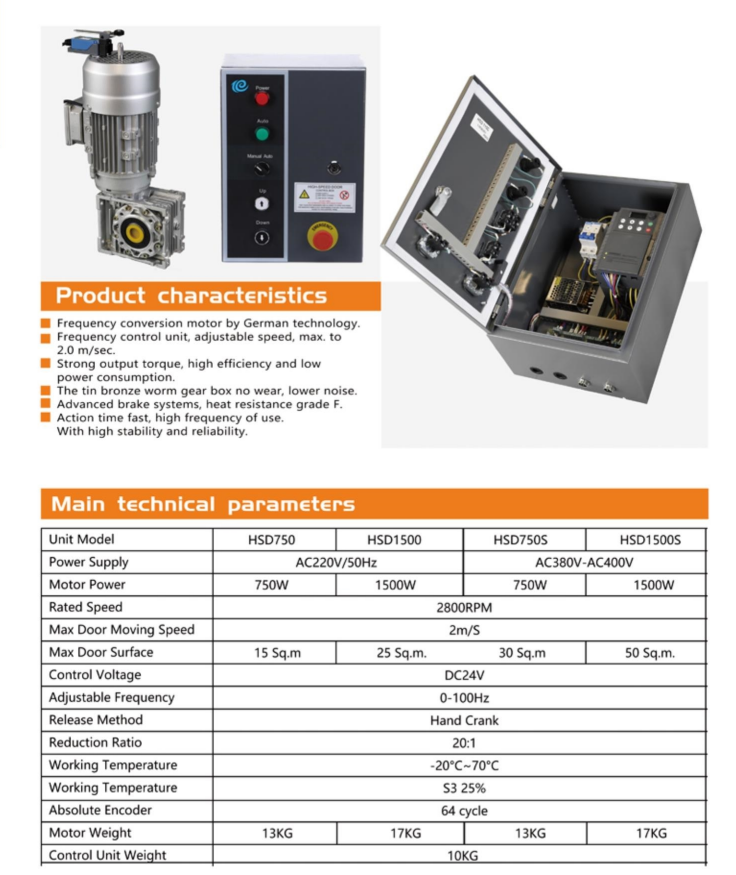

TECHNICAL SPECIFICATIONS
| Model | HSD1500 | HSD1500S |
| Motor protection class | IP54 | IP54 |
| Work duty | S3,25% | S3,25% |
| Controller protection class | IP65 | IP65 |
| Power supply | 220V,50Hz | 380V,50Hz |
| Motor power | 1500W | 1500W |
| Rated speed | 2800rpm | 2800rpm |
| Rated current | 6A | 3.7A |
| Standard reduction ratio | 20:1 | 20:1 |
| Max. door moving speed | 2m/s | 2m/s |
| Max. door surface | 25㎡ | 50㎡ |
| Frequency converter | 220V, 2.2KW | 380V, 2.2KW |
| Control voltage | DC24V | DC24V |
| Adjustable frequency | 0-100Hz | 0-100Hz |
| Absolute encoder | 64 cycles | 64 cycles |
| Release method | Hand crank | Hand crank |
| Environmental temperature | -20℃―+50℃ | -20℃―+50℃ |
| Motor size | 240X160X470 mm |
| Motor weight | 15Kg |
| Control box size | 390X280X180 mm |
| Control box weight | 9.25kg |
MAIN FUNCTION AND FEATURES
Frequency conversion motor by German technology.
Frequency control unit, adjustable speed, max. to 2.0m/sec.
Strong output torque, high effiency and low power consumption.
The tin bronze worm gear box, no wear, lower noise.
Advanced brake systems, heat resistance grade F.
Action time fast, high frequency of use.
With high stability and reliability.
DEFAULT PACKING LIST
Gate Motor *1pc
Encoder*1pc
Control box with control board inside*1pc
Manual release spanner*1pc
Mechnical limit switch*1pc
User manual*1pc
Mounting bracket*1pc
Our service
| | 1. Only original and genuine products. 2. We offer replacement for defective items. 3. Regularly12 month warranty. |
| | 1. Regularly questions will be responded positively within 24 hours except holidays.
2. OEM acceptable. Customized as your requirements. |
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* Welcome to visit our company at any time.
After-Sales Service
* Technical Support all the time.
Warranty: one year. Free replacement will be sent in your next order.
FAQ
| 1.What's your best price ? |
| The price is depend on your order quantity,Regularly our price is 3%~10% lower than other supplier for most items,under the condition of using the same original material.we sincerely hope to develop mutual-beneficial business with you. |
| 2.How can I get samples? Is that for free? |
You can contact us by trademanager or send us an inquiry by email on the bottom of the product description page.Regularly we will reply within 12 hours. No,the samples need to pay. and you will also need to take charge of courier freight. |
| 3.Any certificate? |
| yes,CE & Iso9001:2008 |
| 4.How to order? |
STEP 1 - Please send us an inquiry and advise your requirements,such as :material,model,quantity,color and other necessary details.and plsease provide the company name and address at the same time. STEP 2 - You will received the best price based on your quantity. STEP 3 - The preforma invoice will be send to your email if the price and other details are confirmed. STEP 4 - Make down the prepayment or full payment,then we will arrange the production.balance need to be paid before shipping. STEP 5 - We take the photos for your reference,make relevant documents,keep tracking of the shipping until they reach you safely. |
Before installation, please read the blow
Safety precautions
★ Open the box to check whether the product is in perfect condition before installation. Please contact the dealer if there is any product defect.
★ Please read this instruction book carefully before installation, to avoid damages caused by improper installation.
★ Please ensure that the door is fixed firmly and has good balance, that there is no clamping stagnation, and that all components have no foreign matters before installation. Moreover, the axial length and mounting hole should be reserved according to this manual.
★ Wiring and debugging of control box should be conducted by professionals. Otherwise, personal injury and property loss might be caused.
★ Please re-examine whether the power line meets requirements for this machine, and whether the interfaces and wires are fixed, contact-free and interference-free before the power supply is connected.
★ Please confirm that there is no obstacle within the operation scope of the door. Pedestrians and vehicles are forbidden.
★ Maintenance of this product should be conducted by professionals. Please cut off the power supply before maintenance work.
