    79GHz Serial Port Bluetooth Debugging Mobile App Radar Detector Sensor For Boom Barrier

    Ask Lasest Price
    Brand Name : SINOMATIC
    Model Number : ITS-AX2
    Certification : CE
    Price : US$65~US$75
    Payment Terms : T/T, Western Union, MoneyGram, Ali Pay, L/C, D/A, D/P
    Supply Ability : 3000 pcs per month
    Delivery Time : 3-7 working days
    • Product Details
    • Company Profile

    79GHz Serial Port Bluetooth Debugging Mobile App Radar Detector Sensor For Boom Barrier

    PRODUCT DESCRIPTION


    ITS-AX2 barrier gate control radar is developed for the entrance and exit management of parking lots or underground garages. It can precisely control the rising and falling of the gate rod by cooperating with the main control board of the gate control system, which could effectively avoid the "accidental injury" of the gate rod to the passing vehicles or pedestrians in the radar field of view,and realize intelligent anti smashing.


    ITS-AX2 radar adopts the highly integrated RF chip SOC scheme, which has the characteristics of small size, low cost, all-weather working capability, high detection sensitivity, high precision, easy to debug&installation, very good stability and reliability.


    The working frequency of the radar is 79GHz, with Linear Frequency Modulation and Continous Waveform, which makes the available bandwidth up to 4GHz. The range resolution is up to 4cm, and ranging accuracy is better than 2cm. The radar antenna adopts multiple transmitting and multiple receiving design that enables the radar good angular resolution and high angle measuring accuracy. The onboard signal processing and control unit apply the DSP&arm dual core architecture. Through the joint optimization design of software and hardware, this product can accurately identify and distinguish the pedestrian, vehicle and other targets passing through the brake lever area, and avoid the phenomena of "smashing the vehicle", "smashing the person" and "not dropping the lever"


    PRODUCT SPECIFICATIONS


    ParameterValue
    Input Voltage(Volts)10V~16V
    Working temperature-40℃ ~+85℃
    Power< 2.5W
    Protection gradeIP67
    Connection InterfaceRS485/Bluetooth
    Size(mm)107.5*73.2*18
    Along Road WidthDefault ± 0.5m (configurable within ±1.5m)
    Cross Road RangDefault 3 m (configurable within 6 m)
    Online debuggingSerial Port / Bluetooth Debugging
    Online updateSerial Port / Bluetooth Upgrade
    Application typeAll type of arm barrier booms

    FEATURES

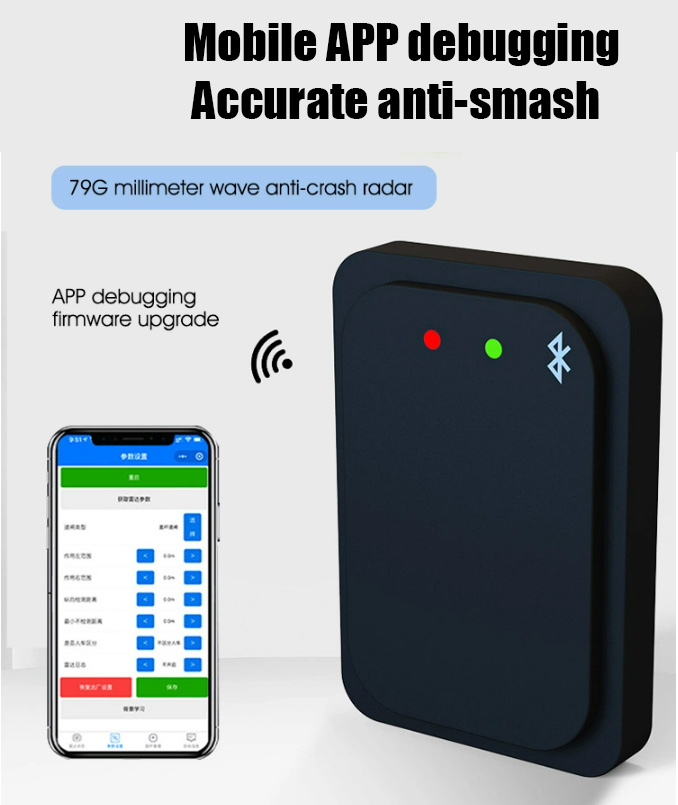

    The appearance of radar is shown in Figure 1. The main features are:


    LED indicators: There are two LED indicators on the surface of the front of radar. The red LED is the power state lamp which will stay on when the power supply is turned on. The green LED is the operating status lamp which will be automatically trigger on when objects detected in the access area and it goes off when there is no objects.


    Detection Zone configuration: The default detection Zone of the radar is 3 meters forward times 0.5 meters on the left and right sides. Different detection areas can be configured via mobile APP or debugging software running on uphost computer.


    onfiguration parameters saving and reload: Configuration such as detection area could be automatically saved, and the latest configuration parameters after power failure and restart will be reloaded


    Firmware upgrade: The firmware can be upgraded online through RS-485 or APP interface with host computer without taking off the cover board and the new firmware can take effect just by restarting the power of radar


    Stable performance: Millimeter wave radar sensing capablity stay nearly the same under different light illuminations, climates such as rain, fog or snow and dust.



    User manual

    ITS-AX2 Barrier gate 79G radar detector user manu...
