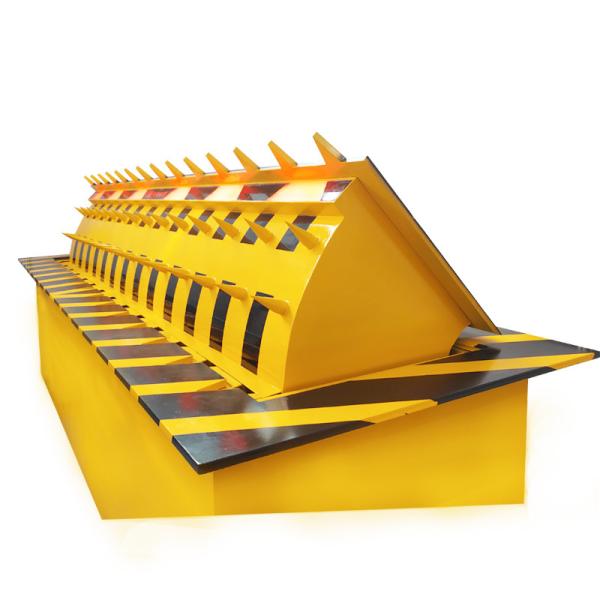

PAS68 Test Entrance Point High Security Anti-Vehicle Attach Hydraulic Road Blocker

PRODUCT DESCRIPTION

SINOMATIC hydraulic road blockers are designed especially for entrance points which have a threat of vehicle attack or for the ones that have high security requirements. If there is a threat of vehicle attack in addition to the control of vehicle access in high security applications, hydraulic road blockers are the unique solution and the most secure systems. Even though the attack is from high tonnage vehicles with high speeds, it s not possible for the vehicle to keep on moving because of the damage given to front, wheels and the bottom of the vehicle.

The drive unit is hydraulic, but in case of power failure, the road blocker can be lowered or lifted manually with the help of manual hand pumps. With the help of PLC controlled electronics, raise/lower function can be achieved by every kind of card readers, biometric readers like fingerprint or hand shape, radio control, on/off key switch etc. Besides, safety accessories like dual vehicle safety loop detectors and red/green lights can be provided as accessories in the system.

OPTIONAL DIMENSION

L2000*W1000*H760,Rising height:500(Customized)
L2500*W1000*H760,Rising height:500(Customized)
L3000*W1000*H760,Rising height:500(Customized)
L3500*W1000*H760,Rising height:500(Customized)
L4000*W1000*H760,Rising height:500(Customized)
L4500*W1000*H760,Rising height:500(Customized)
L5000*W1000*H760,Rising height:500(Customized)
L5500*W1000*H760,Rising height:500(Customized)
L6000*W1000*H760,Rising height:500(Customized)

PRODUCT PARAMETERS

TECHNICIAL SPECIFICATIONS
1. System: hydraulic
2. Voltage: 3 phase 380V(control voltage DC24V)
3. Rising time: 1S to 3S (adjustable)
4. Working temperature: -35℃ to 75℃
5. Material: A3 steel, spay anti-rust paint
6. Weight: ± 1.2Tons
7. The road blocker has a buffer function
8. LED light color: red, blue, green, yellow, purple, white etc.(total 20 colors are available)
9. In case of power outage, the blocker can be manually raised and lowered.
10. Remote control distance: 50 to 100mm (depends on the environment)
11. Device running noise: ≤60 decibel
12. Control solenoid valve :24v

PRODUCT APPLICATION

Embassy, Military Base, Power Stations, Prison and other sensitive area where needs high level security protection.

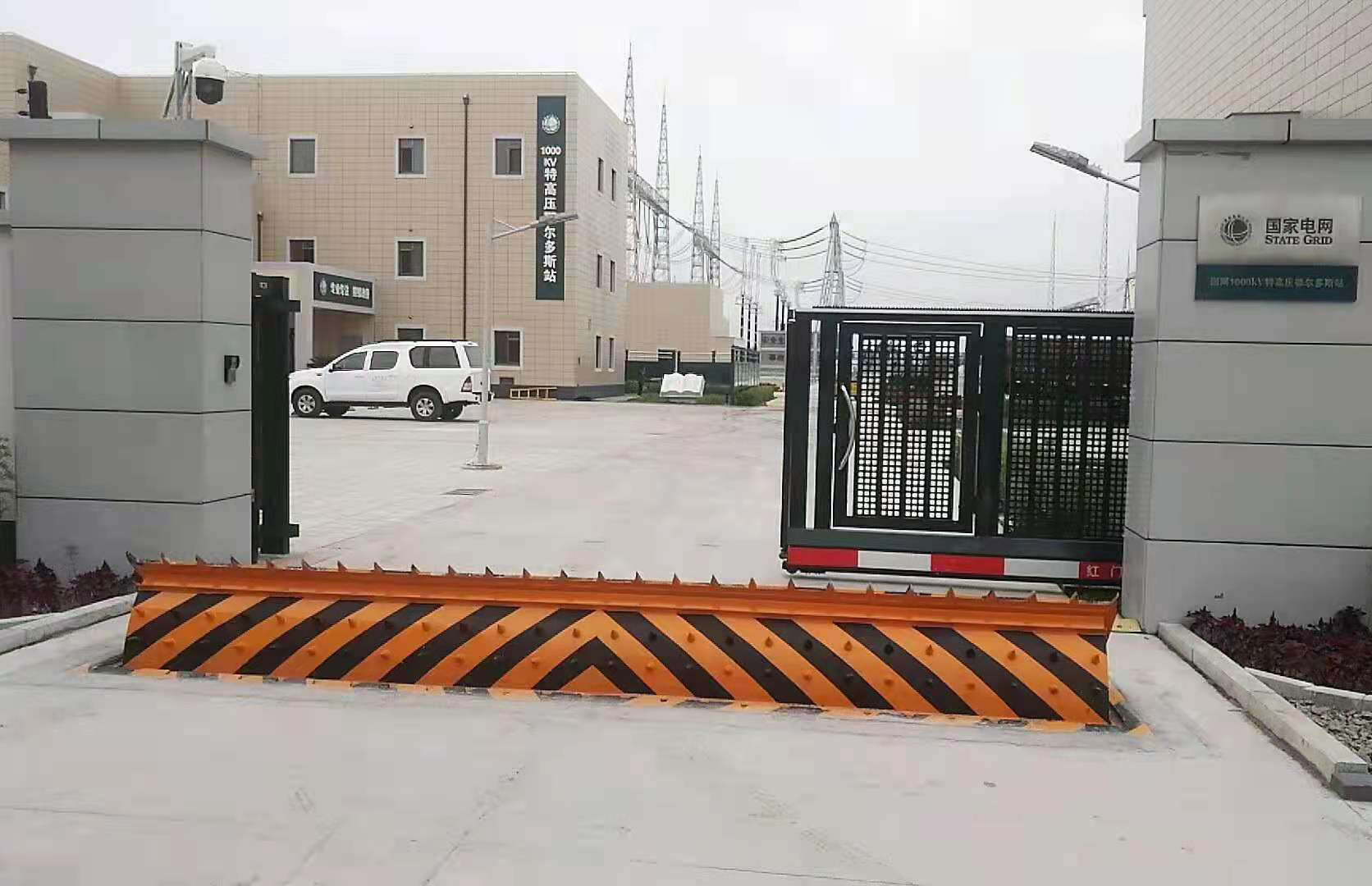

CASE REFERENCE

Professional installation instruction

*Easy-to-install, easy-to-maintain is what we pursue.
*We provide detail & professional installation instruction (in English) to make your construction much easier. With all the technical data, dimension and etc.
*Furthermore, our after-sales service support can also provide remote (via phone call) instruction for free.

FAQ:
Q: Are you trading company or manufacturer?
A: We are manufacturer. Warmly welcome you to visit us on site.

Q: Can I order products without your logo?
A: Sure. OEM service is available as well.

Q: What is the payment term?
A: 30% deposit and 70% before delivery

Q: What is the inco-term?
A: EXW, FOB, CIF, CFR, CPT, DDU, DDP etc.
