    Car Parking Auto Barrier Gate 24V BLDC Brushless Motor Fast Speed Entry Exit Learning Code

    Ask Lasest Price
    Brand Name : SINOMATIC
    Model Number : SN-BG-130
    Certification : CE/ ISO
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1,000 pcs per month
    Delivery Time : 5-10 working days after payment received
    • Product Details
    • Company Profile

    Car Parking Auto Barrier Gate 24V BLDC Brushless Motor Fast Speed Entry Exit Learning Code

    Car Parking 24V BLDC Brushless Motor Fast Speed Entry Exit Learning Code Auto Barrier Gate

    TECHNICIAN SPECIFICATIONS


    Model No.SN-BG-130
    Framework MaterialCold-roll sheet
    Boom materialAluminum alloy
    Dimension of cabinet350*270*935mm
    Net Weight48KG
    Input InterfacePhotocell, loop detector, parking system,wire control
    Input12V relay signal or Pulse Wide>100MS
    Power SupplyDC24V Brushless motor
    Rated Power160W
    Working Temperature-35°C to +85°C
    Relative Humidity≥90%
    MCBF5million time
    Push ButtonSupport
    Remote ControlTwo button remote transmitter, Distance≤100m
    Optional AccessoriesLoop detector; IR photo cell
    Boom Length1M - 6M
    Opening/Close Time1.5sec-6sec


    OUR SERVICE
    1. OEM Brand, Logo, Label available
    2. 1 Year Standard Warranty, excellent after-sales service
    3. 24h*7d at your service give you best support
    4. Detailed installation manual and wiring diagram to make everything be easy
    5. Fast finishing time for you to become more competitive at your local market : 3-5 days for small order.
    MAIN FUNCTION AND FEATURES
    1.The operation speed can be adjusted(1.5 to 6s).
    2.Arm direction can be quickly interchanged.
    3.Barrier gate up &down signal relay switch output.
    4. R&G Traffic light relay switch signal output.
    5. External loop detector signal anti-smashing interface.
    6. Infrared sensor signal anti-smashing interface.
    7. Count mode interface.
    8.Arm swing out function,when the vehicle hit the barrier gate,the arm can be swing out to avoid further damage.
    9. High-sensitivity arm auto reverse function (intensity can be adjusted).
    10. Parking system interface.

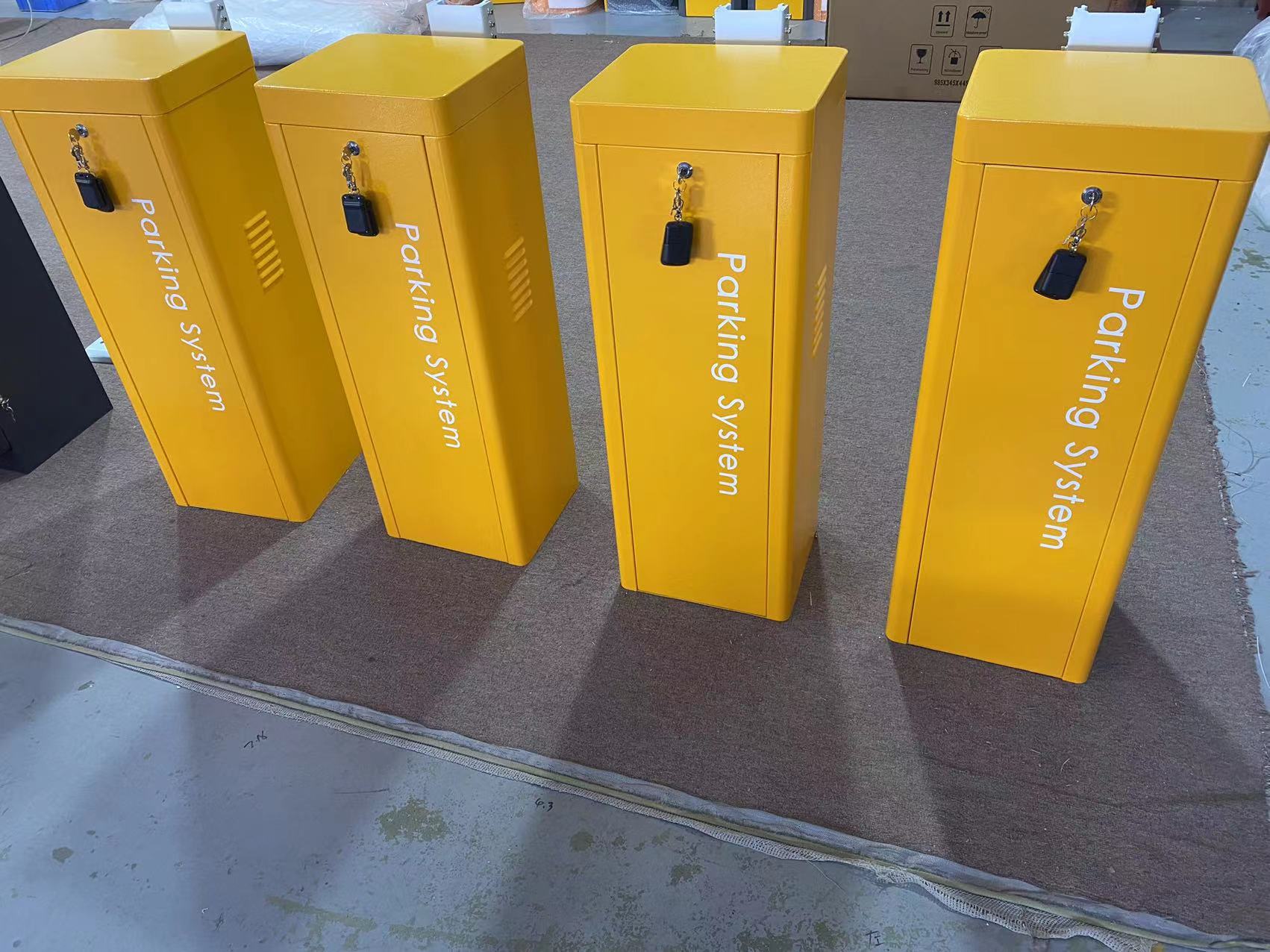

    PRODUCTION PHOTO

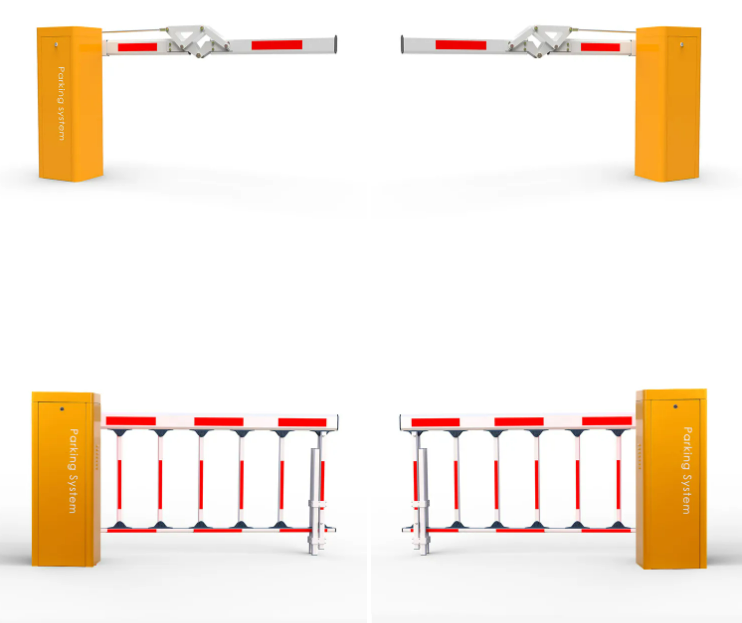

    Parameters of Barrier Arm Type,Length and Operation Speed

    Arm typeArm Length(L)Operation time(S)Height between arm and ground (M)
    Straight arm6m≥L>5m5SH=0.83m, height of arm center from ground level
    5m≥L≥4.5m4S
    4.5m>L≥3m3S
    90°folding armL≤4.5m5S
    180°folding armL≤4m5S
    Two fence arm4.5m≥L≥4m6SH=0.9m,height of arm center from ground level
    4m>L≥3m3S
    Three fence arm5m≥L≥4m6SH=1.5m,height of arm center from ground level
    4m>L≥3m5S

    Each barrier will include:


    1 pcs Vehicle Barrier gate
    1 pcs arm boom (from 1m to 6m can customised)
    1 pcs control panel(built inside)
    2 pcs remote controllers, 1 pc push button
    1 pcs manual book


    PROTECTION OF BOOM ARM

    Anti-collision protects boom arm
    It will protect the boom arm not to be damaged once boom arm was collided by a vehicle
    Safety--- Anti-hit by pressure resistance bounce
    While moving down, boom arm will immediately go back to vertical position once it is obstructed by an imposed force, which protects the vehicle or person not to be hit by boom arm. The sensitivity is adjustable
