    40W 24V RFID Full Height Turnstile Double 600mm Channel

    Ask Lasest Price
    Brand Name : SINOMATIC
    Model Number : SN-FHT02
    Certification : CE/ ISO
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 3,00pcs per month
    Delivery Time : 5-10 working days after payment received
    • Product Details
    • Company Profile

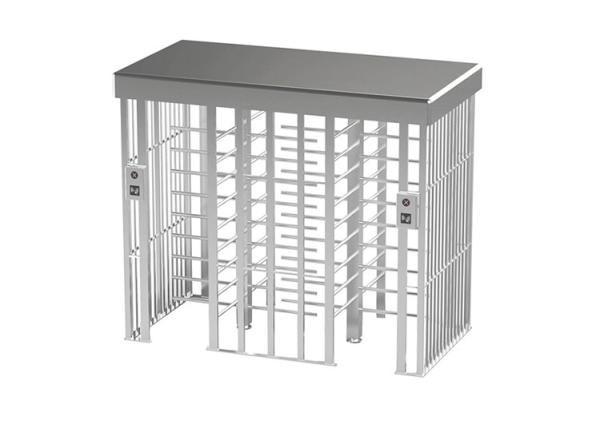

    40W 24V RFID Full Height Turnstile Double 600mm Channel

    Door Access Control Equipment Security Double Channel RFID Full Height Turnstile Gate


    PRODUCT DESCRIPTION


    Robust turnstiles from the SINOMATIC range of automation products are ideal for securing outdoor region of

    the secured premises. Full height turnstiles provide comprehensive visual as well as physical deterrent compared

    to that of half height turnstiles. Tamper-resistant and weatherproof, full height turnstiles offer unmatched reliability

    and have proved to withstand even the most unforgiving environments.


    Basic parameters:


    ITEMSPECIFICATIONS
    Dimensions2300*1370*2300mm
    Cabinet material38 round tube, 1.2mm Mild steel or SS304/316
    Channel width600mm
    Ambient temperature-20 degrees to 60 degrees
    Working environmentindoor and outdoor (outdoor canopy)

    Technical Parameters:

    Input voltage100V~240V
    Driving voltage24V
    Equipment power40W
    Response time0.2S
    Passing speed30 people / min
    Communication distanceLess than 1200m
    Open brake signal inputDry contact
    Switching door timeLess than 1S

    MAIN FUNCTION AND FEATURES


    1) Automatically low noise mechanism core equipped, highly cost-performance


    2) Sense positioning, reducing mechanical impact make lifetime longer


    3) Operating efficiency, 1~2 seconds open & close


    4) Lowest Noise : No matter in operating or outside control, Noise control under 30db


    5) Self-checking and Alarm warning for maintainence


    6) Resetting: System cancel authorized pass if passenger delayed pass


    7) Anti-following : prevent illegal passing


    8) Anti-clamp :The wings will stopped during in external block, the wings reset again after default delay


    9) The rotary wings will be locked automatically if the system do not receive IR signal


    10) Multi-passage for variety application demands , cover 99% needs on earth


    11) Programmable signal separate control : pass time,pass speed etc. parameter


    12) RS232/RS485 interface meet all kind of communications or wireless connection


    13) Compatible with IC/ID card reader, fingerprint reader, face recognition devices.


    14) Long-distance management through COMPUTER


    15) Customize Options: LED display, Voice guide, Warning Lamps, Indicator Lights guide, Audible &Visible Alarm


    APPLICATION


    Suitable for commercial buildings, subways, airports, customs, exhibition halls, government buildings, financial

    institutions, clubs and other high-end indoor applications.
