    AC Motor Switch Sliding Gate Operator 55rpm Magnetic Spring Limit 280W

    Ask Lasest Price
    Brand Name : SINOMATIC
    Model Number : SN-SL600AC
    Certification : CE/ ISO
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1,000 pcs per month
    Delivery Time : 5-10 working days after payment received
    • Product Details
    • Company Profile

    AC Motor Switch Sliding Gate Operator 55rpm Magnetic Spring Limit 280W

    Popular Magnetic/Spring Limit Switch 600 KG Weight AC Gear Motor Sliding Gate Operator


    Optional Accessaries

    • Metal Gear Rack & Nylon Gear Rack are optional, you can order the rack length accordig to your gate length;
    • Photo beam sensor;
    • Keypad systems;
    • Push button;
    • Warning light;
    • Solar panel;
    • Backup batteries;

    TECHNICIAL SPECIFICATIONS

    ModelSL600AC
    Motor Speed55rpm
    Rated Output Power of Motor280W
    Remote Control ModeSingle button
    Output Torque16N.m
    Work DutyS2 15min
    Limit SwitchMagnetic or spring limit switch
    Max. Gate Weight600KG
    Opening Speed13m/min
    Remote Control Range≥30M
    Recording of Up Remote ControlsMax. 25 remote transmitters
    Frequency433.92Hz
    Noise (No Load)≤58dB
    Output Shaft Height46mm
    Working Temperature-20℃~70℃
    Power Supply220V/50Hz(Optional: 110V/60Hz)
    Standard Configuration1 motor, 1 built-in control board, 2 remote controls, 2 keys
    Optional AccessoriesPhotocell, 8mm steel gear rack, alarm wall lamp(20v/220v/110v), wireless keypad, wireless wall button

    MAIN FEATURES


    1. AC motor with built-in control unit


    2. Keypad/single button interface


    3. Alarm lamp, photo beam and safety beam interface


    4. User can select auto-close function


    5. Soft start and slow stop(smart version, optional)


    6. Auto-reverse function when hitting obstacle during closing(smart version, optional)


    7. Manual key release design for emergency power failure


    8. Gear driven with built-in control board.


    9. RF Hopping Code Technology prevents your remote code from being accessible to others.


    10. This powerful sliding gate operator can open gates that are up to 8 meter long and weigh 600KG.


    11. The remote control has 4 buttons, corresponding to open/close/stop.


    12. You can add up to 23 extra remotes that can control this system.


    13. In case of a power outage or an emergency you may also use manual release key.

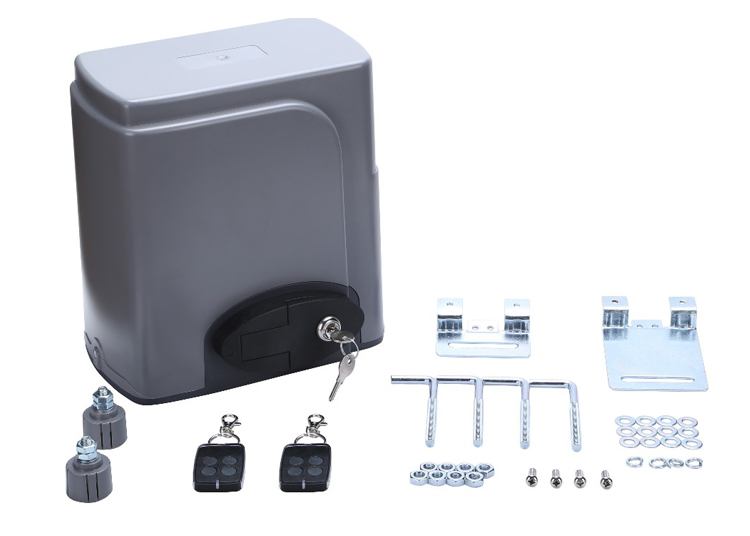

    PACKING LIST



    Installation

    SL600AC sliding gate opener is applicable to gate weight less than 600kg, and length of the sliding
    gate less than 12m. The drive mode adopts the rack and gear transmission. This gate opener must
    be installed inside the enclosure or yard for protection.
    Installation procedures

    Preparation work before installation
    Please make sure that the sliding gate is correctly installed, the gate rail is horizontal, and the gate
    can be manually moved smoothly before installing the gate opener.
    Cable installation
    In order to guarantee the normal operation of the gate opener and protect the cables from damages,
    please bury the motor & power cable and controlling cable separately with two PVC tubes.
    Concrete pedestal
    Please precast a concrete pedestal with the size can be 400mm x 250mm, depth be 200mm in
    advance, so as to firmly install SL600AC gate opener. Please make sure the distance
    between the gate and gate opener is appropriate before casting the pedestal.

    FOR MORE DETAILS, PLEASE CLICK THE BELOW LINK TO DOWNLOAD THE USER MANUAL.


    SL600AC user manual.pdf
