Single Directional Half Height Turnstile Anti Tailing Hydraulic Buffer

SHENZHEN SINOMATIC TECHNOLOGY CO., LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Single Directional Half Height Turnstile Anti Tailing Hydraulic Buffer from wholesalers

    Buy cheap Single Directional Half Height Turnstile Anti Tailing Hydraulic Buffer from wholesalers
    • Buy cheap Single Directional Half Height Turnstile Anti Tailing Hydraulic Buffer from wholesalers
    • Buy cheap Single Directional Half Height Turnstile Anti Tailing Hydraulic Buffer from wholesalers

    Single Directional Half Height Turnstile Anti Tailing Hydraulic Buffer

    Ask Lasest Price
    Brand Name : SINOMATIC
    Model Number : SN-HHT01
    Certification : CE/ ISO
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 3,000pcs per month
    Delivery Time : 5-7working days after payment received for sample
    • Product Details
    • Company Profile

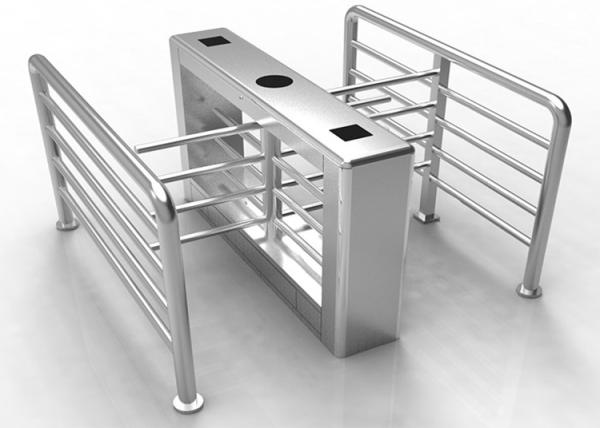

    Single Directional Half Height Turnstile Anti Tailing Hydraulic Buffer

    4 Metal Rods Half Height Blocking Body Mechanical Anti Tailing Design Half Height Barrier Gate


    PRODUCT DESCRIPTION


    Half height turnstile is a kind of pedestrian turnstile gate with only half the height of the blocking body. The blocking

    body of the turnstile gate is generally composed of 3 or 4 metal rods. According to the height of the brocking rod, the

    turnstile gate is divided into full height turnstile and half height turnstile, and the full height turnstile gate is more

    widely used. Half height turnstile adopts a mechanical anti tailing design, which can effectively realize single-person

    traffic, which means, only one person can pass at a time. Compared with the tripod turnstile gate, half height turnstile

    has higher safety and reliability.


    Structural design of half-height turnstile: the blocking rod above the half-height turnstile adopts a removable structural

    design, which is easy to install and transport.


    Advanced and intelligent design


    Half-height turnstile adopts a mechanical anti tailing design to effectively control only one person at a time. The

    advanced mechanical structure is adopted. In standby mode, the blocking rod is locked to prevent the illegal passage

    of pedestrians. When a legal door opening signal is received in one direction, within the allowable passage time,

    pedestrians entering the passage from the opposite direction and pushing the gate rod will be regarded as reverse

    passage, and the blocking rod in this direction will be locked to prevent pedestrians from the reverse passage.


    TECHNICAL SPECIFICATIONS


    ItemSN-HHT01
    Housing Material304 stainless steel
    Standard SizeL1200*W280*H1000(mm)
    Drive mechanismSolenoid mechanism
    Arm Length450mm
    Pass Directionsingle or bi-directional
    Arm Driving Force1kg
    LED Lightdirection indication
    Working mechanism24V solenoid valve
    Working EnvironmentIndoor and Outdoor
    Work temperature-20°C~60°C
    Normal Running LifeMore than 5million
    Input interface12V pulse signal with pulse width >100ms, drive current >10mA

    MAIN FUNCTION AND FEATURES


    1. The whole system runs smoothly, long-life performance, high operation dependability and fast response.


    2. The mechanism is equipped with an automatic regulated hydraulic buffer device. No noise and impact when

    running.


    3. Self-test function, when power on, system restoration automatic.


    4. Dual-bearing device, keeping the gate in balance when there is external force.


    5. Single directional or Bi-directional is selectable.


    6. LED indicator supported


    7. Automatic reset function: when Full Height Turnstile receives an open single, but passenger do not pass

    through the hallway within a specific time (default 5s), turnstile arm will lock automatically. Limit passing time

    (01-60 seconds), passing time can be set on Full Height Turnstile circuit board.


    8. When power off, turnstile lane will be free to pass, complying with fire safety requirements.


    9. The rotary wings will be locked automatically if the system do not receive IR signal


    10. Multi-passage for variety application demands ,Cover 99% needs on earth


    11. Programmable signal separate control : pass time,pass speed etc. parameters



    OUR SERVICE


    1. Any inquiries will be replied within 24 hours
    2. Professional maufacturer. Welcome to visit our factory.
    3. OEM/ODM available
    4.You can have your own fashionable design at reasonable& competitive price
    5. High quality:
    1.) All products are stictly checked in warehouse before packing
    2.) All products are well-packed before shipping
    3.) All products have at least 1 year warranty
    6.Payment:
    T/T, Western Union, Moneygram can be accepted
    7. short lead time:
    Sample order in stock, and 3--7 days for bulk production
    8. Shipping:
    Cooperate well with DHL, EMS, UPS, FEDEX, China Air Post
    You can also choose your own shipping forwarder
