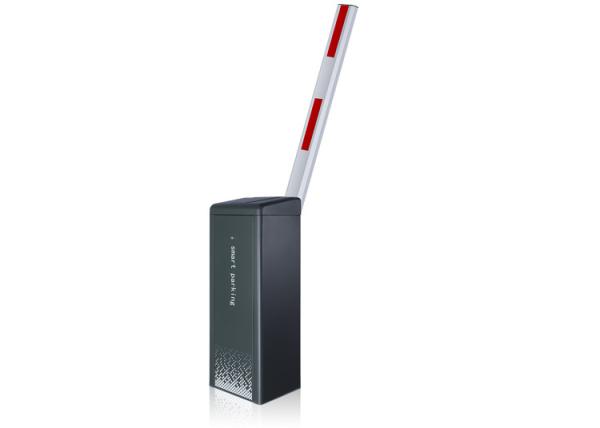

SUS304 stainless steel longest straight arm barrier gate for big vehicle

PRODUCT DESCRPTION

The product consists of five parts: cabinet cap, cabinet body, transmission mechanism, control unit, and boom.

It distinguishes between left and right machines and is used in parking lot entrance and exit control systems.

The barrier boom is divided into three types: straight boom barrier, folding boom barrier and fence boom barrier.

Technical Data

1. Working temperature (motor): -35°C〜+ 80eC

2. Power supply input voltage: AC110-120Y or AC200~240V

3. Controller input voltage: DC24V±10%, 10A

4. Motor power: 200W MAX

5. Relative Humidity: 30%~80%, No condensation

6. Distance of remote control: L>30M

7. Insulation grade: F

DC Brushless Barrier Gate SN-DZE-BL

• It can be equipped with SN-DZE-BL(1.5-6s) mechanism
• Left-installation and right-installation can be exchanged (Optional)
• Alarm against abnormal lifting boom
• Support 24-hour continuous operation without heating protection
• Speed will reduce when the boom moves to the limited position
• RS485 communication, TCP/IP network port

Functions & Features

1. Driven by DC brushless motor, equipped with movable connecting rod transmission mechanism and balance spring,

stable and reliable operation. Motor life cycle up to 2,500,000 times or more, and spring life cycle up to 500,000 times.

2. Built-in delay auto-closing and reverse on an obstacle in case of resistance.

3. Support infrared photocell, loop detector, and external radar, and built-in DC12V power output.

4. Standard fitting with 433MHZ learning code remote control, convenient and quick to add configuration.

5. When power off, the barrier gate can still work by adding 2 external DC12V batteries. And battery charging module is

optional, when power on, the battery will automatically charge.

6. Holes are available to fix the articulated or fence boom, and multiple boom types on one machine can be easily changed.

TECHNICIAL SPECIFICATIONS
