Professional Design Used Home Automation Spring Limit Switch Sliding Gate Operator

TECHNICIAL SPECIFICATIONS

Overview

This is a conventional sliding gate operator,with brand-new design,brand-newclutch structure,fashionable exterior

design and brand-new control technique,making the motor more numanistic.

Furthermore.the integrated electromechanicaldesign and the streamlinedappearancealso make our product look

more fashionable and elegant.

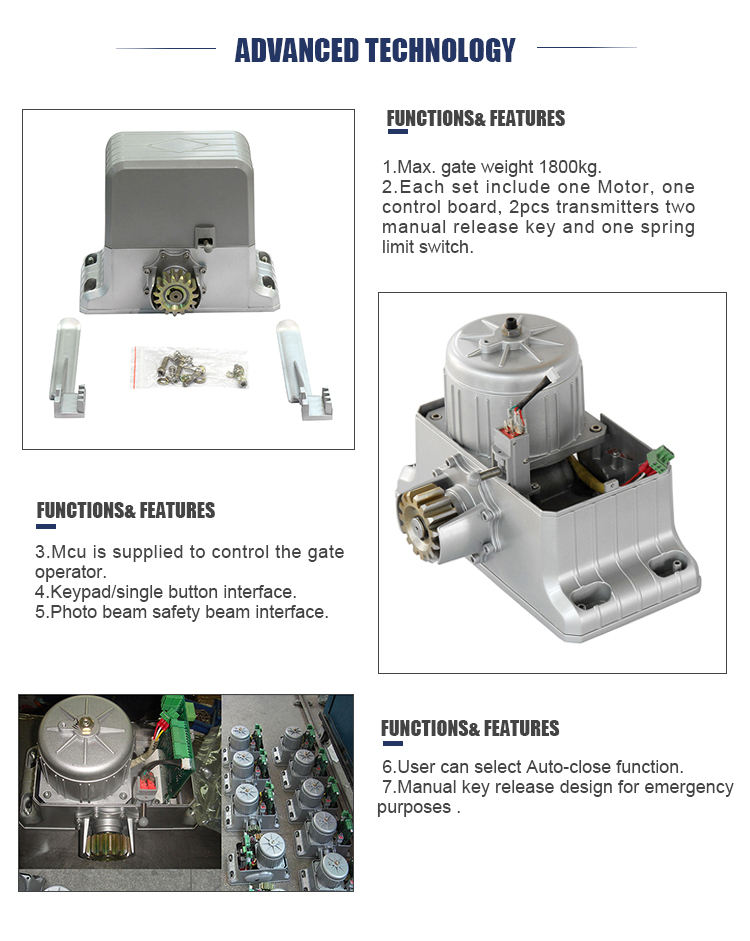

FUNCTIONS AND FEATURES

1) Integrated mechanical and eletrical,all functions on one controller

2) Radio controller or linesto control open,close and stop functions

3) Magenetic limit switch,the door stops when it moves to the limit

4) Accurate limit braking

5) Electronic soft-start

6) Dialing switches to adjust the motor rotation in both directions

7) Open and close limits have a self-locking function

8) Intelligent operation-if an obstacle is detected when the door is closing,it will reverse to open,then after 10 seconds

it attempts to close automatically unless you press the stop key-stroke.

9) Movement indication-the indicator lights up when the door is moving.

10) Optional line control or remote control

PACKING LIST

OUR SERVICE

1.One year maintenance services provided free ofcharge
2.Life-long repairing with charge offered.
3.Technical support.

The following situations are charge for repairing.

l) Broken by wronglyinstalled.
2) The supply power is not stable and over the specific voltage or broken by not using the standard electricity power ofthe country

3)The gate operator is broken by wronglyusing.

4)The gate operator is broken by natural disaster.

Notice
1. The working voltage is 10% of the rated voltage, use power regulator if in area of volatile supply voltage.

2. The gear modulus:M=4Gearscalar:Z=15.Please use the correspondent rack.

3)The gate should be balanceable and level.So the gear and rack can fix well.

4)The gap between gears should be figured right so the gate operator can move smoothly.

5)The rail should be embedded right.The wheelofthe gate should be right and installed well. These are key points for the gate running well.

Adjust the bolts which can make the gate operator up or down to make the gear fit the rack well.Make sure that the gate can be moved by

an adult when the clutch is opened.

6)Make sure the running direction ofthe gate operator.The limit iron should be fixed at the right position,otherwise limit doesn't work and then

the motor will be stocked and out of control
