    Yellow Color Housing DC Brushless Motor Parking Smart Barrier Gate

    Ask Lasest Price
    Brand Name : SINOMATIC
    Model Number : SN-DZE-BL
    Certification : CE/ ISO
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 3,000pcs per month
    Delivery Time : 5-10 working days after payment received
    • Product Details
    • Company Profile

    Yellow Color Housing DC Brushless Motor Parking Smart Barrier Gate

    Yellow Color Housing DC Brushless Motor Car Parking Smart Barrier Gate


    Technicial specifications


    ITEM
    Specifications
    Product name
    DC Brushless Motor
    Speed range
    1.5~6(s)
    Pole length
    3m-6m
    Power supply input voltage
    AC110~120V, or AC200~240V
    Controller input voltage
    DC24V±10%, 10A
    Motor rated Power
    200W MAX
    Distance of remote control
    L≥30M
    Working temperature (motor)
    -35℃~ + 80℃

    Functions & Features


    1. Driven by DC brushless motor, equipped with movable connecting rod transmission mechanism and balance spring, stable and reliable operation. Motor life cycle up to 2,500,000 times or more, and spring life cycle up to 500,000 times.


    2. Built-in delay auto-closing and reverse on an obstacle in case of resistance.


    3. Support infrared photocell, loop detector, and external radar, and built-in DC12V power output.


    4. Standard fitting with 433MHZ learning code remote control, convenient and quick to add configuration.


    5. When power off, the barrier gate can still work by adding 2 external DC12V batteries. And battery charging module is optional, when power on, the battery will automatically charge.


    6. Holes are available to fix the articulated or fence boom, and multiple boom types on one machine can be easily changed.

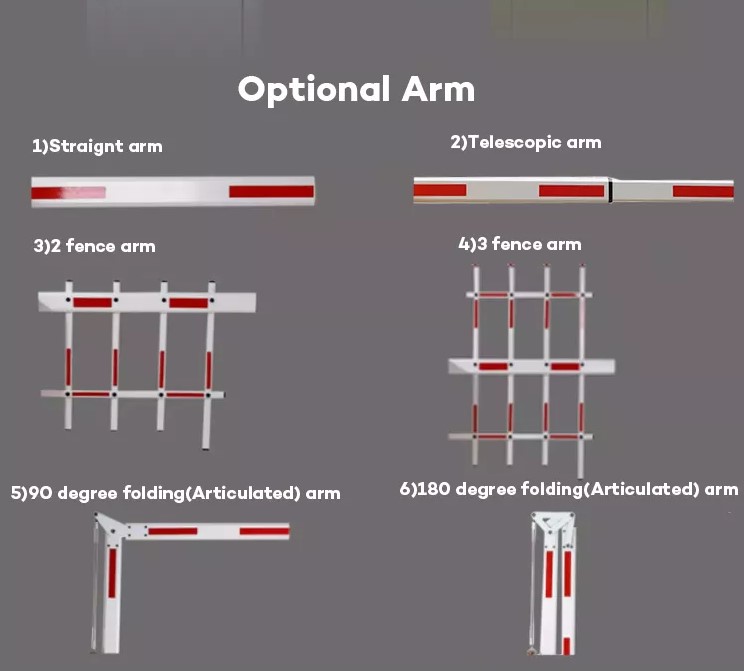

    Boom type and speed


    Type
    Description ( Boom length = L, Seconds=S )
    Barrier Gate with Straight Boom
    ..................L≤3M, up speed 1.5S
    ..................L≤4M, up speed 3S.
    ..................L≤4.5M, up speed 4S
    ..................L≤5M, up speed 5S.
    ..................L≤5.5M, up speed 6S.
    Barrier Gate with Folding Boom
    ..................L≤3M, up speed 3S.
    ..................L≤4M, up speed 4S.
    ..................L≤5M, up speed 6S
    Barrier Gate with Fence Boom
    ..................Two-levels, L≤3M, up speed 4S.
    ..................Two-levels, L≤3.5M, up speed 5S.
    ..................Two-levels, L≤4.5M, up speed 6S.
    ..................Three-levels, L≤3M, up speed 5S.
    ..................Three-levels, L≤4M, up speed 6S.

    FAQ


    1. Are you a Trade company or manufacturer for barrier gate ?
    -------- We are a manufacturer , welcome to visit our factory , and welcome OEM products.


    2. Sometimes, Why the barrier boom would open automatically? -------- Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.


    3. How long the Remote-control distance ? -------- In general, most of 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. We recommends using the remote control within 30 meters or 50 meters.


    4. Can the barrier gate be used outdoors, even in extreme weathers? -------- Yes, the working temperature is -40℃~+75℃.


    5. Is it changeable for the installation direction of the barrier gates? -------- Usually Our DC motor barrier gate can realize this funtions.
