    24VDC Motor Auto Sliding Gate Opener 300kg Electronic Limit Switch Built In Backup Battery

    Ask Lasest Price
    Brand Name : SINOMATIC
    Model Number : SN-PY300DC
    Certification : CE/ ISO
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1,00 pcs per month
    Delivery Time : 5-10 working days after payment received
    • Product Details
    • Company Profile

    24VDC Motor Auto Sliding Gate Opener 300kg Electronic Limit Switch Built In Backup Battery

    24V DC Motor Built in Backup Battery 300kg Gate Weight Electronic limit switch Auto Sliding Gate Operator


    Product description


    The PY300DC gate opener designed for residential use, weight up to 300 Kg and operating distance up to 8 meters. The drive mode adopts the rack and gear transmission. This gate opener must be installed inside the enclosure or yard for protection.


    Main technical parameters


    Unit Model
    SN-PY300DC
    Power Supply
    220V,50Hz;110V,60Hz
    Max. Gate Weight
    300KG
    Motor Power
    DC24V,100W
    Gate Moving Speed
    13 m/min
    Limit Switch
    Electronic limit switch
    Recording of up Remotes
    25
    Decoding / Frequency
    Rolling code / 433.92MHz
    Work Duty
    S2 20min
    Noise
    ≤60dB
    Work Temperature
    -20°C~70°C
    Gross Weight
    12 KG

    Main Features

    • Brushed aluminum shell, novel appearance.
    • DC24V motor with built-in control unit.
    • Built-in backup battery.
    • Solar system compatible.(optional)
    • Keypad / single button interface.(optional)
    • Alarm lamp, photo beam & safety beam interface.(optional)
    • User can select auto-close function.(optional)
    • Soft start and slow stop.(optional)
    • Manual key release design for emergency purposes.

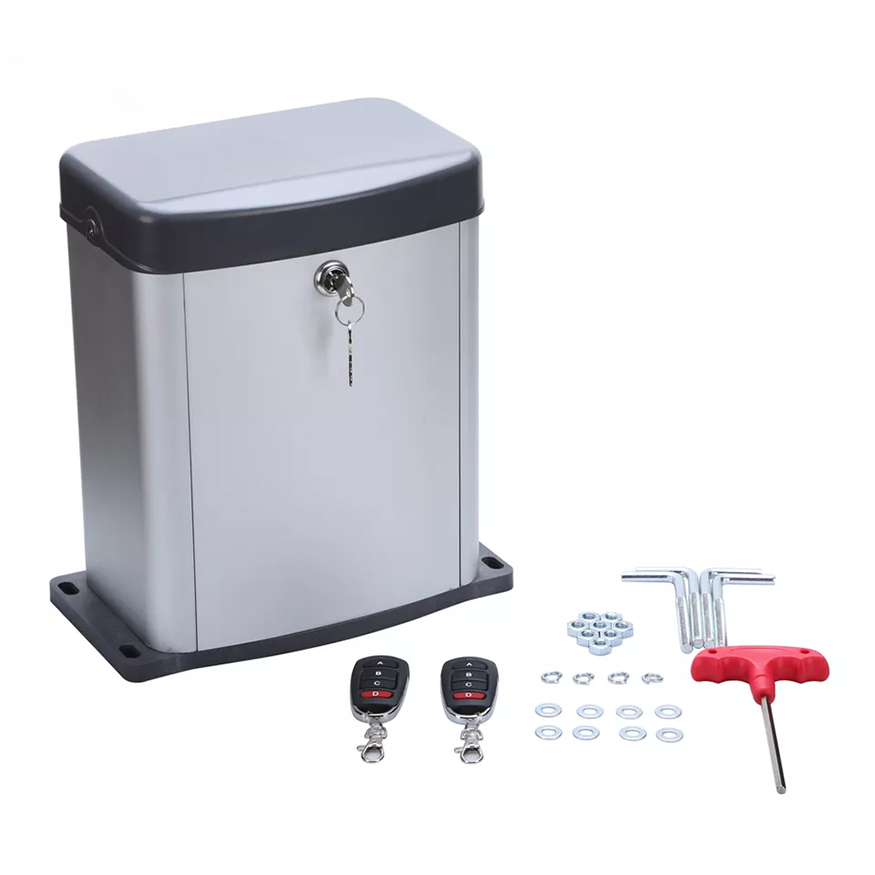

    Standard Unit

    • gate motor
    • control board & box
    • 2 remote controls
    • manual release key
    • user manual
    • bolts & nuts

    Installation
    PY300DC sliding gate opener is applicable to gate weight less than 300kg, and length of the sliding gate less than 8m. The drive mode adopts the rack and gear transmission. This gate opener must be installed inside the enclosure or yard for protection.


    Preparation work before installation

    Please make sure that the sliding gate is correctly installed, the gate rail is horizontal, and the gate can be manually moved smoothly before installing the gate opener.


    Cable installation

    In order to guarantee the normal operation of the gate opener and protect the cables from damages, please bury the motor & power cable and controlling cable separately with two PVC tubes.


    Concrete pedestal

    Please precast a concrete pedestal with the size can be 400mm x 250mm, depth be 200mm in advance, so as to firmly install PY300DC gate opener. Please make sure the distance between the gate and gate opener is appropriate before casting the pedestal.


    For more info, please refer to the below user manual

    PY300DC user manual.pdf
