    Non Contact Radar Vehicle Detector 24Ghz Black Color Adjustable Sensitivity

    Ask Lasest Price
    Brand Name : SINOMATIC
    Model Number : TRD-201
    Certification : CE
    Price : US$35~US$45
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 3000 pcs per month
    Delivery Time : 3-7 working days
    • Product Details
    • Company Profile

    Non Contact Radar Vehicle Detector 24Ghz Black Color Adjustable Sensitivity

    Shenzhen Sinomatic Factory Direct Sale Black Color Non-Contact Detection Radar Detector


    Shenzhen Sinomatic Radar Vehicle Detector is a non-contact detection device for targets such as vehicles and pedestrians. It works in the millimeter wave band. The radar detector transmit linear frequency-modulated continuous wave signals to the target to perform high-speed real-time processing on the target's reflected echoes to achieve fast target Detection.


    The Radar Vehicle Detector has the advantages of convenient installation and maintenance, no need to damage the road surface, no impact on vehicle access, advanced technology, reliable and stable operation, high cost performance, convenient setting of working distance, all-weather and all-weather work, compatible with straight poles and billboards/fence Advantages such as brake lever application.


    PRODUCT SPECIFICATION OF RADAR VEHICLE DETECTOR
    Model NO.
    SN-RD201
    Power Supply
    DC 6V~18V
    Frequency
    24 GHz
    Response Time
    100ms
    Signal Output
    Relay
    Coverage Range
    0 m~6 m
    Vertical Detecting Width
    43°
    Horizontal Detecting Width
    11°
    Size
    105 mm×78 mm×26 mm
    Weight
    85g
    IP Rate
    IP65
    OEM
    Supported


    2.1 Specifications
    * Center Frequency: 24 GHz;
    * Vertical Detecting Width: 43°;
    * Horizontal Detecting Width: 11°;
    * Coverage Range: 0 m~6 m;
    * Distance Adjustment Range: 2.0 m~6 m (8 levels);
    * Response Time: 100ms;
    * Signal Output: switching value.

    2.2 Detection Accuracy
    * Vehicle Inspection Miss Rate: 0.1%;
    * Pedestrian Detection Miss Rate: 0.1%;
    * False Detection Rate: 0.05%.

    2.3 Mechanical Properties
    * Dimensions: 105 mm×78 mm×26 mm;
    * Weight: 85g;
    * Waterproof: IP65
    * Supply Voltage Range: DC 6V~18V
    * Supply Current: less than 90 mA/12V.
    * Operating temperature: -40℃~+85℃;
    * Humidity: relative humidity 99% at 25℃.

    2.4 Reliability
    The equipment can work continuously day and night under the specified conditions, and the Mean Time between Failure (MTBF) meets: MTBF≧15000 h.


    Key Features

    a) Blind Zone without Detection Distance
    b) All-weather Work
    c) Detection Accuracy
    d) Work Reliability
    e) Installation Flexibility
    f) Low Cost to Install and Maintain
    g) Convenient Power Supply
    h) Use Environment Adaptability


    Object picture


    Non Contact Radar Vehicle Detector 24Ghz Black Color Adjustable Sensitivity

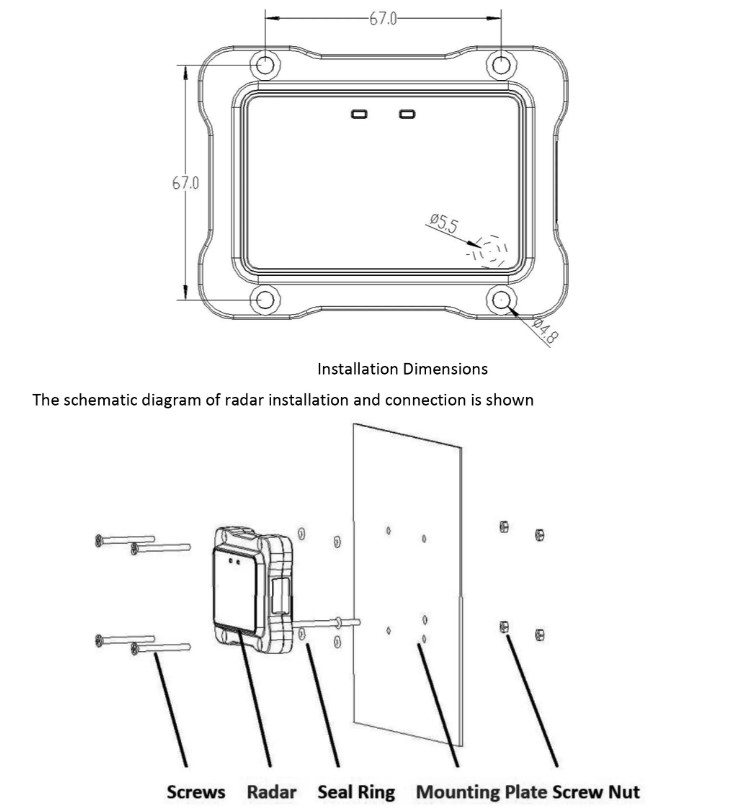

    Installation Instructions


    a) According to the application type of straight pole or billboard barrier, determine the installation direction of radar detector ;


    b) Drill 4 screw holes with a diameter of Φ4.8 and a cable hole with a diameter of Φ5.5 on the mounting plate of the radar detect


    c) After the cable is covered with a sealing ring, it is connected to the body of the barrier gate cabinet through the cable hole, and 4 screws are inserted into the fixing hole of the radar and the sealing ring is covered, and then the radar is connected to the mounting plateP a g e | - 8 -
    in turn;


    d) Put washers and fixing nuts on the four connecting screws in order and tighten them to ensure that the radar is fixed reliably. For straight boom barrier and barriers with billboards/fences, the installation method of the barrier radar is different.
