    Heavy Duty Fast Speed Spring Magnetic Limit Switch Sliding Gate Motor DKC800AC

    Ask Lasest Price
    Brand Name : SINOMATIC
    Model Number : SN-DKC800AC
    Certification : CE/ ISO
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1,000 pcs per month
    Delivery Time : 5-10 working days after payment received
    • Product Details
    • Company Profile

    Heavy Duty Fast Speed Spring Magnetic Limit Switch Sliding Gate Motor DKC800AC

    DKC800AC Heavy Duty Fast Speed Spring Magnetic Limit Switch Optional Grey Color Housing Sliding Gate Motor


    Technical specifications


    Unit ModelDKC500ACDKC800AC
    Power Supply220V, 50Hz / 110V, 60Hz
    Max. Gate Weight600KG800KG
    Motor Power280W380W
    Gate Moving Speed11-13 m/min
    Limit SwitchSpring (mechanical) / magnetic
    Recording of up Remotes20 pcs / 44 pcs
    Decoding / FrequencyRolling code / 433.92MHz
    Work DutyS2 20min
    Noise≤58dB
    Work Temperature-20°C~70°C
    Gross Weight9 KG

    About product


    * The DKC500AC/800AC gate opener designed for residential use, weight up to 500/800 Kg and operating distance up to 8 meters.

    * Compact structure, novel appearance, easy installation, cost-effective.

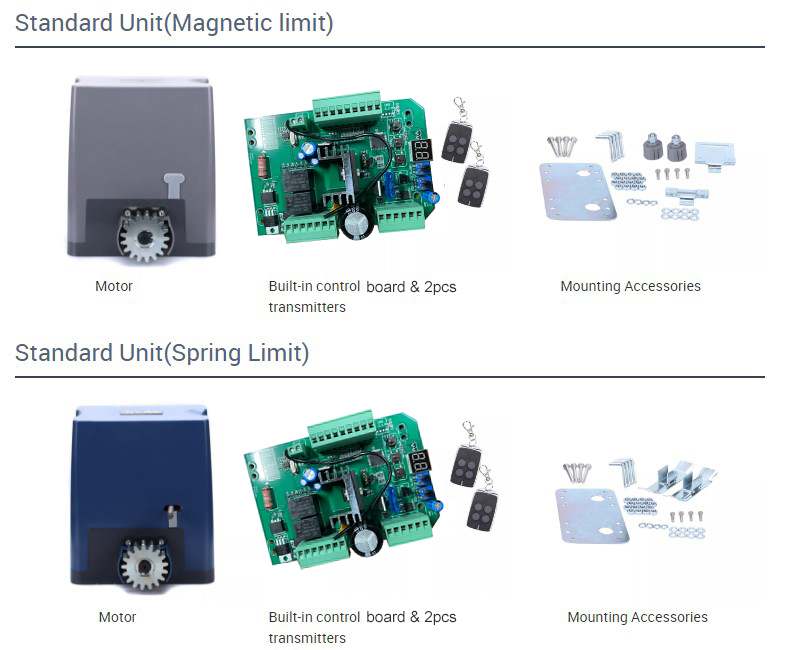

    * Built in control board

    * Keypad / single button interface.

    * Alarm lamp, Photo beam & safety beam interface.

    * User can select auto-close function.

    * Optional for spring limit switch and magnetic limit switch

    * Manual key release design for emergency purposes.

    * Automatic stop when hitting obstacle during opening, auto-reverse when hitting obstacle during closing. (Smart version)




    Optional Accessaries

    • Metal Gear Rack & Nylon Gear Rack are optional, you can order the rack length accordig to your gate length;
    • Photo beam sensor;
    • Keypad systems;
    • Push button;
    • Warning light;
    • Solar panel;(for DC motor only)
    • Backup batteries;(for DC motor only)

    Installation


    DKC500AC/DKC800AC sliding gate opener is applicable to gate weight less than 500kg/800kg, and length of the sliding gate less than 8m. The drive mode adopts the rack and gear transmission. This gate opener must be installed inside the enclosure or yard for protection.


    Installation procedures


    Preparation work before installation
    Please make sure that the sliding gate is correctly installed, the gate rail is horizontal, and the gate can be manually moved smoothly before installing the gate opener.


    Cable installation
    In order to guarantee the normal operation of the gate opener and protect the cables from damages, please bury the motor & power cable and controlling cable separately with two PVC tubes.


    Concrete pedestal
    Please cast a concrete pedestal with the size can be 400mm x 250mm, depth be 200mm in advance, so as to firmly install DKC500DC/DKC800DC gate opener. Please make sure the distance between the gate and gate opener is appropriate before casting the pedestal.

    FOR MORE DETAILS, PLEASE CLICK THE BELOW LINK TO DOWNLOAD THE USER MANUAL.


    DKC500AC(DKC800AC) user manual.pdf
