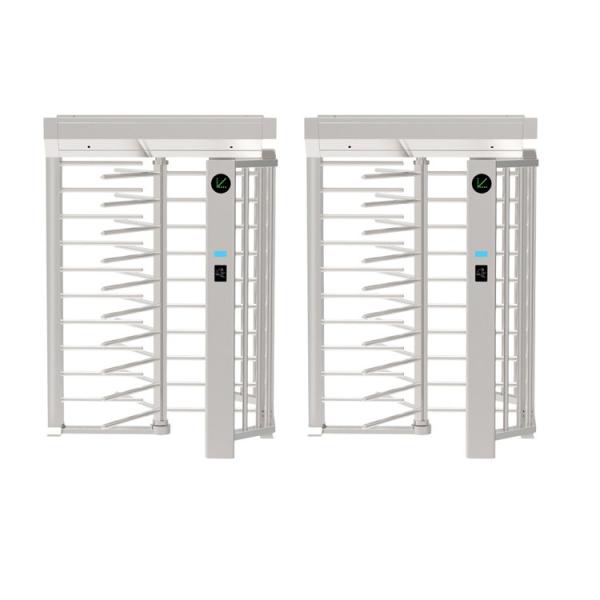

650mm Passage Width 90 120 Rotation Semi Automatic Full Height Turnstile

General Description

SN-FHT-M10 semi auto stainless steel full- height turnstile can achieve maximum access security control. Users are not able to crawl underneath or climb over to gain unauthorized access into premise. Full height turnstile can effective control single pass through each time.

Semi auto turnstile operation is based on solenoid lock that allows blocking rotation direction.

SN-FHT-M10 is built with high quality material to withstand outdoor usage for years to come.

Application

SN-FHT-M10 is suitable for indoor and outdoor application. They are optimized economical solution for factory, colleges, commercial building, stadium, game park, prison and etc.

Features

The housing is made of quality stainless steel, and all the internal parts are with anti-rust and antiseptic treatment to achieve high level of durability.

Turnstile can be configured to be bi-directional or uni-directional.

Easy integration with any third party access control or ticketing via dry contact interface. SN-FHT-M10 will unlock and allow arm rotation upon receiving valid dry contact from electronic access system.

When the arm is locked, it will be able to sustain resistant force 70kg to restrain from unauthorized force open attempt.

Anti-tailgating. Smart lock mechanism uses limit switch to detect rotation and effectively re-lock back after arm has been rotated more than half. Therefore current user can only finish the rotation to pass through or reverse the rotation to exit. Either way, it will not allow second person to pass through again.

During power failure, the system will unlock the arms to allow free access for both direction(default) Or the system will lock the arms to prevent unauthorized person to enter premises(optional)

Memory function. Memory will record the sequence of passing (same or opposite direction). Passing request will be executed according to the sequence recorded.

Technical parameters

Product dimension

Detail function and features

1. 304 stainless steel housing, can be customized look;

2. With clear indication of the access direction,intuitive LED traffic light indicates can pass or closed traffic;

3. With a unique drive system,make turnstiles at zero lock, unlock more accurate and reliable;

4. When reading a valid card, the pedestrian just need to gently push the turnstile.

5. The revolving door rotated 90/120 regrees each time.

6. Automatic reset fuction, when reading card,uesr did not pass through the passage within the stipulated time,

the system will automatically cancel the access privileges, and the passing time can be set by the management staff;

7. Unified stabdard Interfaces,mounted with a variety of writing and reading equipment,easy for system intergration.

8. When power off, it can be free access for two ways.

When power on, it will lock automatically, to quickly organize evacuations in case of emergency;

9. Read the card with memory and without memory function: Users can be set via the turnstile mainboard accordng to their needs.
