2mm Thickness Cold Roller Steel Parking System Automatic DC Brushless Motor Speed Adjustable Boom Barrier

SHENZHEN SINOMATIC TECHNOLOGY CO., LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 2mm Thickness Cold Roller Steel Parking System Automatic DC Brushless Motor Speed Adjustable Boom Barrier from wholesalers

    Buy cheap 2mm Thickness Cold Roller Steel Parking System Automatic DC Brushless Motor Speed Adjustable Boom Barrier from wholesalers
    • Buy cheap 2mm Thickness Cold Roller Steel Parking System Automatic DC Brushless Motor Speed Adjustable Boom Barrier from wholesalers
    • Buy cheap 2mm Thickness Cold Roller Steel Parking System Automatic DC Brushless Motor Speed Adjustable Boom Barrier from wholesalers

    2mm Thickness Cold Roller Steel Parking System Automatic DC Brushless Motor Speed Adjustable Boom Barrier

    Ask Lasest Price
    Brand Name : SINOMATIC
    Model Number : SN-BG130
    Certification : CE/ ISO
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 3,000pcs per month
    Delivery Time : 5-10 working days after payment received
    • Product Details
    • Company Profile

    2mm Thickness Cold Roller Steel Parking System Automatic DC Brushless Motor Speed Adjustable Boom Barrier

    2mm Thickness Cold Roller Steel Parking System Automatic DC Brushless Motor Speed Adjustable Boom Barrier

    Functions & Features
    1.The operation speed can be adjusted (1.5s to 6s).
    2.Arm direction can be quickly interchanged.
    3.Barrier gate up& down signal relay switch output.

    4. R&G Traffic light relay switch signal output.
    5. External loop detector signal anti-smashing interface.
    6. Infrared sensor signal anti-smashing interface.

    7. Count mode interface.
    8.Arm swing out function,when the vehicle hit the barrier gate,the arm can be swing out to avoid further damage(fast speed)

    9. High-sensitivity arm auto reverse function (intensity can be adjusted).

    10. Parking system interface.

    11. RS485 communication interface

    12. Backup battery interface


    Technical data


    Working Temperature-35℃~+85℃
    Power SupplyDC24V
    Open/close Speed1.5sec to 6 sec(adjustable)
    Rated Current8.58A
    Rated Power160W
    Motor No-load Speed1850rpm
    Rated Rotating Speed1400rpm
    Output Power56.8N.m
    Humidity≤90%
    Remote Control Distance≤100m (open, sunny weather)
    Protection GradeIP54
    Max Boom Length6M

    Packing list


    1 pcs Vehicle Barrier gate
    1 pcs arm boom (from 1m to 6m can customised)
    1 pcs control panel(built inside)
    2 pcs remote controllers, 1 pc push button
    1 pcs manual book

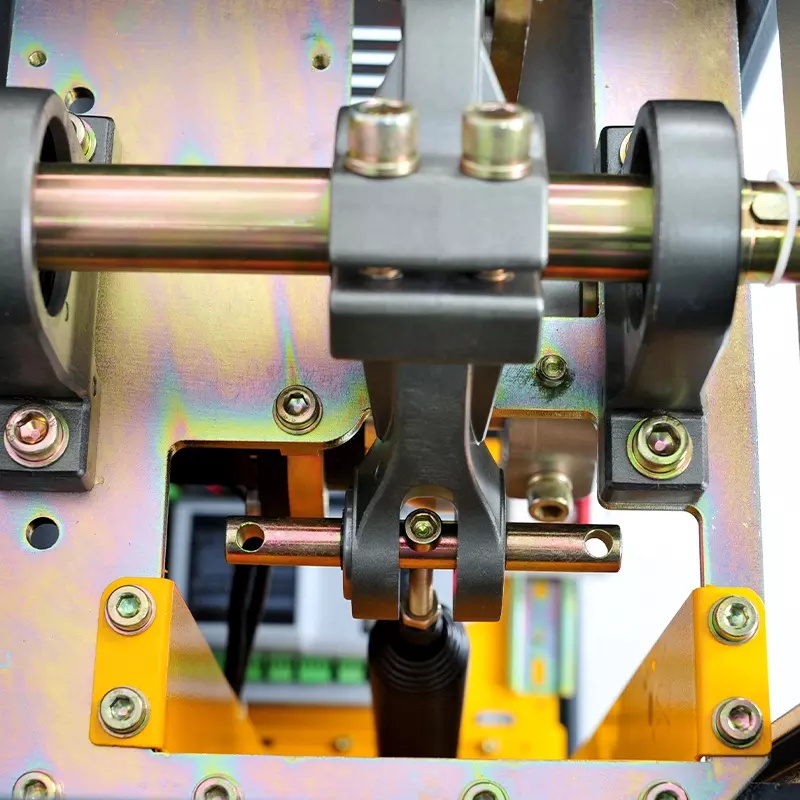

    Mechanism parts


    Parameters of Barrier Arm Type,Length and Operation Speed

    Arm typeArm Length(L)Operation time(S)Height between arm and ground (M)
    Straight arm6m≥L>5m5SH=0.83m, height of arm center from ground level
    5m≥L≥4.5m4S
    4.5m>L≥3m3S
    90°folding armL≤4.5m5S
    180°folding armL≤4m5S
    Two fence arm4.5m≥L≥4m6SH=0.9m,height of arm center from ground level
    4m>L≥3m3S
    Three fence arm5m≥L≥4m6SH=1.5m,height of arm center from ground level
    4m>L≥3m5S

    Each barrier will include:


    1 pcs Vehicle Barrier gate
    1 pcs arm boom (from 1m to 6m can customised)
    1 pcs control panel(built inside)
    2 pcs remote controllers, 1 pc push button
    1 pcs manual book


    PROTECTION OF BOOM ARM

    Anti-collision protects boom arm
    It will protect the boom arm not to be damaged once boom arm was collided by a vehicle
    Safety--- Anti-hit by pressure resistance bounce
    While moving down, boom arm will immediately go back to vertical position once it is obstructed by an imposed force, which protects the vehicle or person not to be hit by boom arm. The sensitivity is adjustable


    RFQ:
    Q: What's the order process?
    A: Follow the steps on below to complete your order.
    - 1. Inquiry
    Provide us detailed information about your requirement, and we'll recommend the suitable products according to your request
    -2. Quotation
    Official quotation form with all clear specifications according to the order
    -3. Invoice
    Invoice will be issued once the quotation is confirmed.
    -4. Payment
    Payment shall be issued once the invoice issued. Full payment is acquired.
    -5. Production
    Bulk production shall be taking 15-25 working days.
    -6. Delivery
    by sea, air or courier. Detailed picture of package will be provided upon the service you've chosen. Packaging info will be sent upon confirmation.
