Motorized Automatic System Revolving Door Full Height Tempering LED Light Glass Turnstile

PRODUCT DESCRIPTION

SN-FHT-SV2 is a 90 degree rotating full height turnstile with Canopy. It applied our latest Servo motor control system for bi-directional access control with enhanced fail-safe features(fail-secure optional). When input signal received, motor will bring you pass easily without pushing the arm all the time which makes your passage more convenient.

In emergency situations or power off, the passageway is in free pass mode for free exit. When power supply is restored or emergency signal suspended, the arms automatically return to their normal operating position. Motorized arms provide comfortable passage while maintaining a high level of crowd control and pedestrian flow management.

OUR ADVANTAGES

*Prevents unauthorized access
*Ensures one passage at a time
*Powerful drive unit featuring high quality industrial motor
*Flow rate ~20–35 passages per minute
*Available for double doors
*Full body security
*Stainless steel top channel cover provided regardless of finish
*High quality sealed and covered bearings
*Full-featured turnstile controller protects against electrical surges and is conformal coated to enhance weatherization protection
*Suitable for outdoor environments
*Dozens of options and several finishes available

MAIN FUNCTION AND FEATURES

ANTI-CRASH

Compared to traditional turnstile, our turnstile are anti-crash and anti-panic, when passenger try to push arm to pass without authorized, arm will auto lock in a degrees to prevent anti-crash and then auto back to correct position automatically.

MAINTANENCE FREE

DC Servo motor doesn’t need a carbon brush while brush motor request you replace the carbon brush in a certain time. Galvanized and stainless parts are anti-rust ensure long term usage.

24/7 CONTINUS OPERATION

With a very smooth and quiet motorized drive mechanism, our turnstile allows 24 hours/ 7 days continuous operation.

SPEED ADJUSTABLE

This full height turnstile allows you to set the passing (arm rotating) speed according to requirements. When used in high flow sites, you can adjust the speed faster.

EASY INTEGRATION

Access Reader or Push button can be used to trigger the turnstile to open via a simply dry contact signal. After delay timer elapsed, turnstile will close automatically by itself in a certain time(this time can be set from 3-60 seconds).

USER FRIENDLY

Motorized rotor provide comfortable passage while maintaining a high level of crowd control and pedestrian flow management

EMERGERY

This turnstile control board has an emergency interface left for the emergency signal. Turnstile will open in case of the signal lasting.

AUTO-RECOVERY

Rotor will be free to pass upon loss of power or in emergency situations, it will become a two-way free passage(default). When power supply is restored or emergency signal suspended, the rotor automatically return to their normal operating position.

TECHNICIAL SPECIFICATIONS

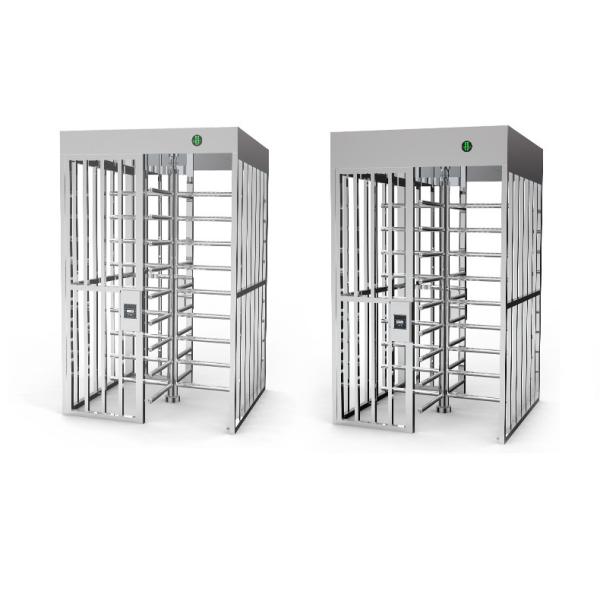

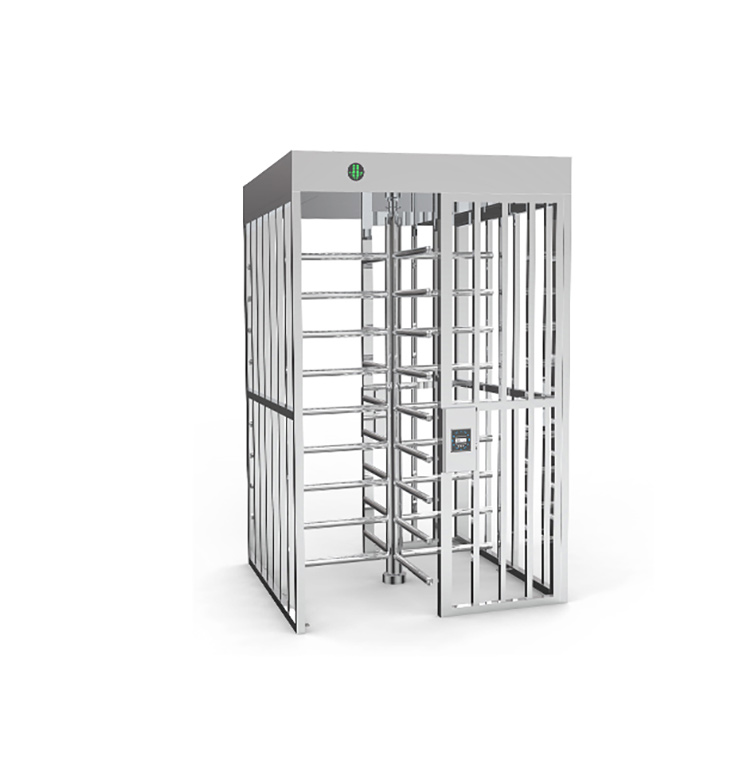

FULL HEIGHT TURNSTILE PHOTO
