    SW300DC Remote Control Swing Gate Operator 220V 110V DC24V Max Force 2600N

    Ask Lasest Price
    Brand Name : SINOMATIC
    Model Number : SN-SW300DC
    Certification : CE/ ISO
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 2,000 pcs per month
    Delivery Time : 5-10 working days after payment received
    • Product Details
    • Company Profile

    SW300DC Remote Control Swing Gate Operator 220V 110V DC24V Max Force 2600N

    SW300DC 220V 110V DC24V Max Force 2600N Remote Control Swing Gate Operator


    DETAILED PRODUCT DESCRIPTION


    • DC Motor,support backup battery DC24V(4.5AH/9.0AH)
    • Optional single/double gate mode
    • No limit switch,stop in obstacle ,need gate block
    • Automatic closing function with adjustable time(0~99S)
    • Slow start and stop, smooth operation, no inertia
    • Manual release design for emergency purpose
    • Alarm lamp,photo beam&safety beam interface
    • Support access control system to realize automatic identification and access control

    TECHNICIAL SPECIFICATIONS


    Unit ModelSW300DC
    Power SupplyAC220V/50Hz
    Maximum Loading weight300kg/Leaf
    Motor PowerDC24V/50W
    Driving MethodScrew driving piston type
    Limit switchStop block
    Gate Moving Speed2.5cm/s
    Max. Single-Leaf Length2.5m
    Remote control Range≥30m
    Recording of Up Remotes32
    Remote Frequency433.92MHz
    Work DutyS2 30min
    Working Temperature-20℃~70℃

    MAIN FEATURES

    1.Soft start slow stop, automatic close, obstacle detection by automatic reversng.
    2.Interface for GSM, infrared sensor, alarm light, wall button.
    3.Back up battery is available.
    4.Works with solar panel.
    5.Shell material is aluminum, arm is stainless steel.
    6.Separate control unit, easy to install.

    STANDARD UNIT

    SW300DC motor * 2pcs.
    control box * 1pcs.
    control board * 1pcs.
    remote control * 2pcs.
    manual release key * 1pcs.
    user manual*1pcs.
    mounting accessories.

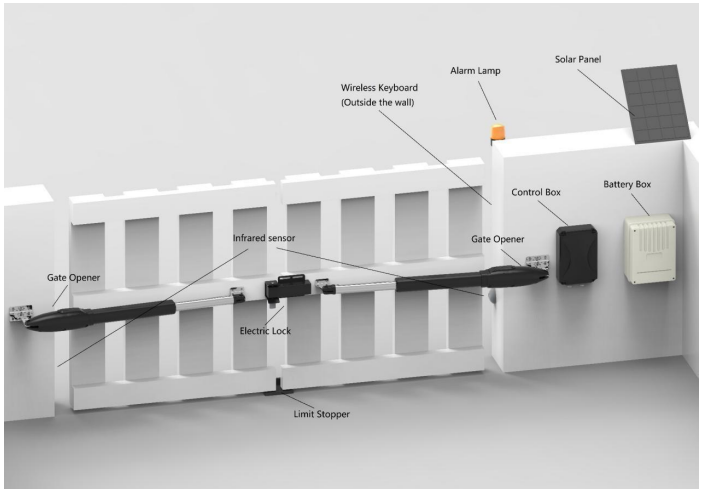

    Installation Steps

    Preparation Before Main Engine Installation

    a) Before installing the door opener, please confirm the correct installation of the door to ensure that the door can be easily manually operated, and the door safety stopper can effectively prevent the door to continue moving.

    b) Install the electric lock, the distance between the door bottom and ground should be 40-50mm. If not install the electric lock, the distance between door bottom and ground should be ≥20mm;

    c) The main engine recommended mounting height is about 300 ~ 800mm from the ground, and make sure there are reliable fixed points for mounting brackets.


    Cable
    In order to ensure the normal operation of the door opener and protect the cable from damage, please use PVC pipe laying motor, power cable, and control cables, and separate two PVC pipes to lay (motor and power cable) and (control cable), respectively.


    Mounting brackets
    In order to install the main motors firmly, recommend to use the expansion screws to fix the mounting brackets.


    FOR MORE DETAILS, PLEASE CLICK THE BELOW LINK TO DOWNLOAD THE USER MANUAL.

    SW300DC User Manual with PK400DC PCB.pdf
