    SS304 Arm Pedestrian Swing Gate 1500mm Width Anti Tailgating For Wheelchair

    Ask Lasest Price
    Brand Name : SINOMATIC
    Model Number : SN-SB01
    Certification : CE/ ISO
    Price : negotiable
    Payment Terms : T/T or western Union
    Supply Ability : 1,000pcs per month
    Delivery Time : 5-10 working days after payment received
    • Product Details
    • Company Profile

    SS304 Arm Pedestrian Swing Gate 1500mm Width Anti Tailgating For Wheelchair

    1500mm width passage optical access control pedestrian barrier gate for the wheelchair


    Description:

    Swing speed gate, adopts high standard brushed 304 stainless steel, double brushed surface treatment, dustproof, rustproof, rainproof design, suitable for indoor and outdoor use(better with shelter). It is widely used for applications like stadium, apartment, gym, museum, station, library and high-end buiding etc.

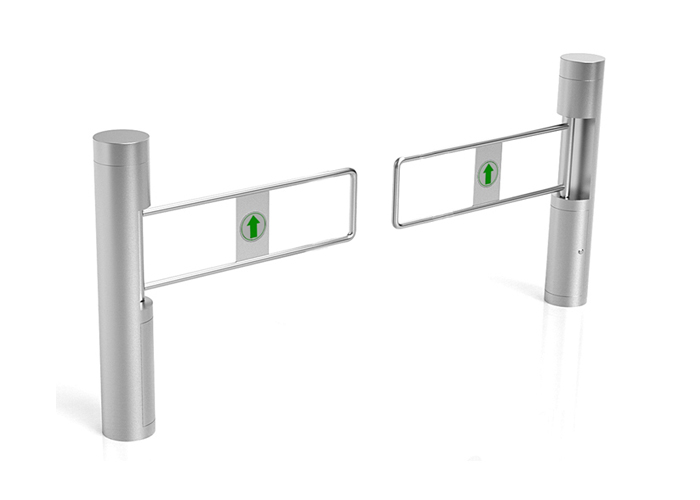

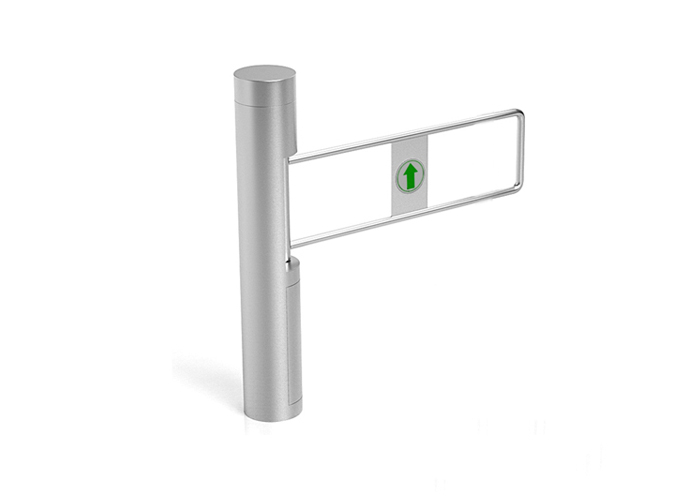

    Product photo:


    Product size



    Advantage:


    1. Matte finished housing surface, dustproof and rainproof design for outdoor use.
    2. Durable DC brushless motor, highly integrated mechanism, 100% heavy duty operation.
    3. Sufficient infrared sensors(optional) for protection, anti-intrusion, and anti-tailgating.
    4. Compatible with other access control system.
    5. Convenient installation and maintenance


    Main Functions and Features of the System


    * High standard brushed 304 stainless steel,laser cutting,elegant appearance.
    * DC motor,brand drive module,runs smoothly,low noise.
    * Equipped high precision angle encoder to monitor the core movement in real time makes the core more stable and
    longer life.
    * High speed and high passing rate.
    * Re-position function. After card reading, barrier will be locked up if passenger not pass within the valid time ,
    the valid time can be set.
    * Gate open when power off for emergency
    *(Optional)Audible sound prompt and display,against illegal entry and incorrect entry
    *(Optional) Memory function. Can pass N pedestrians continuously by swiping card N times correspondingly
    *(Optional) Support gate open while power failure and recover N/C mode after power on.
    *(Optional) Reversed passing alarm function, barrier will alarm if pedestrian pass from opposite direction
    after reading the card.


    Specifications of Pedestrian Swing Gate:


    Working temperature
    -20°C~+60°C
    Operating voltage
    DC 24V
    Power supply input
    AC220±10%V 50Hz/AC110±10% 60Hz
    Optimal flow rate
    30 person per minute
    Arm lenght
    Max. 730mm
    Arm materialSS304/ acrylic
    Current
    3A
    Motor type
    brushless DC motor
    Openning or closing time
    1s to 2s
    Reset time when power on
    3S

    Related photo:
