    80 Watt Automatic Barrier Gate System Intelligent Vehicle High Speed 2 Years Warranty

    Ask Lasest Price
    Brand Name : SINOMATIC
    Model Number : SN-BG102
    Certification : CE/ ISO
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram, D/A, L/C, D/P
    Supply Ability : 3,000pcs per month
    Delivery Time : 5-10 working days after payment received
    • Product Details
    • Company Profile

    80 Watt Automatic Barrier Gate System Intelligent Vehicle High Speed 2 Years Warranty

    Automatic Barrier gate system for parking and intelligent vehicle access control


    Product Application

    The SN-BG102 barrier gate, which manufactured by our company, adopt the latest automatic technology and intelligent design ahead in this field. Meanwhile our barrier gates have the advanced design, such as humanization clutch device, balance device(e.g), which makes our barrier gate work more safely and conveniently. This barrier gate is suitable for indoor as well as outdoor parking area, Parking lots, toll gate, goods yard, railway crossing, commercial premises, apartment block access shopping malls, hospitals, stadiums, business centers,etc.

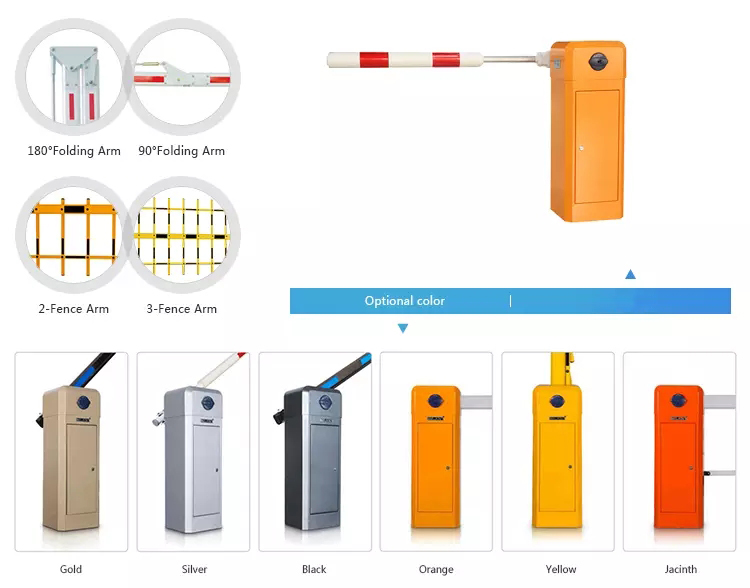

    Production Series

    Model No. (BG)Open/Close SpeedMax Boom LengthBoom Type
    102-166 sec6mstraight boom
    102-133 sec4.5mstraight boom
    102-111 sec3mstraight boom
    120-266 sec5m90 degree,Articulated boom
    102-233 sec3m90 degree,Articulated boom
    102-366 sec5m180 degree,Articulated boom
    102-333 sec3m180 degree,Articulated boom
    102-466 sec4.5mTwo-level, fence boom
    102-566 sec4mThree-level, fence boom

    Technical Specification


    Working Temperature-40℃~+75℃
    Voltage220V±10%, 110V±10%, 50/60HZ
    Rated power80W
    Relative humidity≤90%
    Remote control distance≥30m
    Net weight60kgs
    Arm Speed1s, 1.8s, 3s, 6s
    Max boom length8 meters

    Functions & Features


    1) Manual realease
    2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking;
    3) Die-casting aluminum alloy motor, precision and good at thermal radiating;
    4) Motor cooling fan, solving the problem of heat-protection;
    5) Double safety limitswitches (photoelectricity limit switch/motor memory sensor);
    6) Reversing on obstacle;
    7) Auto-closing;
    8) Support the In frared Photocell for anti-bumping function(optional);
    9) Support the external and internal Vehicle Loop Detector;
    10) Traffic light interface;
    11) Wire Control ( switch signal) / remote control (418 HZ/433 HZ );
    12) RS485 Communication module (optional).



    Our workshop:


    FAQ:


    Q: What's the monthly production capacity for barrier gate?

    A: 1000 units.

    Q: What is the warranty for the machine?

    A: 12 months.

    Q: When will you make the delivery?

    A: In general, Regular products: 2-7 days.

    Q: How does your factory control the quality?

    A: Quality controlling from the beginning to the ending.

    Q: What is your MOQ?

    A: Any quantity is acceptable.

    Q: Payment term?

    A: 30% deposit, 70% before delivery
