Anti-crash hydraulic customizable road blocker system with A3 steel housing for vehicle control

Description of road blocker:

Sinomatic hydraulic road blocker is designed for high level security. It comes in a variety of widths to suit specific site requirements, with a blocking height from 500mm to 1100mm;

Road blocker can be operated by remote controller, push button, card reader and other existing access control system and also integrated boom barrier.

The housing and the blocking element of the road block system are fabricated in full core steel profile construction to absorb static impact loads up to 5000kN.

The blocking element with the integrated anti-deflection device is electro-hydraulically operated with an electric motor of adequate size (380V, 50 Hz, 3-phase current).

The electro-hydraulic drive unit as well as the control system are installed in a lockable steel cabinet for outdoor installation.

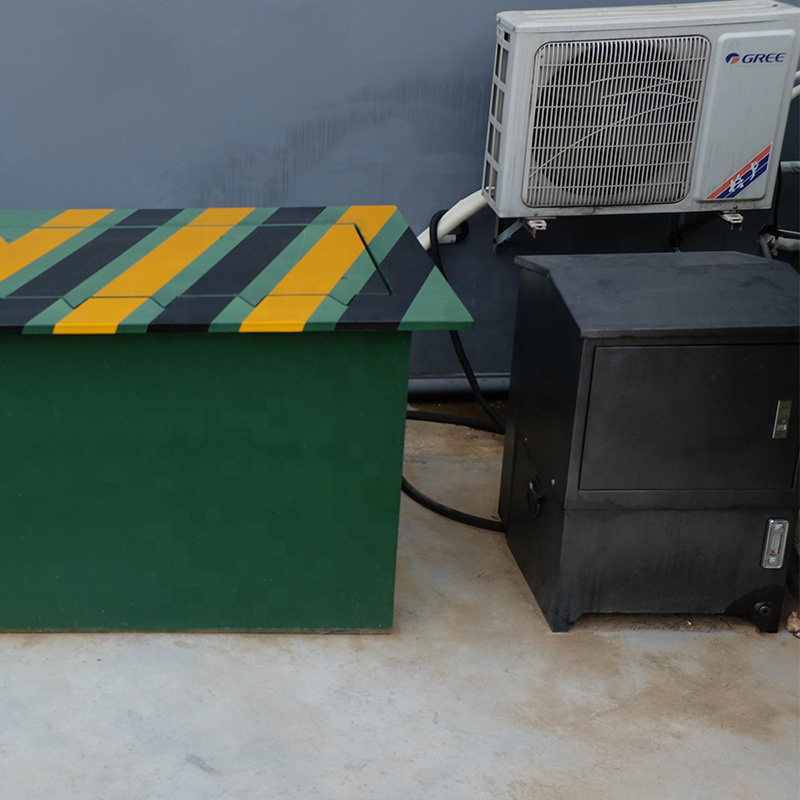

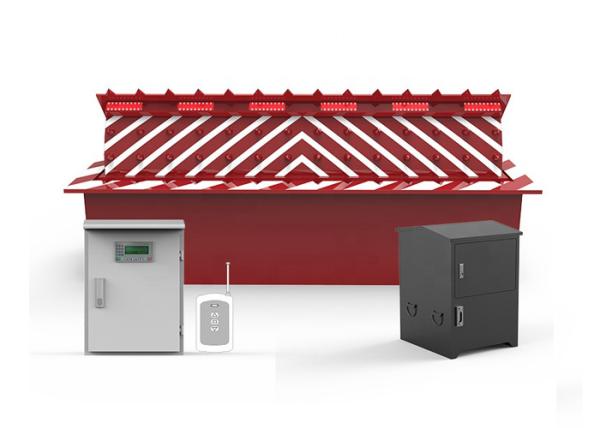

Product photo:

Features of hydraulic road blocker:

1. System: hydraulic

2. Voltage: 3 phase 380V(control voltage DC24V)

3. Rising time: 1S to 3S (adjustable)

4. Working temperature: -35℃ to 75℃

5. Material: A3 steel, spay anti-rust paint

6. Weight: ± 1.2Tons

7. The road blocker has a buffer function

8. LED light color: red, blue, green, yellow, purple, white etc.(total 20 colors are available)

9. In case of power outage, the blocker can be manually raised and lowered.
10. Remote control distance: 50 to 100mm (depends on the environment)
11. Device running noise: ≤60 decibel
12. Control solenoid valve :24v

Application:

Embassy, Military Base, Power Stations, Prison and other sensitive area where needs high level security protection.

Production line:

Quality control:

Options available

• Access control and systems
• Emergency buttons with lock down
• UPS backup for the electrical system
• STOP / NO Entry warning signs
• Accumulator systems for hydraulic operation in power failure conditions
• Inductive loop systems
• Traffic lights and back-indications systems

FAQ:

Q: Are you trading company or manufacturer ?
A: We are factory,more than 100 employees,covering an area of 4,700 square meters

Q: How long is your delivery time?

A: Generally it is 7-15 days, depends on order quantity

Q: Do you provide samples?

A: Yes,we accept sample order

Q: What is your terms of payment ?

A: 30% T/T in advance,balance before shippment.
