Reflective Tape Ornate Safety Stainless Steel Parking Road Automatic Pneumatic Bollard for Access Control

Hydraulic automatic bollard is usually installed in the vehicle entrance / exit and control point. Commands are sent by remote control or other control system to make bollard automatically back to ground level to realise barrier-free passing. This is suitable for custom, port, wharf, high-class estate, pedestrian street, government building, prison, airport, military base and other places in need of control.
This is an automatic hydraulic road bollard and an environmental-friendly product for access control.
In short,it is a high-security product with high-speed and high-impact performance.

Specifications of safety road bollard

1. System:electric-hydraulic system
2. Max passing pressure: 80T to 120T trucks
3. Voltage:AC220V 50Hz Integrated
4. Power(w):300W Integrated
5. Up time:3-6S Adjustable
6. Down time:3-6S Adjustable
7. Working temperature:-65℃~75℃
8. Storage Environment:-10℃~65℃(water-proof, damp-proof,dust-proof)
9. Material:304 stainless steel
10. Rising height:600mm standard, Max. can be 1000mm
11. Bollard Thickness: 6mm standard ( 8mm, 10mm, 12mm, 20mm are optional)
12. Diameter:219mm Standard ( 168mm, 273mm, 324mm are optional)
13. Structure :With load-bearing steel beam column, anti-collision steel beam column, 4 navigation rod
14. Integrated electrical mechanism : stroke 600mm, Cylinder outer diameter 60mm, Rod diameter:16mm.
15. 6k Mirror tube.
16. LED light (optional)
17. Reflective sticker: 2 strips
18. Link-control interface
19. In case of a power outage, the bollards can be manually lowered down
20. IP rate: IP68

21. Weight:150±KG Integrated
22. In rising and falling,reversible operation is available
23. Device running noise≤60decibel
24. Waterproof integrated hydraulic device drive
25. The hydraulic cylinder is double sealed to ensure a waterproof rating
26. Hydraulic drive comes with hydraulic lock
27. PLC programming command control system
28. Solenoid valve voltage 24V
29. Remote control distance 50M-100M(Based on the environment)
30. The control box displays text adjustable (Up, Down, Action, Time control
adjustment)

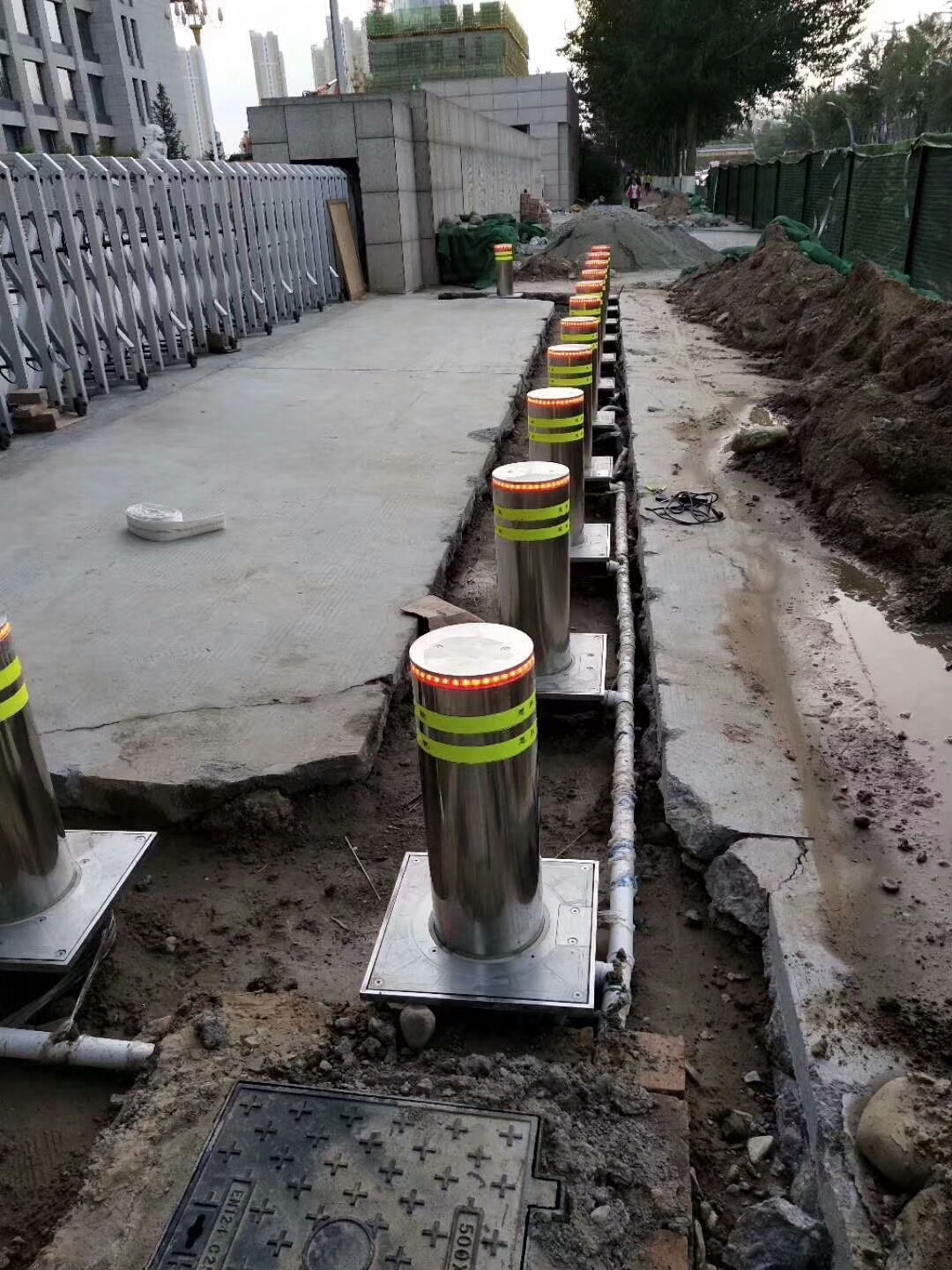

Case reference

Production workshop

Application:

Scientific and educational units: schools, computer rooms, research centers, libraries, etc.;

Leisure and entertainment venues: parks, scenic spots, pedestrian streets, municipal squares, playgrounds, etc..

Traffic: bus station, railway station, subway station, airport, etc..

Business service places: hospitals, banks, hotels, clubs, commercial buildings, etc..

Office space: large office buildings, public inspection units, hydro power and oil and gas units and other government agencies.
