Brand Name : | SINOMATIC |
Model Number : | SN-HRB01 |
Certification : | CE/ ISO |
Price : | negotiable |
Payment Terms : | T/T, Western Union, MoneyGram, credit card/Cash/wechat |
Supply Ability : | 1000 pcs a month |
Delivery Time : | 5-7 working days after payment received |
Features:
1. System:electric-hydraulic system
2. Max passing pressure: 100T trucks
3. Voltage:AC220V 50Hz Integrated
4. Power(w):300W Integrated
5. Up time:3-6SAdjustable
6. Down time:3-6SAdjustable
7. Working temperature:-65℃~75℃
8. Storage Environment:-10℃~65℃, water-proof,
damp-proof,dust-proof.
9. Material:304 stainless steel

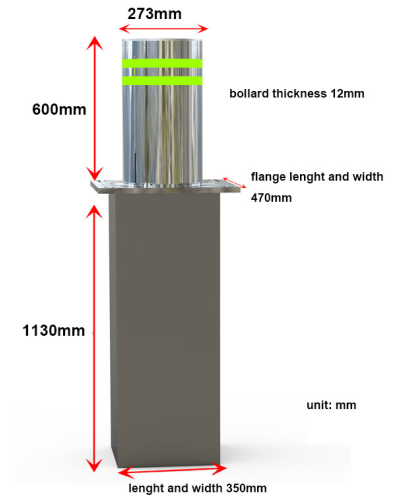

10. Rising height:600mm
11. Bollard Thickness: 12mm
12. Diameter:273mm
13. Structure : With load-bearing steel beam column, anti-collision
steel beam
column, 4 navigation rod.
14. Integrated electrical mechanism : stroke 600mm, Cylinder outer
diameter 60mm,
Rod diameter:16mm.
15. 6k Mirror tube
16. Reflective sticker: 2 strips
17. Link-control interface
18. In case of a power outage, the bollards can be manually lowered
down
19. IP rate: IP68
20. Weight:150±KG Integrated
21. In rising and falling,reversible operation is available
22. Device running noise≤60decibel
23. Waterproof integrated hydraulic device drive
24. The hydraulic cylinder is double sealed to ensure a waterproof
rating
25. Hydraulic drive comes with hydraulic lock
26. PLC programming command control system
27. Solenoid valve voltage 24V
28. Remote control distance 50M-100M(Based on the environment)
29. The control box displays text adjustable (Up, Down, Action,
Time control
adjustment)
30. Text display with Chinese and English bilingual
31. PLC built-in encryption system
32. Water immersion performance:48 hours without leakage and
working well
