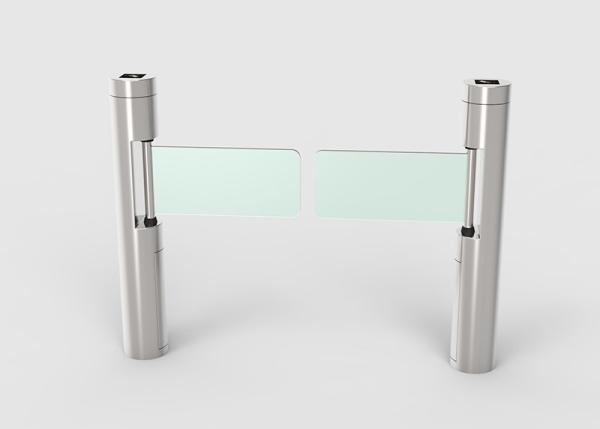

    730mm Arm Swing Barrier Gate 0.5S Motor Drive 180 Degree Turning

    Ask Lasest Price
    Brand Name : SINOMATIC
    Model Number : SN-SB01
    Certification : CE/ ISO
    Price : negotiable
    Payment Terms : T/T or western Union
    Supply Ability : 1,000pcs per month
    Delivery Time : 5-10 working days after payment received
    • Product Details
    • Company Profile

    730mm Arm Swing Barrier Gate 0.5S Motor Drive 180 Degree Turning

    Customizable opening 24 hours continuous application dry contact control cylinder swing barrier gate system


    DESCRIPTION

    Swing arm barrier, adopts high standard brushed 304 stainless steel, double brushed surface treatment,

    dustproof, rustproof, rainproof design, suitable for indoor and outdoor use(better with shelter).

    It is widely used for applications like stadium, apartment, gym, museum, station, library and high-end buiding etc.


    DescriptionParameters
    Lane WidthSingle 730mm/ Pair 1500mm
    IPIP54
    Pass Speed30 persons/min
    Power supplyAC220V/110V,50/60Hz
    Drive ModeMotor drive
    Max Power Consumption40W
    Opening time0.5S
    Humidity≤90% coagulation free
    Noise≤50dB
    Service Life5,000,000 cycles
    Working Environment-20°C~+60°C
    Gross Weight25KGS

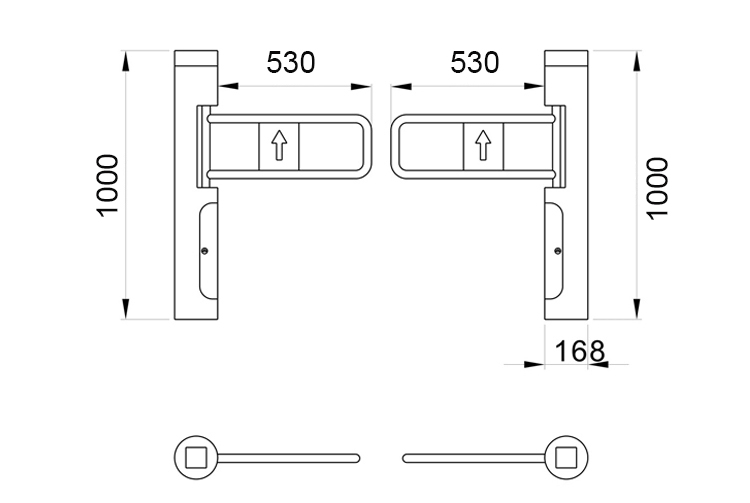

    PRODUCT DIMENSION


    Advantage:


    1. Matte finished housing surface, dustproof and rainproof design for outdoor use.
    2. Durable DC brushless motor, highly integrated mechanism, 100% heavy duty operation.
    3. Sufficient infrared sensors(optional) for protection, anti-intrusion, and anti-tailgating.
    4. Compatible with other access control system.
    5. Convenient installation and maintenance


    Main Functions and Features of the System


    1. High standard brushed 304 stainless steel,laser cutting,elegant appearance.
    2. DC motor,brand drive module,runs smoothly,low noise.
    3. Equipped high precision angle encoder to monitor the core movement in real time makes the core more stable and
    longer life.
    4. High speed and high passing rate.
    5. Re-position function. After card reading, barrier will be locked up if passenger not pass within the valid time ,
    the valid time can be set.
    6. Gate open when power off for emergency
    7. (Optional)Audible sound prompt and display,against illegal entry and incorrect entry
    8. (Optional) Memory function. Can pass N pedestrians continuously by swiping card N times correspondingly
    9. (Optional) Support gate open while power failure and recover N/C mode after power on.
    10. (Optional) Reversed passing alarm function, barrier will alarm if pedestrian pass from opposite direction
    after reading the card.



    FAQ


    1.What is your products biggest advantage?
    ----- DC Brushless Motor , no maintenance all the of life, No Attrition, Low-Noise, High Intelligence


    2.What is your flap gates opening and closing time?
    -------- <=0.5s.


    3.What is the Swing barrier gate Working environment ?
    -------- They can be used indoor and outdoor(with rainshed added)


    4. Can I customize it?
    --------Yes,We are the manufacturer, provide OEM/ODM service.


    5.What's you warranty?
    -------- Default is 1 year time warranty
