    304 Stainless Steel Retractable Flap Gate Barrier 1.5mm Thickness AC 220V/110V

    Ask Lasest Price
    Brand Name : SINOMATIC
    Model Number : SN-FB01
    Certification : CE/ ISO
    Price : negotiable
    Payment Terms : T/T or western Union
    Supply Ability : 3,000pcs per month
    Delivery Time : 5-10 working days after payment received
    • Product Details
    • Company Profile

    304 Stainless Steel Retractable Flap Gate Barrier 1.5mm Thickness AC 220V/110V

    Factory Supply Premium Quality 1.5mm thickness 304 Stainless Steel Retractable Flap Gate Barrier


    Introduction of Flap Barrier Gate


    Sinomatic flap barrier gate integrating with mechanism, electron, microprocessor and various identification technology is compatible with card reader devices such as IC card, ID card, bar code, fingerprint and so on. By configuring all kinds of identification devices and adopting reliable safeguard devices, alarm devices, direction indicator etc, it is able to achieve access intelligetilized control and management.


    DescriptionParameters
    Lane Width550-600mm
    IPIP54
    Pass Speed30 persons/min
    Power supplyAC220V/110V,50/60Hz
    Drive ModeMotor drive
    Max Power Consumption200W
    Opening time0.4S
    Humidity≤90% coagulation free
    Noise≤50dB
    Service Life5,000,000 cycles
    Outside packing130x40x116 cm
    Working Environment-20°C~+60°C
    Gross Weight100KGS


    PRODUCT DIMENSION

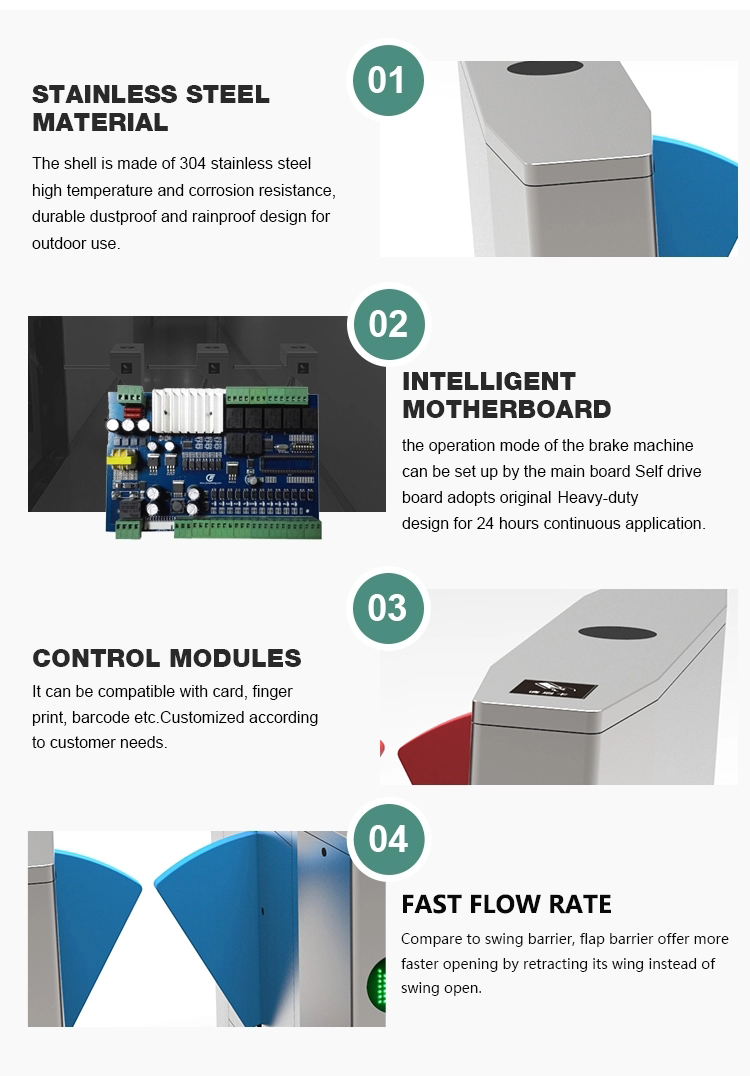

    Features of Flap Barrier Gate


    1.With fault self-test and alarm prompt function, convenient for user maintenance and use.


    2.Through the built-in small push-pull on the main control board, device operating state can be programed.


    3.The mechanical structure has anti-pinch and anti-collision function. When the swing arm is blocked during the reset process, the motor automatically stops working within the specified time. Reset again after the default delay (until reset), and the force is very small (≤ 2kg).


    4. Illegal intrusion, trailing alarm, reverse intrusion gate automatically closes


    5.Anti-shock function, the arm is automatically locked when no open signal is received.


    6.Telescopic arms are adjustable synchronously (for double pendulum)


    7.With automatic reset function. After the switch is opened, the system will automatically cancel the user's permission for the pass when there is no pass within the specified time.The reset time is adjustable from 1s to 60s (the system default time is 10s). After the power is cut off, the channel is automatically opened (in accordance with fire protection requirements), and the power-on channel is automatically closed.


    8.Infrared sensor reset, infrared sensor anti-trap function (configure 5 pairs of infrared)


    9.It can be connected with a variety of devices such as access control systems, consumer systems, electronic ticket systems, biometric systems, and electrostatic testers.


    10.The one-way or two-way control personnel can enter and exit, and the infrared sensing in and out channels.


    11.Voice prompt function.


    12.Remote control and management can be achieved directly through the management computer.



    Case of Flap Barrier Gate


    304 Stainless Steel Retractable Flap Gate Barrier 1.5mm Thickness AC 220V/110V


    304 Stainless Steel Retractable Flap Gate Barrier 1.5mm Thickness AC 220V/110V


    Why choose us:


    1. Our Factory has 17 years OEM/ODM experiences in the line of access control turnstile and barrier.
    2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
    3. We accept OEM/ODM orders to meet the requirements of clients.
    4. Trial order is acceptable. Clients can buy sample order and test it before bulk order.

    5. Online technical support makes it carefree to be our business partner.

    6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

    7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
