3s to 6s speed adjustableAutomatic hydraulic road bollards with Electronic remote control

DESCRIPTION

Hydraulic automatic bollard usually integrate of oil pump unit and steel frame construction. It use soil

pressure as dynamic to realize the rise/fall of bollard.As a moving device, it is usually installed at vehicle

entrance/exit. It rises to block the vehicle and falls to the ground level to authorize free passing.

PRODUCT PARAMETERS

FUNCTIONS & FEATURES

1. Anti-collision:It can be used normally after being hit by a 12-ton vehicle.

2. Anti-destructive power:After being hit by a 16-ton vehicle, Hydraulic road bollards deformation.

3. internal structure:With load-bearing steel beam and column, anti-collision steel beam column,

4 navigation rods

4. Can be manually lowered in the event of a power outage

5. Linkage interface

6. Reversible operation according to requirements during ascent and descent

7. Noise during operation of the device≤60 dB

8. Waterproof integrated hydraulic drive

9. Control solenoid valve 24V

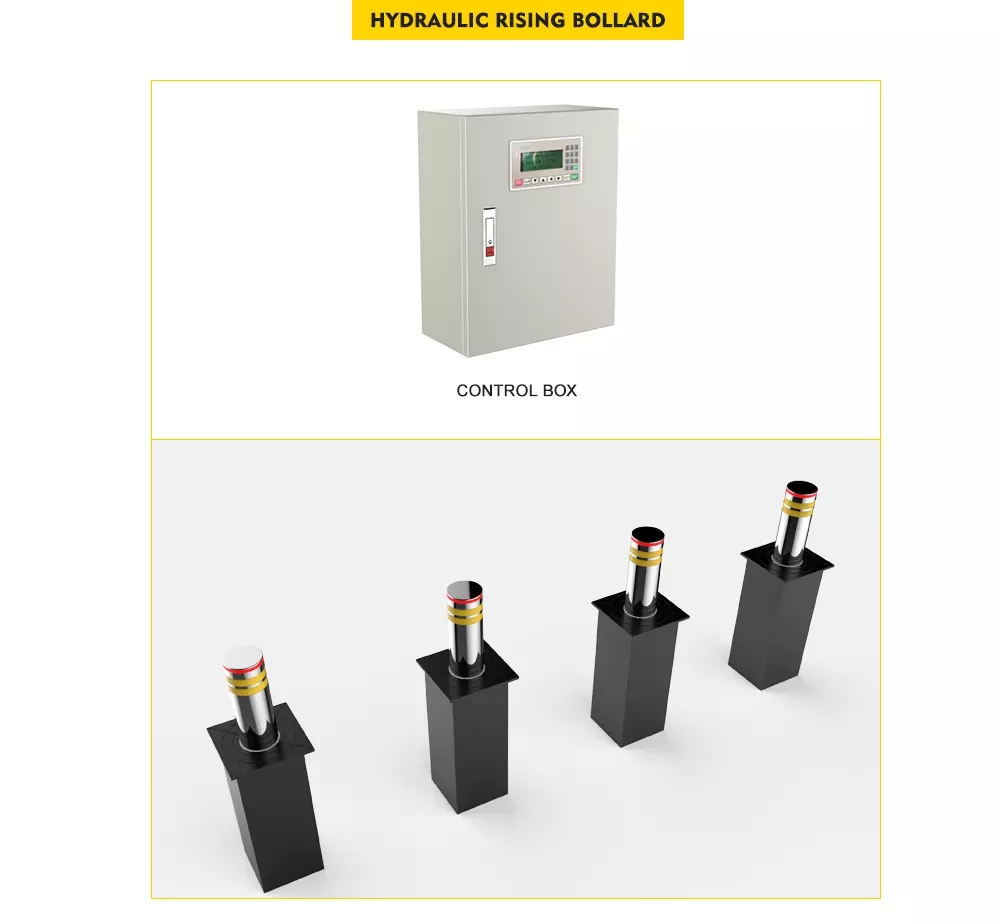

10. Control box display text adjustable (up, down, start, time control adjustment)

11. Display text in English

12. Water immersion performance:no leakage during 48 hours and normal lifting

13. Anti-corrosion performance level: 9

PRODUCT DETAILS

1. Automatically raise/lower/stop.The automated bollards adopt a heavy duty hydraulic power pack and

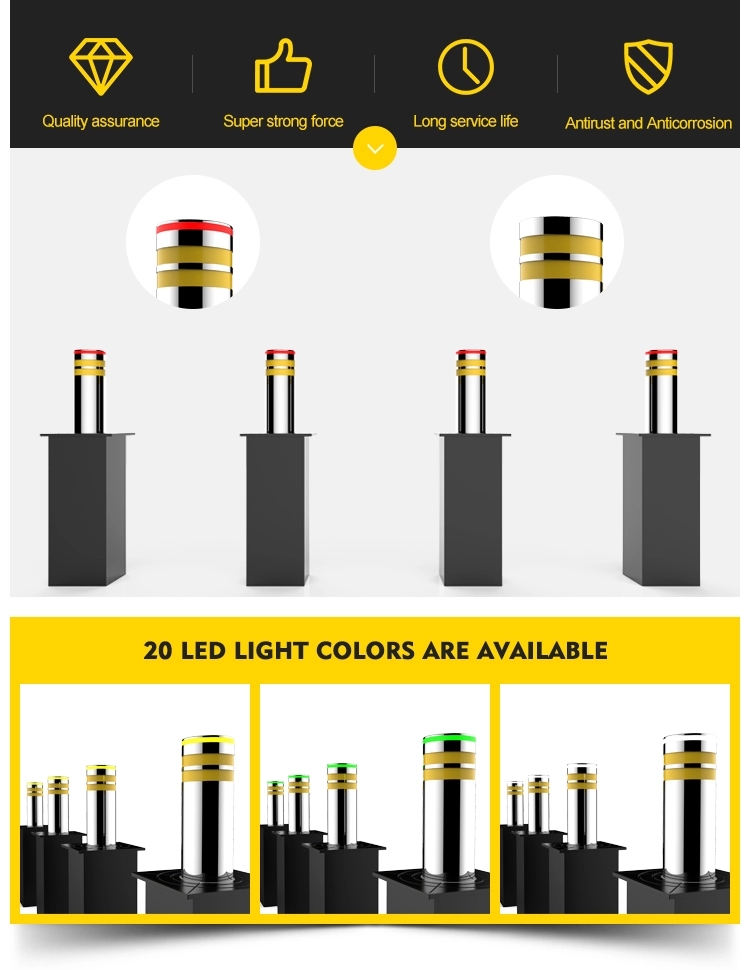

operate by integrated control.Easy to install and operate. Built-in led flashing lights and reflective tap

in the bollard head to ensure visibility and safety.

2. Variable frequency controller. Adopt variable frequency controller,the raise/lower speed 3-6s is adjustable.

It can stop emergently during raising/lowering process. The control signal is electric transmission, quick and reliable.

3. Firm foundation plate.Thicken seamless 304 stainless steel with strong bearing capacity more than 40 tons.

Rust protection and distortion resistance.

4. Built-in valve.In case of emergent issue for example power failure, the obstacle can be lowered by relief valve

manually to make sure the passage of pedestrians and vehicles in not affected.

5. Adopt high quality great power motor, the bollards can raise/lower speedy,work stable and durable with 1500

cycles working frequency per day.The motor can be disassembled for easy maintenance.

6. Multiple security protection.Use high pressure air rifle to seal up the vent,the motor can work when soaked

in water with electricity leakage protector.

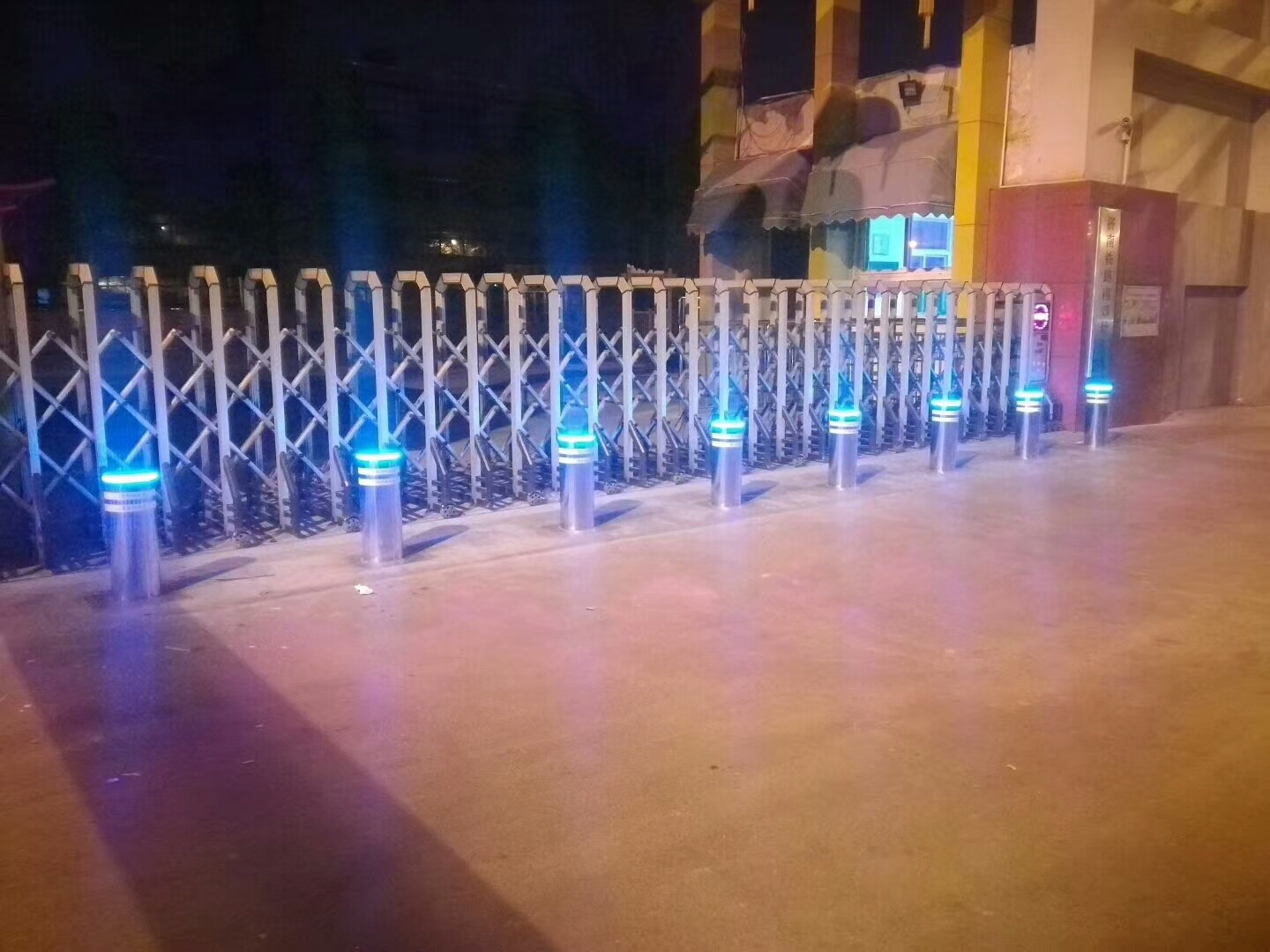

CASE REFERENCE

INSTALLATION

APPLICATIONS

Scientific and educational units: schools, computer rooms, research centers, libraries, etc.;

Leisure and entertainment venues: parks, scenic spots, pedestrian streets, municipal squares, playgrounds, etc..

Traffic: bus station, railway station, subway station, airport, etc..

Business service places: hospitals, banks, hotels, clubs, commercial buildings, etc..

Office space: large office buildings, public inspection units, hydro power and oil and gas units etc.
