    Shallow Mounted Security Road Blocker Hydraulic PLC Programming Command Control

    Ask Lasest Price
    Brand Name : SINOMATIC
    Model Number : SN-HRB02
    Certification : CE/ ISO
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram, L/C, D/A, D/P
    Supply Ability : 100 pcs per month
    Delivery Time : 5-7 working days after payment received
    • Product Details
    • Company Profile

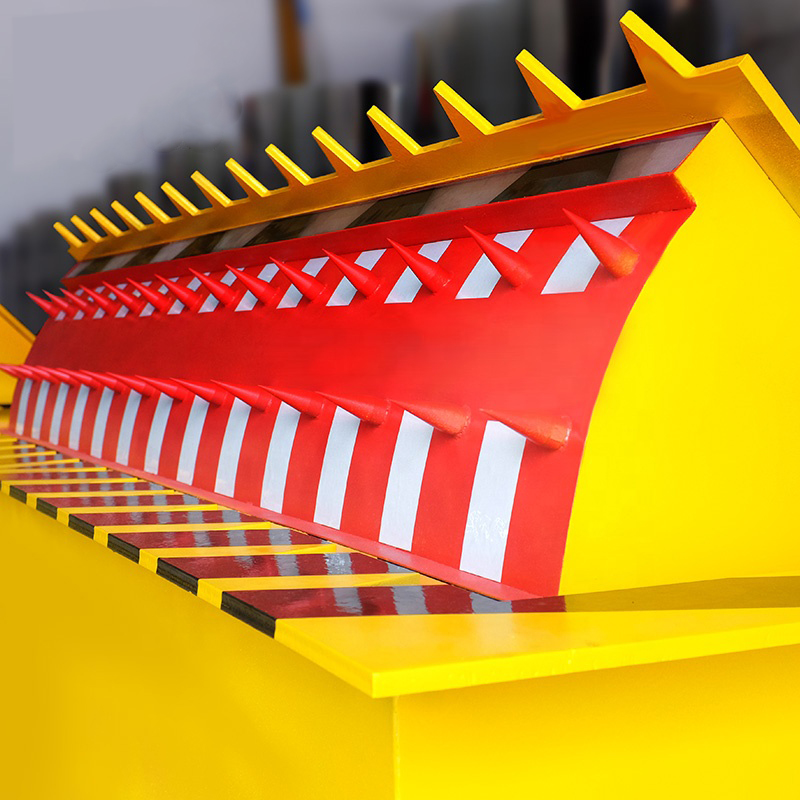

    Shallow Mounted Security Road Blocker Hydraulic PLC Programming Command Control

    PLC programming command control shallow mounted hydraulic contol road blocker system

    PRODUCT DISPLAY



    What is the feature of the Hydraulic Road Blocker?
    1. Durable,Overload,Operate Smoothly,Low Noise,Fast speed up&down
    2. Micro control technology makes bollards work stable and reliable,Easy integrate to other systems
    3. Compatible with road barrier,Turnstiles and other access system control to achieve automatic control
    4. Advanced mature Hydraulic pressure technologies
    5. Remote control system realize wireless control up&down within 30 meters range
    6. Customized for different users requests
    7. Controller display : LCD and LED
    8. Swiping card system: built-in card reader to control bollards up&down
    9. Road barrier integrate with Bollards : built-in access control realize road barrier,A/C and bollards in one-card
    10. Connected with Computer Management OR Charging Systems

    PRODUCT DIMENSION


    TECHNICIAL PARAMETERS

    Control SystemElectro- Hydraulic
    Passing pressure:≤120 tons container trucks
    System Dynamic power3.75KW
    Rise time :≤1-3S(adjustable)
    fall time :≤1-3S (adjustable)
    Buffer functionbuffer time :0.2s-0.5s
    Running noise≤60 db
    Voltage:Three-phases 380V(control voltage 24V)
    Oil container:60L/80L/120L
    Control solenoid valve24V
    Lifting solenoid valve24V
    Remote control distanceApprox .50-100m
    Working Temperature :-35~75(suitable)
    Material:A3 steel ,Spray anti-rust paint
    Material thickness16mm (20 mm,25 mm optional)
    Waterproof:IP68, double sealed
    LED light colorred,blue,green,yellow,purple,white…(customized)
    Color:red,blue,green,yellow…(can be customized)
    Weight:1.5T



    PRODUCTION DETAILS


    MAIN FUNCTIONS

    1. Can be manually raised and fall down if power cut.

    2. Gang-control interface

    3. Reliable structure, heavy duty load, smooth action, low noise.

    4. In rising and falling, reversible operation is available .

    5. Hydraulic drive comes with hydraulic lock

    6. Welding cylinder

    7. PLC programming command control system

    8. LCD display ,Both Chinese and English menu.

    9. PLC built-in encryption system

    10. Heavy duty hydraulic cylinders :HOB63-200CA+I Stroke200 Heavy duty Industrial Level

    11. Double dynamic double oil pump 2.3ML/time

    12. Hydraulic oil hose:PT international interface ,1/2 Double wire high pressure hose


    CASE REFERENCE




    INSTALLATION INSTRUCTION

    1. Easy-to-install, easy-to-maintain is what we pursue.
    2. We provide detail & professional installation instruction (in English) to make your construction much easier.
    With all the technical data, dimension and etc.
    3. Furthermore, our after-sales service support can also provide remote (via phone call) instruction for free.

    FAQ

    Where is the operation of the Hydraulic Road Blocker Barrier?
    Widely use around prison,military base,bank,hotel,and others high security requirements places.


    What is the package of the Hydraulic Road Blocker Barrier?
    Inside with a carton package,outside crate package.
