    DC24V Automatic Arm Barrier Brushless Servo Motor IP54 Die Casting

    Ask Lasest Price
    Brand Name : SINOMATIC
    Model Number : SN-BG-S10
    Certification : CE/ ISO
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 3,000pcs per month
    Delivery Time : 5-10 working days after payment received
    • Product Details
    • Company Profile

    DC24V Automatic Arm Barrier Brushless Servo Motor IP54 Die Casting


    Latest Version DC Brush-less Servo Motor automatic parking gate barrier with built-in led light


    PRODUCT DESCRIPTION


    SINOMATIC S10 DC Brushless Servo motorized barrier gate, the newly designed, maintenance free with

    exclusive SFMCU Micro-drive unit offers 100% more torque, 100% duty, are the fastest toll barriers available

    with an opening time as fast as 0.6seconds. Opening speed is adjustable from 0.6s/0.9s to 6s or more.


    This barrier redefines performance in non-stop toll applications. It is the ideal solution for very high frequented

    toll stations providing great reliability and sustainability as well as comprehensive functionality. This Barrier use

    innovative technology design and manufactured with precision machinery to guarantee satisfaction in quality

    andreliability for years to come. The barrier has been lab tested for more than 10 millions opening /closing and

    still without any degrade in performance.


    Max Straight Arm2.5M3M4.5M6M
    Opening time0.6S0.9S1S~3S2S~5S
    Speed range0.6S ~ 6S
    Motor rated power100W
    Duty cycle100%
    Supply voltage220V/110V ±10%, DC24V/12V
    Frequency50Hz/60Hz
    Drive systemDC brushless servo motor
    Housing dimensionsH1000*L360*W300mm

    Weight

    (Without boom)

    45KGS
    Protection rateIP 54
    Working temperature-35℃ to 70℃

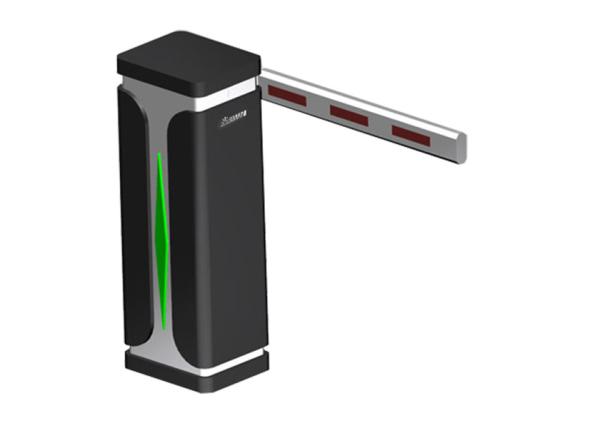

    PRODUCT PHOTO

    FUNCTIONS & FEATURES


    1. NO SENSOR&LIMIT SWITCH

    Innovative design which doesn’t need any sensor and limit switch.All control by SFMCU drive unit precisely.

    Four main parts only, mechanical, motor, control unit, power supply.


    2. MAINTENENCE FREE

    DC Brushless Servo motor doesn’t need a carbon brush while brush motor request you replace the carbon

    brush in a certain time. Galvanized and powder coated parts are anti-rust ensure long termusage.

    And no other smaller parts need to be maintain too.


    3. 24/7 CONTINUS OPERATION

    With a very smooth and quiet motorized drive mechanism, Open

    and close very stable, offer maximum reliability at fast speeds, in 7*24 hours non-stop usage.


    4. SPEED ADJUSTABLE

    Our DC servo barrier gate allows you to set opening and closingspeed according to requirements. Shorter arm,

    the faster speed can be set.


    5. AUTO-REVERSE FUNCTION

    When arm falling and meets obstacles, arm will auto reverse to prevent further damages.


    6. MULTIPLE INTERFACES

    * Wire Control Signal Input(open&close&stop)

    *Infrared Photocells

    *Loop Detector

    * R&G Light signal (Up&Down Limit signal output optional),

    *can use for counting purpose also

    *Arm Presence Detection(Optional)

    * RS485 Communication(Optional)

    * More If Required


    7. EASY INTEGRATION

    Access Reader or Push button or remote controller can be used totrigger the barrier gate to open via a

    simply dry contact signal.After delay timer elapsed, barrier gate will close automatically byitself in a certain

    time(optional function)


    8. USER FRIENDLY

    Motorized arms provide comfortable passage while maintaining ahigh level and high density of car flow

    management, such as in toll gate.


    9. AUTO-RECOVERY

    When power off, barrier arm can be lifted up by manual for a freeexit. When power supply is restored,

    Barrier gate will automatically return to close position.


    10. Auto Testing Mode

    Control board can set auto testing mode
