    Bi Directional Pedestrian Swing Gate , Entrance Control System 0.5 Second Opening Time

    Ask Lasest Price
    Brand Name : SINOMATIC
    Model Number : SN-SB05
    Certification : CE/ ISO
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram, L/C, D/A, D/P
    Supply Ability : 1000 pcs per month
    Delivery Time : 3-7 working days after payment received
    • Product Details
    • Company Profile

    Bi Directional Pedestrian Swing Gate , Entrance Control System 0.5 Second Opening Time

    Security Bi-directional 24 hours heavy duty use 0.5 second opening time Swing type Baffle Barrier


    INTRODUCTION


    Sinomatic swing barrier is an ideal passenger access management device produced by our company after

    years of research and development. Our standard product, made of 304 stainless steel, integrating with

    mechanism, electron, microprocessor an various identification technology, is able to achieve access

    intelligent control and management by configuring all kinds of identification devices, direction indicator

    and well-extended LED counting display.


    Sinomatic Intelligent swing barrier is a brand-new product of our company. It has features of precise

    craftsmanship, comprehensive functions and high reliability, which can be applied in high class

    communities, intelligent buildings, hotels, subway stations, gym and other high level venues.


    DescriptionParameters
    Lane Width500-900mm
    IPIP54
    Pass Speed30 persons/min
    Power supplyAC220V/110V,50/60Hz
    Drive ModeMotor drive
    Max Power Consumption40W
    Opening time0.5S
    Humidity≤90% coagulation free
    Noise≤50dB
    Service Life5,000,000 cycles
    Working Environment-20°C~+60°C
    Gross Weight85KGS

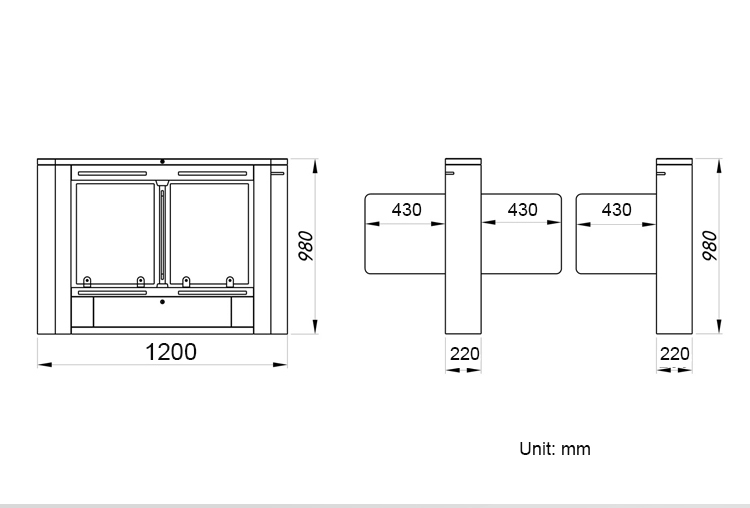

    PRODUCT DIMENSION


    FUNCTIONS & FEATURES

    1. With function of self-examine and alarm,it is convinient for maintain and use
    2. Being able to program operation state by the small keyboard in the main board.
    3. Arm will stop moving when it is blocked, which prevents pedestrians from being nipped or from hurt.
    4. Arms are automatically locked until opening signal is received
    5. Arms synchronization(adjustable)
    6. Light and sound alarm is generated when the illegal invasion and the tail followed.
    7. Unit can be adjusted to normal open or normal close to meet different conditions.
    8. Automatically reset function: It will automatically lock if the pedestrian hasn’t pass through the channel in the pre-set time after the opening. The passing time is adjustable.
    9. The arms automatically open when power off and automatically close when power is on, which accords with fire-fighting requirement.
    10. It can be directly controlled or managed by remote computer


    OPTIONS

    • Counter
    • Infrared reset function
    • Single direction or bi-direction are optional
    • Light and voice alarm function
    • The length of casework and arms are optional

    Mode of operation

    • Card IN/Card OUT
    • Card IN/Free OUT
    • Free IN/Card OUT
    • Free IN/Free OUT

    REFERENCE
