Die-casting aluminum alloy motor heavy duty 5 million operation
entrance barrier gate
ABOUT THE SN-BG102 BARRIER GATE
The SN-BG102 barrier gate, which manufactured by our company, adopt
the latest automatic technology and intelligent design ahead in
this field. Meanwhile our barrier gates have the advanced design,
such as humanization clutch device, balance device(e.g), which
makes our barrier gate work more safely and conveniently. This
barrier gate is suitable for indoor as well as outdoor parking
area, Parking lots, toll gate, goods yard, railway crossing,
commercial premises, apartment block access shopping malls,
hospitals, stadiums, business centers,etc.
DIFFERENT SPEED WITH BOOM LENGHT AND BOOM TYPE FOR YOUR CHOICE
| Model No. (BG) | Open/Close Speed | Max Boom Length | Boom Type |
| 102-16 | 6 sec | 6m | straight boom |
| 102-13 | 3 sec | 4.5m | straight boom |
| 102-11 | 1 sec | 3m | straight boom |
| 120-26 | 6 sec | 5m | 90 degree,Articulated boom |
| 102-23 | 3 sec | 3m | 90 degree,Articulated boom |
| 102-36 | 6 sec | 5m | 180 degree,Articulated boom |
| 102-33 | 3 sec | 3m | 180 degree,Articulated boom |
| 102-46 | 6 sec | 4.5m | Two-level, fence boom |
| 102-56 | 6 sec | 4m | Three-level, fence boom |
TECHNICIAL SPECIFICATION
| Working Temperature | -40℃~+75℃ |
| Voltage | 220V±10%, 110V±10%, 50/60HZ |
| Rated power | 120W |
| Relative humidity | ≤90% |
| Remote control distance | ≥30m |
| Net weight | 55kgs (without boom) |
| Arm Speed | 1s, 1.8s, 3s, 6s |
| Max boom length | 6 meters |
1.Model (BG): 102-11, 102-13, 102-16
2.Running time: 1s, 1.8s, 3s, 6s
3.Boom type: straight, folding, fence
4.Max Boom length: 3m, 4.5m, 6m
5.Boom dimension (WxH): 45x80mm
6.Boom weight: 3kg, 4.5kg, 6kg
7.Voltage: 220V ± 10%,110V ± 10%
8.Frequency: 50/60Hz
9.Motor voltage: 220V/110V
10.Power: 120W
11.Working temperature: -40°c~75°c
12.Protection grade: IP44
PRODUCT MECHANISM

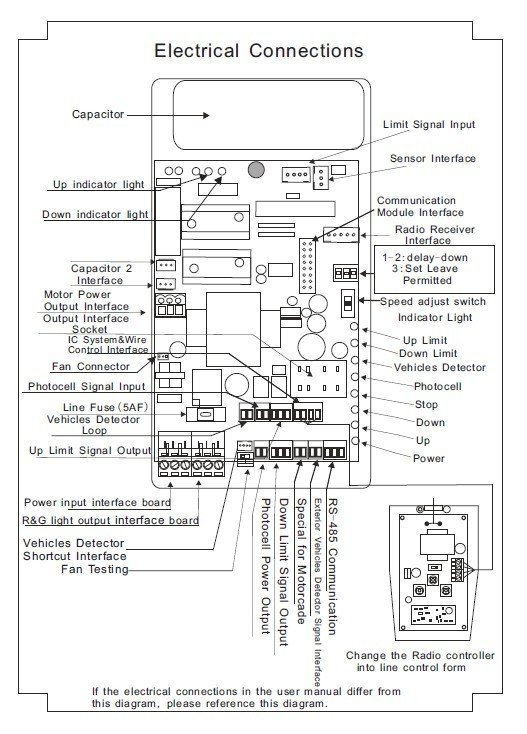

CONTROL BOARD
FUNCTIONS & FEATURES
1) Manual realease
2) Machine core with compression spring, effectively avoids the
accidents caused by spring breaking;
3) Die-casting aluminum alloy motor, precision and good at thermal
radiating;
4) Motor cooling fan, solving the problem of heat-protection;
5) Double safety limitswitches (photoelectricity limit switch/motor
memory sensor);
6) Reversing on obstacle;
7) Auto-closing;
8) Support the In frared Photocell for anti-bumping
function(optional);
9) Support the external and internal Vehicle Loop Detector;
10) Traffic light interface;
11) Wire Control ( switch signal) / remote control (418 Hz/433 Hz)
12) RS485 Communication module (optional).
PRODUCT APPLICATION
OUR FACTORY
FAQ
Q: What's the monthly production capacity for barrier gate?
A: 1000 units.
Q: What is the warranty for the machine?
A: 12 months.
Q: When will you make the delivery?
A: In general, Regular products: 2-7 days.
Q: How does your factory control the quality?
A: Quality controlling from the beginning to the ending.
Q: What is your MOQ?
A: Any quantity is acceptable.
Q: Payment term?
A: 30% deposit, 70% before delivery
