2.0mm Thickness Cold rolled Mild Steel Parking Control System
Vehicle Boom Barrier Gate
ABOUT THE SN-BG102 BARRIER GATE
This Automatic Barrier Gate provides a secure and convenient
solution of stopping unauthorized vehicle or giving access to
authorized vehicle, for parking lots with high traffic flow such as
toll gate, shopping center, exhibition center, hospitals, airport
etc.
OPTIONAL COLOR
MECHANISM
DIFFERENT SPEED WITH BOOM LENGHT AND BOOM TYPE FOR YOUR CHOICE
| Model No. (BG) | Open/Close Speed | Max Boom Length | Boom Type |
| 102-16 | 6 sec | 6m | straight boom |
| 102-13 | 3 sec | 4.5m | straight boom |
| 102-11 | 1 sec | 3m | straight boom |
| 120-26 | 6 sec | 5m | 90 degree,Articulated boom |
| 102-23 | 3 sec | 3m | 90 degree,Articulated boom |
| 102-36 | 6 sec | 5m | 180 degree,Articulated boom |
| 102-33 | 3 sec | 3m | 180 degree,Articulated boom |
| 102-46 | 6 sec | 4.5m | Two-level, fence boom |
| 102-56 | 6 sec | 4m | Three-level, fence boom |
PRODUCT DETAILS
TECHNICIAL SPECIFICATION
| Open/Close time | 1s, 1.8s, 3s,6s depends on the arm length |
| Arm Length | 3m-6m |
| Working Temperature | -35℃ to +75℃ |
| MTBF | >5million times |
| Power Supply | 220V±10 % 50/60HZ 110V±10 % 50/60HZ |
| Rated Power | 120W |
| Related Humidity | ≤90% |
| Remote Control Distance | >30M |
| Net Weight | 55KG |
1.Model : BG-102
2.Running time: 1s, 1.8s, 3s, 6s
3.Boom type: straight, folding, fence
4.Max Boom length: 3m, 4.5m, 6m
5.Boom dimension (WxH): 45x80mm
6.Boom weight: 3kg, 4.5kg, 6kg
7.Voltage: 220V ± 10%,110V ± 10%
8.Frequency: 50/60Hz
9.Motor voltage: 220V/110V
10.Power: 120W
11.Working temperature: -40°c~75°c
12.Protection grade: IP54

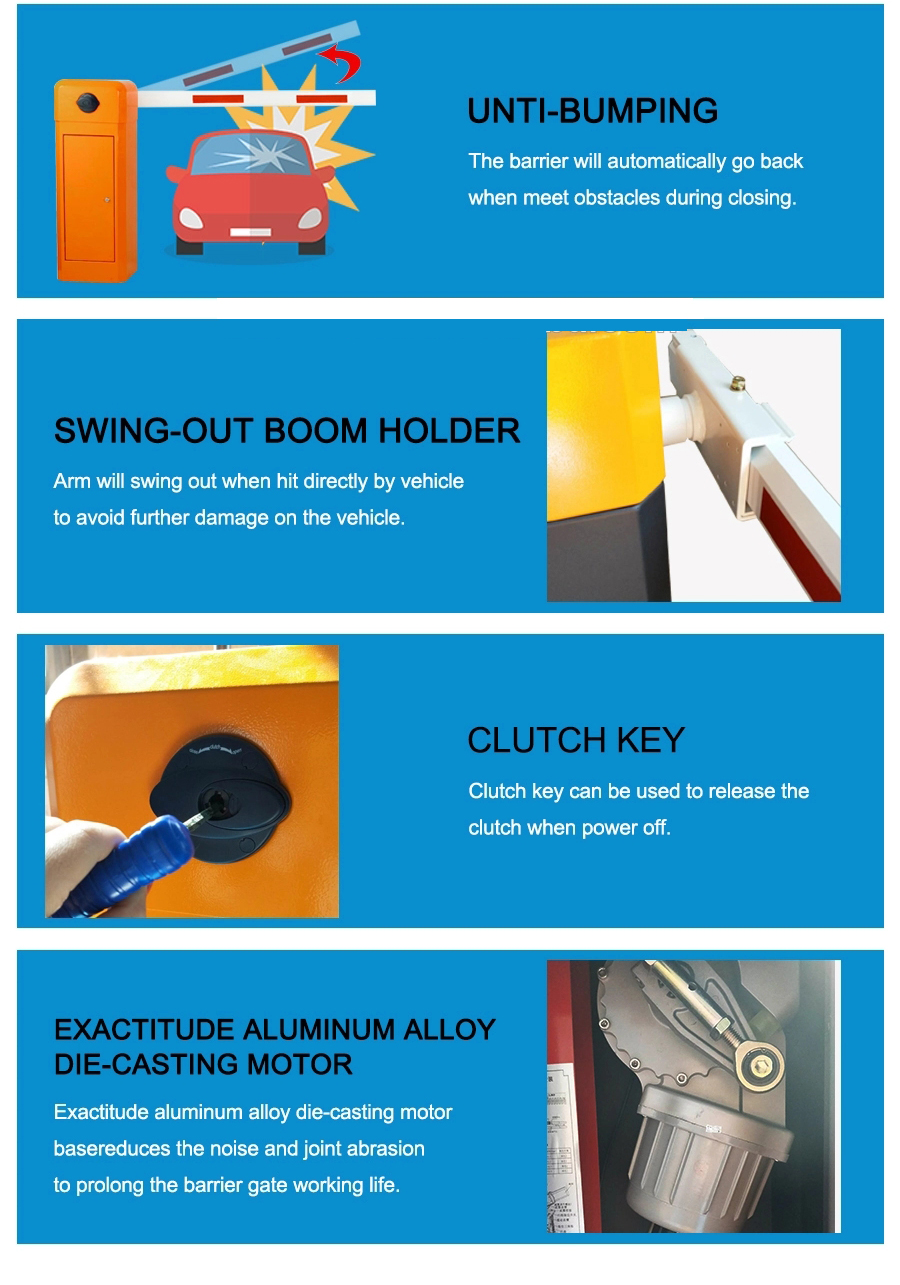

FUNCTIONS & FEATURES
1. Optional housing color: yellow, orange, white, red and blue etc.
2. Beam can be chosen from 3 meters to 6 meters, and barrier
closing time is also arranged from 1s to 6s.
3. Simplified design, easy installation and maintenance reduces
your labor cost
4. Infrared photocell interface, Loop detector interface and IC
system interface are reserved for the other functions.
5. The crank-arm linkage structure adapts to the compression
spring, which can be selected to avoid accidents caused by the
spring breaking.
6. Manual release device to operate the barrier when power failure.
7. Barrier motor with die-casting aluminum alloy is high-hermetic
and easy for heat dissipation.
8. Motor cooling fan to avoid the over-heating possibility.
9. Auto closing realization through menu setting on the control
panel.
10.Wire control, remote control optional
11. RS 485 Communication Module is compatible (Optional)
12. Boom swing-off protects boom and vehicle (optional)
13. Alarm when boom swing-off (optional)
FAQ
Q: What's the monthly production capacity for barrier gate?
A: 1000 units.
Q: What is the warranty for the machine?
A: 12 months.
Q: When will you make the delivery?
A: In general, Regular products: 2-7 days.
Q: How does your factory control the quality?
A: Quality controlling from the beginning to the ending.
Q: What is your MOQ?
A: Any quantity is acceptable.
Q: Payment term?
A: 30% deposit, 70% before delivery
