    High End Vehicle Tire Killer Electromechanical 220V Electric Drive 150mm Blade

    Ask Lasest Price
    Brand Name : SINOMATIC
    Model Number : SN-TK01
    Certification : CE/ ISO
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 3,00 pcs per month
    Delivery Time : 5-7 working days after payment received
    • Product Details
    • Company Profile

    High End Vehicle Tire Killer Electromechanical 220V Electric Drive 150mm Blade

    High end vehicle access control electromechanical operated black and yelloow color tyre killer


    GENERAL DESCRIPTION


    Electromechanical tyre killer is one of the most high-end vehicle access control products to prevent vehicle intrusion.


    Drive unit is placed into one end of the tyre killer, it stands above the ground level and is a complete assembly with the body.

    In this way, smooth transmission of motion is achieved, also minimized the effect of external factors.


    To operate this device, you just need to use the remote controller to raise the spikes and it will be raised within 2 seconds for blocking vehicles in single directional driveway.


    ADVANTAGES

    • Electromechanical operated

    • Blocking width from 2m to 6m

    • Blocking height of spike from above surface level: 550mm

    • Loop detector is provided for safety

    • Manual operation in case of power failure

    • The solid blocking spikes is 10mm thick and welded to the solid rotation axis at a distance of approx.150mm to each other


    PRODUCT DISPLAY


    MAIN FUNCTIONS & FEATURES


    1. Firm and anti-collision. The tyre killer body and spikes are made of 10mm thickness standard Q235

    carbon steel with strong load-bearing and destructive power.The structure is firm and durable.


    2. IP68 military protection standard.


    3. Speedy and Low noise.The hydraulic tyre killer is hydraulically powered through both the raise and

    lower cycles, taking much less time and lower level of noise to operate.Typical operating

    (opening /closing) time is 1-2 seconds.


    4. Safe and Reliable.Single phase drive motor, or a three phase motor to allow very high frequency of

    operation. This is ideal for large car parks or busy sites. Environment protection, low power consumption

    and high reliability.


    5. Flexible control method, The system support remote control and drive-by-wire typically. For remote control,

    the controller is available to work 30 meters far away from the blocker device(depends on the radio

    communication environment on site).


    6. Back up solution,Support manual operate mode,the spikes can lift or fall on level place by manual when power-off.


    7. Convenient maintenance. It is easy to check, test and fix the problem.


    8. Functional and Manageable: Safety accessories like photocells, inductive loop detectors , beam sensor can be

    integrated to the system very easily.


    9. It can be installed with other access control elements (for example bollards, road barrier, turnstiles, fire alarm system,

    traffic light) in order to achieve an access control check-point at the highest level of security.


    10. Wide range of optional configurations: Can be custom designed to suit your requirements and can be built

    in an almost infinite range of thickness and length to suit any roadway or level of security.


    SPECIFICATIONS


    MaterialA3 Steel
    Material thickness12/14/16mm
    Surface treatmentPaint with reflective strip
    IP rateIP67
    Specified colorBlack and yellow
    LengthCustomizable
    Width550mm
    Height85mm
    Max loading weight80T
    Weight0.3T each meter (Standard)
    Spike height150mm
    Spike thickness12mm
    Drive modeElectromechanical
    Working environment-40 °C ~+70 °C
    Control modeShort range wireless remote control/drive-by-wire
    Control distance≤100M
    Remote control distanceWithin 50M
    Raising/Lowering time≤1~2s
    Power supply220V electric drive
    System dynamic power180W

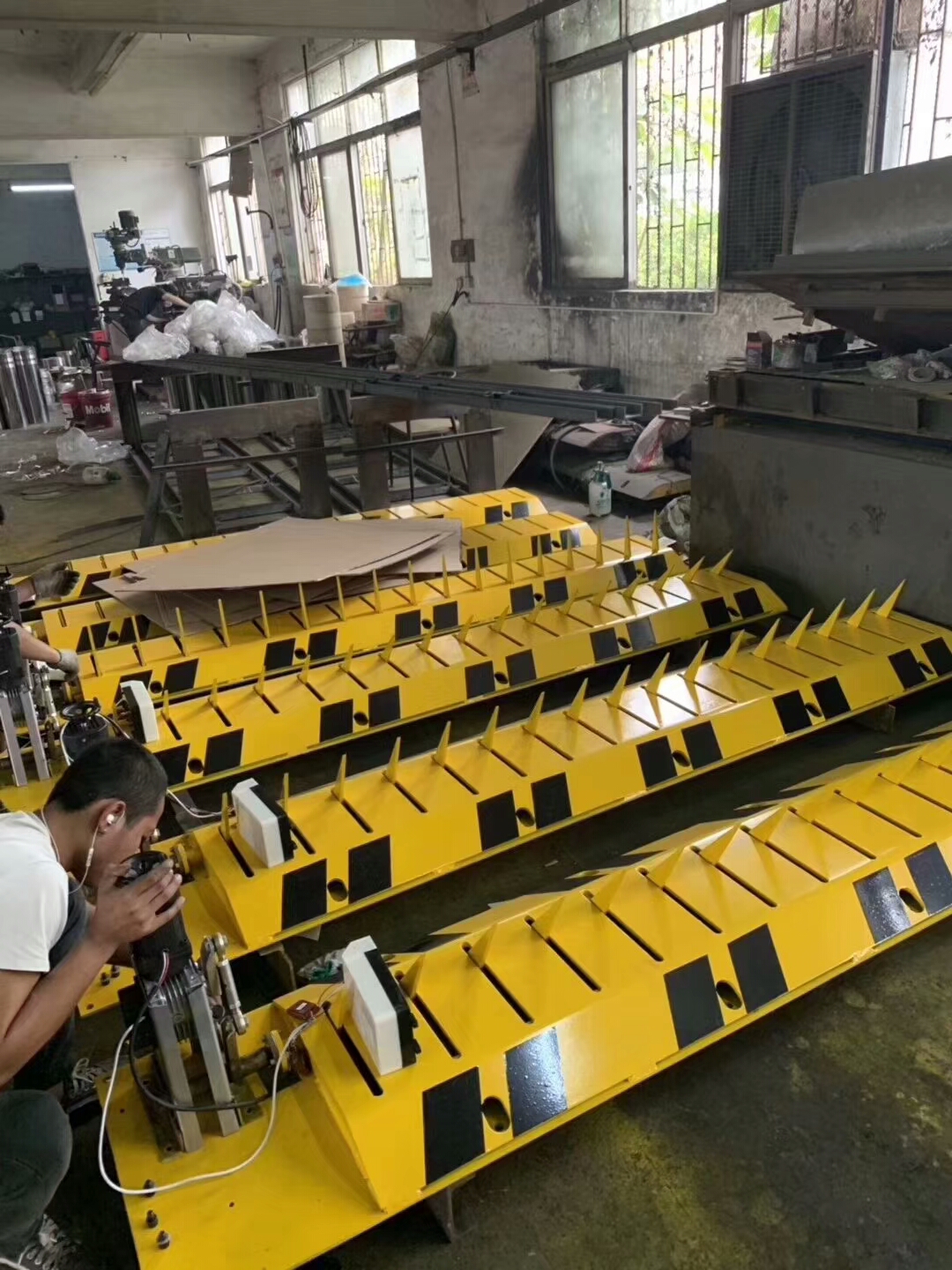

    PRODUCTION PHOTO



    CASE REFERENCE



    CUSTOMIZED SPECIFICATION


    CUSTOMIZATION
    L(mm)W(mm)H(mm)Rising height(mm)
    2,00055085150
    2,50055085150
    3,00055085150
    3,50055085150
    4,00055085150
    4,50055085150
    5,00055085150
    5,50055085150
    6,00055085150
