    SS304 Face Recognition 450mm Arm Turnstile Barrier Gate

    Ask Lasest Price
    Brand Name : SINOMATIC
    Model Number : SN-CWDAB01
    Certification : CE/ ISO
    Price : negotiable
    Payment Terms : T/T or western Union
    Supply Ability : 500 pcs per month
    Delivery Time : 5-10 working days after payment received
    • Product Details
    • Company Profile

    SS304 Face Recognition 450mm Arm Turnstile Barrier Gate

    Human body temperature detection with face recognition integration entrance drop arm turnstile


    Drop Arm Turnstile Specification


    Power supplyAC220±10%V 50Hz/AC110±10% 60Hz
    Power consumption40W
    Access device input voltageDry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
    Max flow rate25 to 30 person per minute
    Housing dimensionOEM
    Arm length450mm(default)
    Working temperature-20°C~+60°C
    Current3A
    Control circuitDC24
    Working humidity0~95%RH
    Time of opening or closingless than 2S
    Normal life5 million times

    Drop arm Turnstile Features & functions


    1. Fault detection and alarm functions, easy to use and maintenance.

    2. The running status can be programmed and controlled with the built-in keyboard on the main board.

    3. Mechanical anti-pinch function.

    4. Anti-breakthrough function. The gate is locked automatically until opening signal received.

    5. Synchronization functions (for dual gates)

    6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.

    7. Gate can be set as normally open or normally closed.

    8. Can be used with variety of card readers: IC / ID card readers, barcodes, fingerprints, etc. (Access controller needed).

    9. Direction can be set as uni-direction or bi-direction.

    10. LED direction indicator.

    11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.

    12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.

    13. Support infrared photocell for anti-pinch and reset function

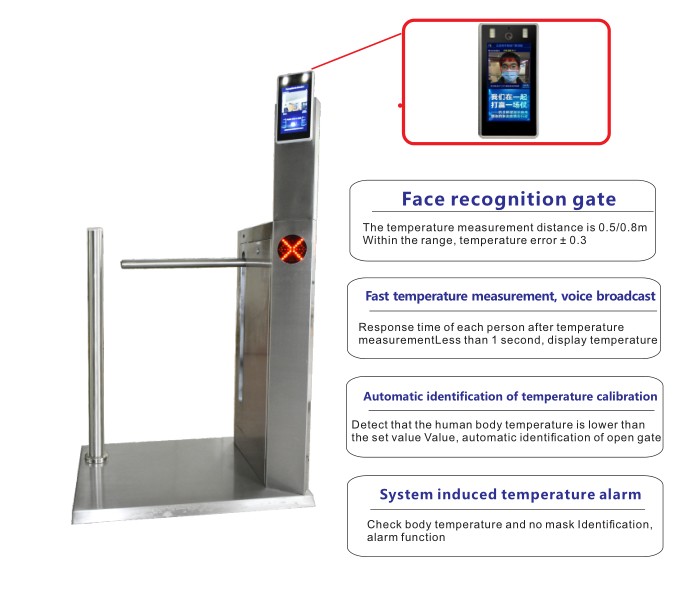

    Face temperature measurement device Functions & features

    Industrial chip platform and system

    • Use Hisilicon chip, mini Linux, high stability

    • low power consumption (as low as 4W)

    • Support multiple styles of shell and customized appearance

    High precision face recognition algorithm

    • Embedded algorithm, millisecond comparison

    • Accurate monocular detection, safe and efficient

    • Up to 99.8% accuracy

    Multi scene image exposure and correction algorithm

    Support temperature measurement, display and high temperature warning

    Support temperature interface protocol

    Support mask reminding


    Face temperature measurement device specs


    Temperature measurement distance<1m
    Optimum distance0.5-0.8m
    Temperature measurement accuracy±0.3℃
    Measuring range-40 to 85℃
    Effective emissivity0.97±0.02
    Wavelength size5.5-14um
    Response time<1s


    Fields of Application
    ● Station, dock, site, school, supermarket entrance control management
    ● Exhibition center, swimming pool, tourist attractions and other ticket entrance and exit control management
    ● Enterprises and institutions attendance, access control, consumption entrance and exit control management
    ● Special channel access control


    Product dimension
