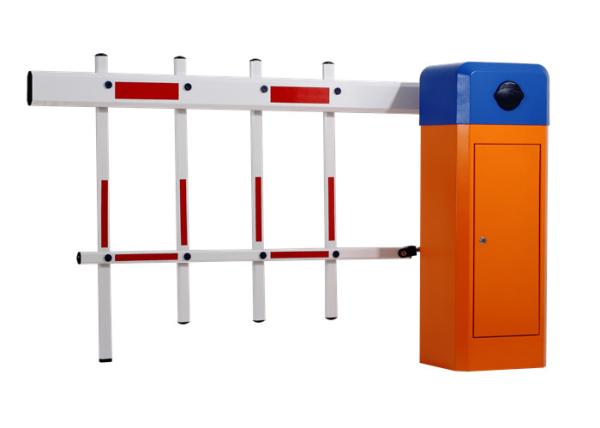

5 Million Lifetime AC220V/110V heavy duty Orange blue color boom
barrier gate
Introduction
This Automatic Barrier Gate provides a secure and convenient
solution of stopping unauthorized vehicle or giving access to
authorized vehicle, for parking lots with high traffic flow such as
toll gate, shopping center, exhibition center, hospitals, airport
etc.
Technician specification
| Product Name | Traffic Barrier Boom Gate/Parking Barrier Gate |
| Model Nuber | SN-BG102 |
| Operation Time | 1s,1.8s,3s,6s |
| Arm Type | Straight arm,fence arm,folding arm |
| Rating Voltage | AC220V/110V±10%,50/60HZ |
| Power Supply | 120W |
| Size | 320*280*920mm(L*W*H) |
| Material | 2.0mm thickness cold roll steel sheet |
| Remote Control Distance | ≥30meters |
| Working Temperature | -35℃ to +75℃ |
| Packing | 1030*380*450mm,with seven layers carton size inside with air bubble film for protection |
| Delivery | By sea:big order(more than 100 sets) cheap,suggested By Air or Express: sample order,quick and cheap,suggested |
| Payment | T/T,Western Union,Moneygram, Credit card,Cash(according to your
requirement) |
| MOQ | 1 set |
Production photo
Details:
DIFFERENT SPEED WITH BOOM LENGHT AND BOOM TYPE FOR YOUR CHOICE
| Model No. (BG) | Open/Close Speed | Max Boom Length | Boom Type |
| 102-16 | 6 sec | 6m | straight boom |
| 102-13 | 3 sec | 4.5m | straight boom |
| 102-11 | 1 sec | 3m | straight boom |
| 120-26 | 6 sec | 5m | 90 degree,Articulated boom |
| 102-23 | 3 sec | 3m | 90 degree,Articulated boom |
| 102-36 | 6 sec | 5m | 180 degree,Articulated boom |
| 102-33 | 3 sec | 3m | 180 degree,Articulated boom |
| 102-46 | 6 sec | 4.5m | Two-level, fence boom |
| 102-56 | 6 sec | 4m | Three-level, fence boom |
MACHINE CORE DIAGRAM
MAIN RELEASE CLUTCH
CONTROL BOARD
PRODUCT ACCESSORIES
FUNCTIONS & FEATURES
1. For security, the barrier will automatically go back when meet
obstacles during closing.
2. Beam can be chosen from 3 meters to 6 meters, and barrier
closing time is also arranged from 1s to 6s.
3. All the operation process is soft without any noise and shaking.
4. Infrared photocell interface, Loop detector interface and IC
system interface are reserved for the other functions.
5. Green light and red light are used inside for indication the
position of the beam.
6. Manual release device to operate the barrier when power failure.
7. Barrier motor with die-casting aluminum alloy is high-hermetic
and easy for heat dissipation.
8. Motor cooling fan to avoid the over-heating possibility.
9. Auto closing realization through menu setting on the control
panel.
10.Wire control, remote control optional
11 Infrared protection (requires correlation infrared device)

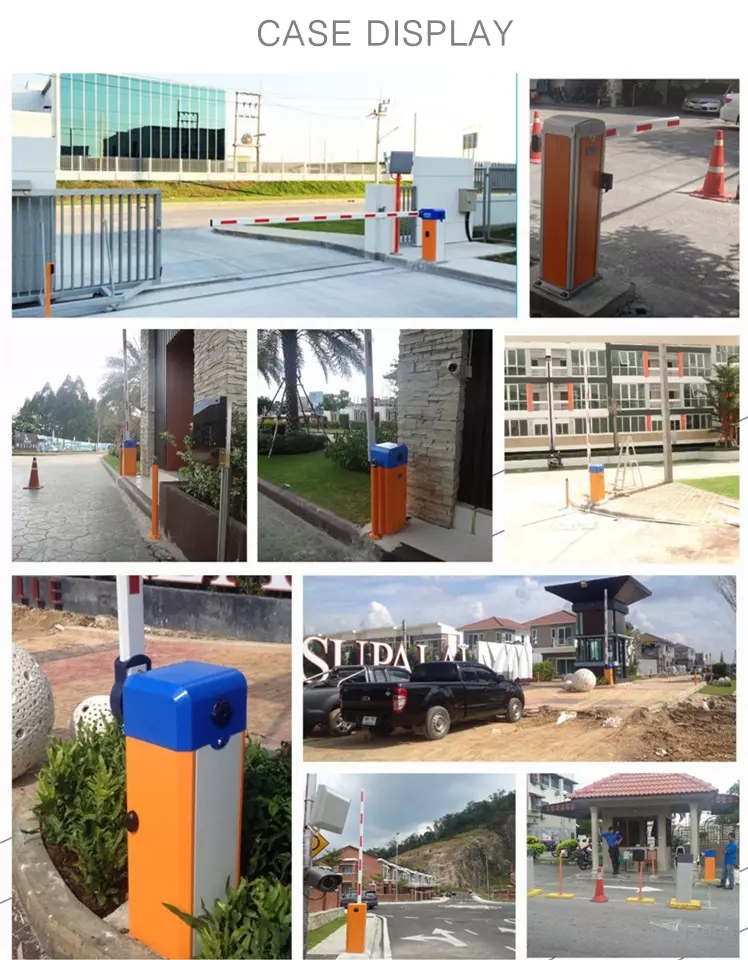

CASE DISPLAY
FAQ
Q: What's your monthly production capacity for barrier gate?
A: 1000 units.
Q: What is the warranty for the machine?
A: 12 months.
Q: When will you make the delivery?
A: In general, Regular products: 2-7 days.
Q: How does your factory control the quality?
A: Quality controlling from the beginning to the ending.
Q: What is your MOQ?
A: Any quantity is acceptable.
Q: Payment term?
A: 100% for sample. 30% deposit, 70% before delivery for volume
order.
