    Full Height Bi Directional SS304 Pedestrian Turnstile Gate 0.2s

    Ask Lasest Price
    Brand Name : SINOMATIC
    Model Number : SN-FHT02
    Certification : CE/ ISO
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 3,00pcs per month
    Delivery Time : 5-10 working days after payment received
    • Product Details
    • Company Profile

    Full Height Bi Directional SS304 Pedestrian Turnstile Gate 0.2s

    High Security Mechanical Pedestrian Access Management overhead full height turnstile gate


    PRODUCT DESCRIPTION


    Full height turnstile is designed to control pedestrian entering and exiting, adopts stainless steel #304, double brushed surface treatment,

    dust-proof, rustproof, rainproof design, suitable for indoor and outdoor use, easy to integrate with other read/write devices, and widely use for applications like stadium, apartment, gym, museum, station, library and factory etc.


    The SINOMATIC full height turnstile door is an attractive turnstile that is easily capable of handling high volume and abusive conditions. The compact unit makes it simple to construct a multiple lane set-up while the variety in colors allows you to match this turnstile perfectly to your lobby or branding.


    PRODUCT SPECS


    Model
    SN-FHT02
    Size
    2300*1377*2240mm
    Material
    1.5mm 304 SS304
    Passage Width
    600mm
    Passage direction
    Single directional/Bi-directional
    Pass rate
    30 persons/minute
    Operating time
    0.2 seconds
    Power input
    AC100-240V,50/60HZ
    Working voltage
    24V
    Working humidity
    30%~95%
    Working temperature
    -40℃~+70℃
    Working environment
    Indoor/ Outdoor available
    Communication interface
    Dry contact
    Mechanism
    Solenoid Lock mechanism+cam+drapper
    MCBF
    5,000,000 Cycles
    Application
    Factory, Stadium, GYM, Museum, etc

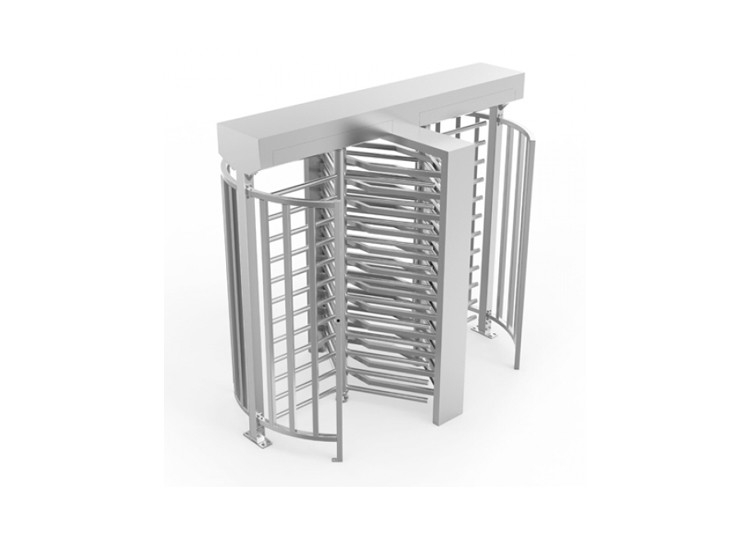

    PRODUCT PHOTO

    Full Height Bi Directional SS304 Pedestrian Turnstile Gate 0.2s


    Features of Full Height Turnstile:


    • Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.
    • Rainproof housing, anti-corrosion coating iron, 304 or 316 stainless steel.
    • Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.
    • If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.
    • Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.
    • Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.
    • Innovative and unique mounting surface ensures simple and convenient installation for system integrator.
    • Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc. (Access controller needed)
    • Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
    • The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.

    Full Height Bi Directional SS304 Pedestrian Turnstile Gate 0.2s
