Automatic High Precision Infrared Sensor Body Temperature Testing Washing-Free Hands Sanitizer

1. Product introduction and classification
This product measures the human body temperature by collecting infrared thermal radiation from the human
body, and then voice the temperature to human with reports of whether the human body temperature is
normal. After the test is completed, the outlet will automatically flow out the wash-free hand sanitizer to
sterilize the hands when putting the hands near the outlet. This is a multi-functional automated product with
both temperature measurement and sterilization functions. The operation is simple. Users only need to point
the probe to the forehead or wrist to measure the human body temperature with voice broadcast about the
body temperature. After the test is completed, put the hand near the liquid outlet and you can automatically
get wash-free hand sanitizer for disinfection. This product could be widely used in schools, hotels, hotels,
customs, homes or other public property.

2. Product features
● Using high-precision infrared sensors, stable and reliable performance.
● Automatic body temperature detection with automatic washing-free hands sanitizer integrated, which
makes disinfection more convenient.
● Strong environmental temperature adaptability, could be used normally in complex environments:
● Large-size digital display, which is clear and soft.
● Two temperature units: Celsius and Fahrenheit
● with both Chinese and English language, could be used in most regions
● Intelligent power saving and automatic wake-up function.

3.Product appearance description

4．Operating instruction
1. Instructions:
1. Open the battery cover on the back of the product, install 4 AA batteries or connect the 5V
power supply to the charging port.
2. Turn the power switch to ON.
3. When the forehead or wrist is 0-5CM away from the infrared sensor, the product
will automatically detect the body temperature and report the results by voice
4. Place your hand 5cm below the liquid outlet. After infrared sensor sensing your hand, it will
automatically flow out hand sanitizer for disinfection

Note: Before using the product, the product should be fixed using the supporting bracket or other
methods, and the product cannot be turned upside down.

This product uses 4 AA batteries, please do not use used and new batteries together, so as not to
affect the use of the product.
Before using hand sanitizer, please observe the remaining amount of hand sanitizer. If the hand
sanitizer is insufficient, please add in time.

Specifications:

Technical parameters
Product name: Automatic sensor-supported and hands-washing-free temperature measurement machine
Product model: YAD-001
Product size: 128MM * 70MM * 300MM
Product material: ABS + PC
Maximum power: 3W
Power supply: 4 AA batteries or DC5V 2.1A
Product function: detect body temperature and disinfect hands by sensor-supported sanitizer
Body temperature display: digital display and voice broadcast
Measurement method: infrared sensor
Measuring distance: 1-5CM
Measuring range: body temperature (32 ° C ~ 42.9 ° C, 89.6 ° F ~ 109.2 ° F)
Allowable error: ± 0.2 ℃
Measurement time: 2 seconds
Filling bottle capacity: 300ML
Liquid type: washing-free hands sanitizer, common hands sanitizer
Discharge method: infrared sensor
Working Environment: 10℃~35℃(50℉~95℉), humidity < 85%
Storage environment: -20 ℃ ~ 55 ℃ (-4 ℉ ~ 131 ℉) humidity <85%
Temperature unit: Celsius (° C) / Fahrenheit (° F)
Weight: 670g

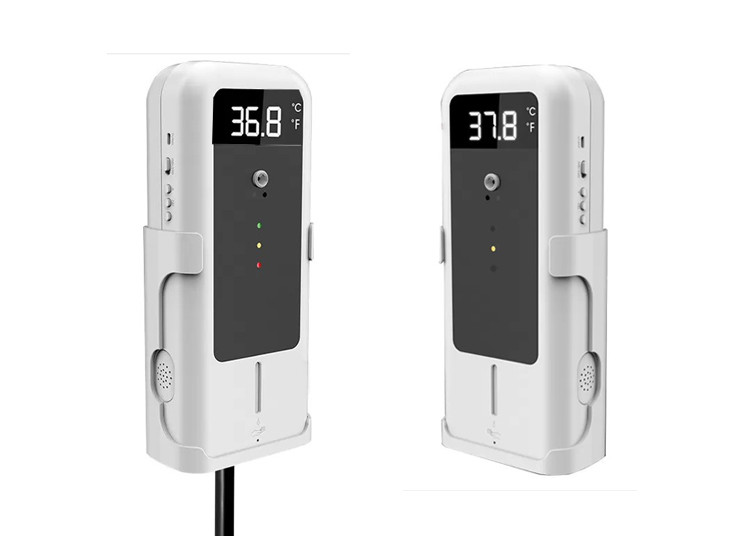

PRODUCT PHOTO
