Millimeter wave band Non-contact vehicles and pedestrian 6m
detection distance Radar detector
Brief Introduction
vehicle radar sensor is a non-contact detection device for targets
such as vehicles and pedestrians. It works in the millimeter wave
band. The radar detector transmit linear frequency-modulated
continuous wave signals to the target to perform high-speed
real-time processing on the target's reflected echoes to achieve
fast target Detection.
PRODOCT SPECIFICATIONS
| Product | Radar sensor |
| Working voltage | 7-28VDC |
| Working consumption | 1.2W |
| Detected | Person, car |
| Background threshold | Auto or manual |
| Sensitivity | adjustable |
| Detect distance | Max. 6m(adjustable) |
| Dimension | 105mm x 78mm x 26mm |
| Communication port | RS485, on and off signal |
| Dimension | 115x85x31.2mm |
| Material | ABS+PC |
| Protection | IP65 |

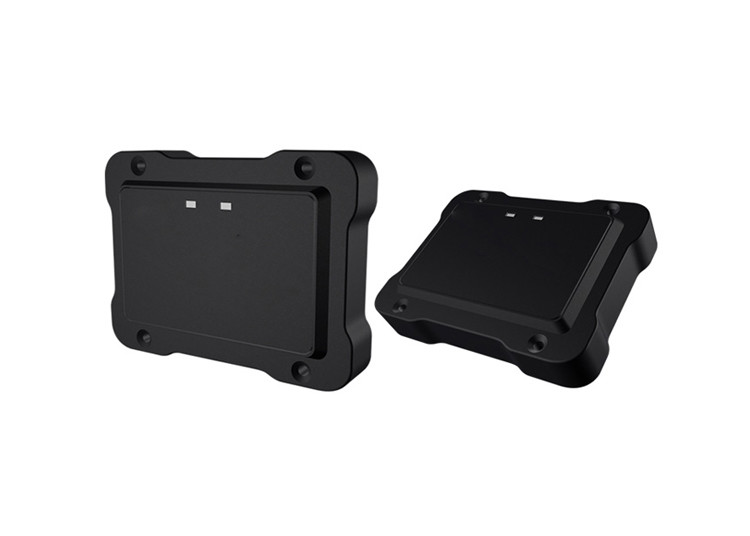

PRODUCT PHOTO
MAIN FEATURES AND ADVANTAGES
24GHz Anti-collision don't need to cut the ground, the installation
is simple.
It can distinguish pedestrians and vehicles, with strong
anti-interference, safety and reliability.
Wide range of use, most of the road gates in the general market,
compatible with straight rod machines, fence machines, curved arms,
advertising gates, airborne gates.
Internal circuit adopts high quality electronic components, with
stable performance.
The Vehicle Detector is mainly used to detect the existence and
passing of vehicles.
Are you still troubled to install loop detector and loops with the
below disadvantages?
1) Cutting ground-Waste time and not good looking;
2) Complex wiring-Messy and Difficult;
3) Mud road-Cannot fix the loop;
4) Cannot detect big truck, trailer or other vehicles with
high-bed.
Why choose barrier radar detector?
1) Can replace loop detector completely; no wiring layout, save
time and cost.
2) Easy installation; Easy parameters setting; Adjustable distance
from 1 to 6m.
3) Work in range of 24-24.5Ghz without effects from any climatic
environment.
4) Can effectively distinguish vehicles and humans to avoid any
hitting.
5) Can be used for trigger detection, e.g. trigger camera to
capture the picture.
6) Can be used to trigger the alarm in the warning zone.
7) Can record the traffic and no data is lost when power is off.
Cost-effective short range 24GHz radar sensor for access control
It adopts FMCW modulation mode, which can accurately detect people
& vehicles, and it has high ability to
distinguish people & vehicles, so to achieve anti-hit function.

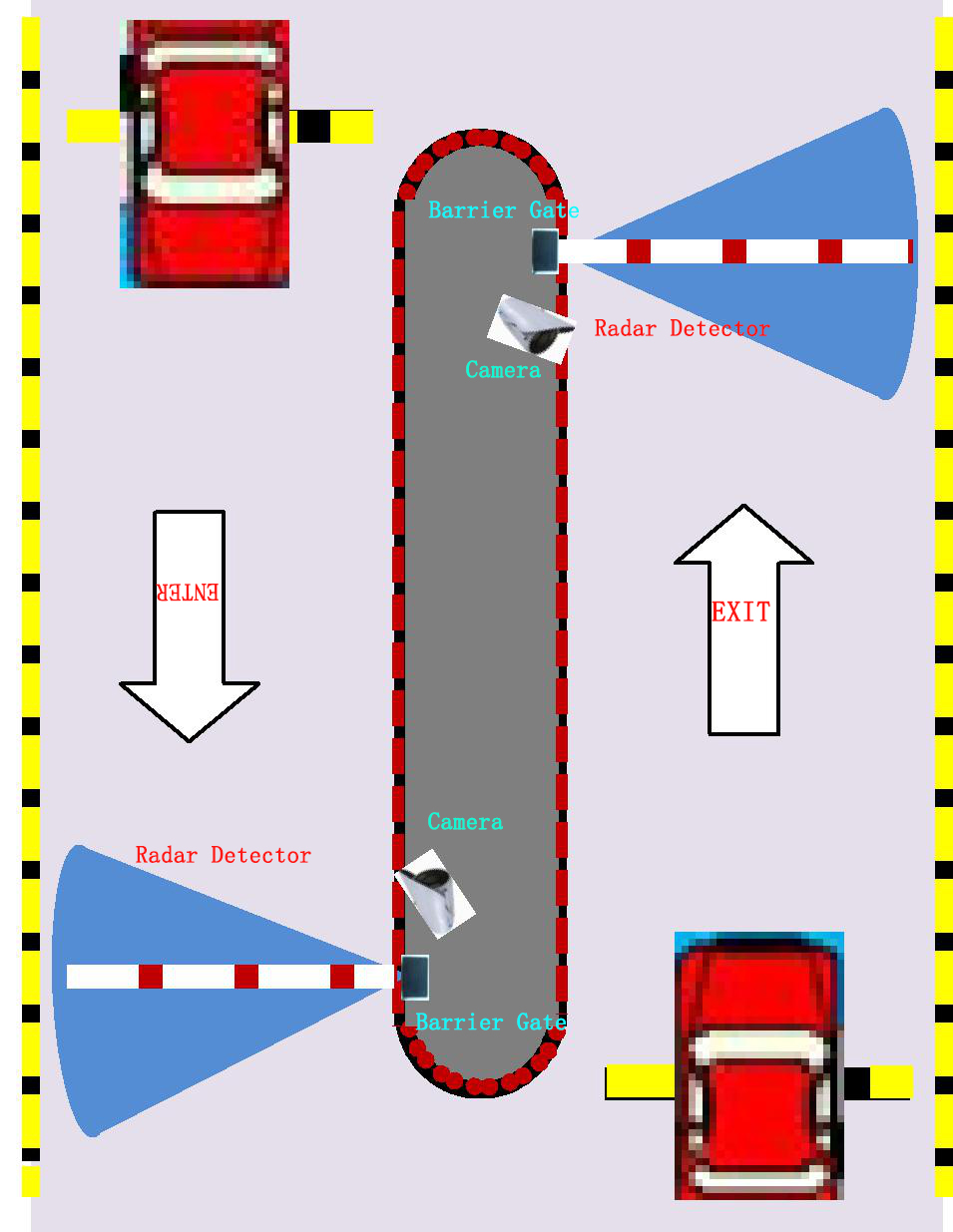

Trigger radar & Anti-hit radar
Advantages in the application of access control system
1, Advanced signal processing technology can be used to detect
pedestrians & vehicles stably, and effectively prevent "smashing
vehicles and people".
2, Simple installation, no need to destroy the ground, greatly
reducing the difficulty of construction and maintenance costs.
3, It has communication function of RS485, which is convenient and
quick for parameter configuration.
4, Radar detection distance and area can be adjusted, and it can
effectively prevent escape incidents.
5, Integrated design, small and beautiful, easy to integrate inside
& outside.
6, Strong environmental adaptability, radar performance is not
affected by light, dust, rain and snow, haze and other harsh
environment.
7, Long service life: The life of the ground coil is generally 1~2
years, but the radar can reach 5~10 years.
