Metro Subway Station SS314 600mm to 900mm passage High Speed Gate

PRODUCT DESCRIPTION

Hi-Speed Swing Gate is built with high torquebrushless motor; with the advantage of low current consumption and low maintenance.
Speed of the motor (barrier) is easily adjusted with the purpose-build main board.

Stainless steel cladding with aluminium end cover. The end cover with Status Indication, is desgined to
accomodate various type of reading and scanner device.

The length of the pedestal can be lengthened to suit customer request and site profile.
The top cladding can be raised and modified to accept embedded lift display screen, face scanner post, etc.

With a ARM7 embedded system as the core for control, the brushless DC turnstile control mainboard is characterized by faster processing, stronger function extension capability, and more stable performance. It is applicable to the control of turnstiles with a brushless DC motor.

PRINCIPLE OF OPERATION

Barrier wing are operated with position sensing encoder and magnetic braking.

Fitted with Infrared sensors to prevent unauthorised access, reverse travel and tailgate.

Upon receiving command signal authorizing access:
• The barrier wing opens to allow access.
• After user has passed, the wing close.
•If user does not pass, the wing will close after a pre-determined period.

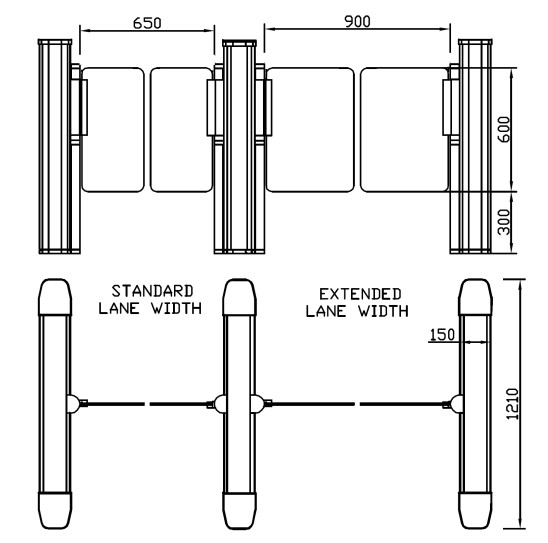

DIMENSION

PRODUCT SPECIFICTAIONS

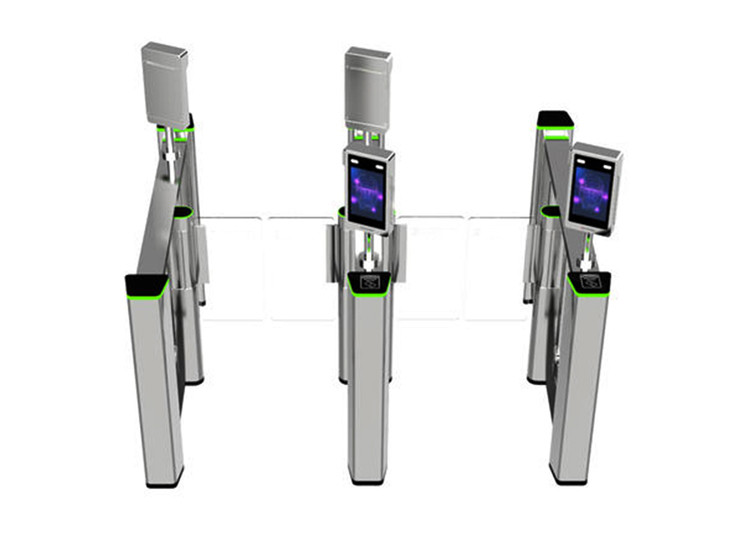

PRODUCT PHOTO

FEATURES AND FUNCTIONS

1. working method can be set by the buttons on the main panel

2. Anti-pinch, anti-collision. If there is block during return of gate, motor stops working automatically. Reset again after a default delay.

3.Anti-illegal in, anti-intrusion, auto close for reverse direction.

4. Anti-collision, gate closes when no valid signal is given.

5. Protection functions for gate, gate open to prevent motor from being damaged if there is outer force collision.

6. Gates can be synchronous

7.Auto-reset. If not go through in a preset time, pass right would be cancelled automatically. (time adjustable)

8. Reset function by photocells

9. Anti-pinch function by photocells

10.Compatible with Access control system, consumption system, ESD system, E-ticket system and so on.

11. One way or two way control 12. Unit can be controlled and administered by remote control 13. Led lamp indicator

CASE REFERENCE

Application

Intelligent high speed gate ---can be compatible with IC card, ID card, barcode card, fingerprint reading card recognition device used for staff, provide civilized, orderly access methods; effectively manage the access of staff. Can be widely used in the station, wharf subway, factories, office building, hotel, clubs, intelligent community, enterprises and institution that need intelligent access management.

FAQ

1.What is your products biggest advantage?
-------- DC Brushless Motor , no maintenance all the of life, No Attrition, Low Noise ,Hight Intelligence.

2.What is your flap gates opening and closing time ?
-------- <=0.4s .

3.What is the Swing barrier gate Working environment ?
-------- They can be used indoor and outdoor(with shelter)

4. Can I customize it ?
--------Yes, Welcome . We are the manufacturer , We are welcome OEM .

5.What's you warranty?
-------- 1 year time warranty .
