    Waist Height 0.2S 30people/Min Revolving Turnstile Door 40W

    Ask Lasest Price
    Brand Name : SINOMATIC
    Model Number : SN-HHT01
    Certification : CE/ ISO
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram, L/C, D/A, D/P
    Supply Ability : 3,000pcs per month
    Delivery Time : 5-10 working days after payment received
    • Product Details
    • Company Profile

    Waist Height 0.2S 30people/Min Revolving Turnstile Door 40W

    30 people per min passing speed waist height revolving turnstile door


    Use:
    1. Office space: commercial buildings, government offices, etc;
    2.Science unit: universities, research institutes, libraries, etc;
    3. Commercial service establishments: supermarkets, shopping malls, hotels, clubs, banks, etc;
    4. Leisure and entertainment: parks, scenic areas, playgrounds, etc;
    5. Transportation Sites: bus, train, subway stations, airports and so on.


    Basic parameters:

    DimensionsL1400 mm X W300mm X H1000 mm
    Cabinet material38 round tube, 1.2mm SS304
    Channel width≤ 500mm
    Ambient temperature-20 degrees to 60 degrees
    Working environmentindoor and outdoor

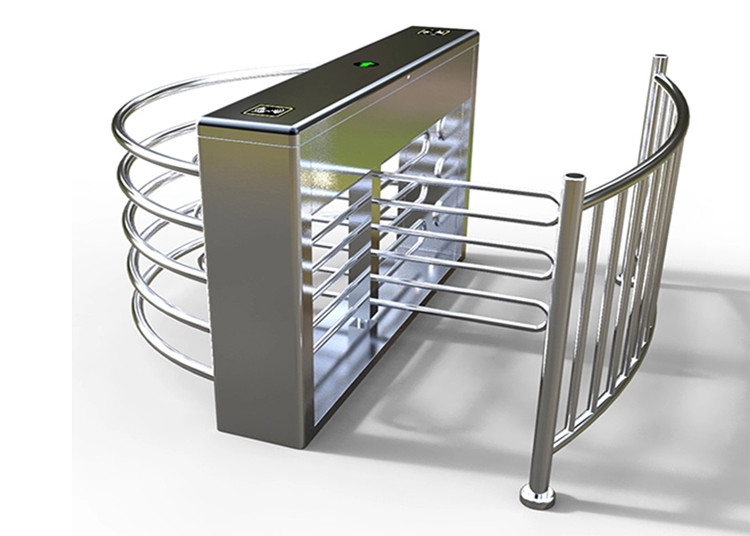

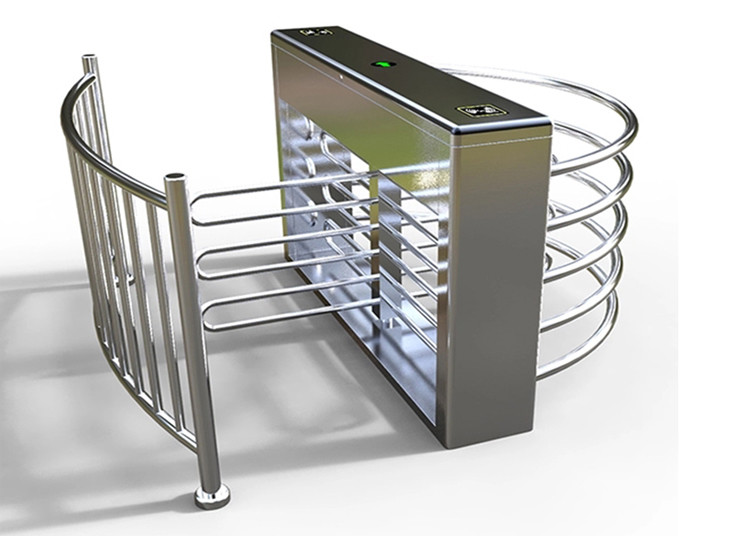

    PRODUCT PHOTO


    Waist Height 0.2S 30people/Min Revolving Turnstile Door 40WWaist Height 0.2S 30people/Min Revolving Turnstile Door 40W


    Technical Parameters:

    Input voltage100V~240V
    Driving voltage24V
    Equipment power40W
    Response time0.2S
    Passing speed30 people / min
    Communication interfaceRS485(optional)
    Communication distanceless than 1200m
    Open brake signal inputdry contact
    Switching door timeLess than 1S

    Features of half height turnstile barrier

    • Cabinet is made of 304 or 316 stainless steel.

    • Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.
    • If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.
    • Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.
    • Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.
    • Innovative and unique mounting surface ensures simple and convenient installation for system integrator.
    • Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc. (Access controller needed)
    • Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
    • The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.
