    SUS304 DC24V Swing Barrier Turnstile RS232 With LED Indicator

    Ask Lasest Price
    Brand Name : SINOMATIC
    Model Number : SN-SB02M
    Certification : CE/ ISO
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram, L/C, D/A, D/P
    Supply Ability : 3,000pcs per month
    Delivery Time : 5-10 working days after payment received
    • Product Details
    • Company Profile

    SUS304 DC24V Swing Barrier Turnstile RS232 With LED Indicator

    Square footprint Automatic SUS304 DC24V Swing Barrier Turnstile with top LED indicator


    Introduction:

    All the gates models are space efficient security barrier gate, with a compact design, yet offer sufficient space to integrate any access control system.


    They can be mounted with display, passage counter,card reader,token operation traffic lights,command console,alarm system against unauthorized entries,interfaced with a PC through a RS232(RS485,TCP-IP) line.


    The unique swing arm feature provides a fail-safe safety solution in case of an emergency or power failure,providing egress in case of crisis evacuations.Durability with minimal maintenance means years and millions of trouble free passages. The gate creates a secure environment in.for example,a reception area.


    Our gates are used in applications including stadiums and arenas,perimeter and interior security,recreation and amusement parks,retail crowd control,transit fare collection and lobby access control.

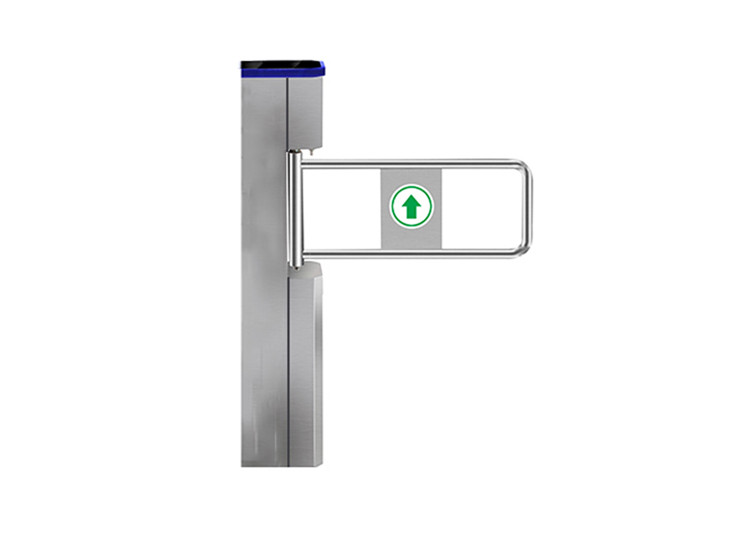

    PRODUCT PHOTO

    SUS304 DC24V Swing Barrier Turnstile RS232 With LED IndicatorSUS304 DC24V Swing Barrier Turnstile RS232 With LED IndicatorSUS304 DC24V Swing Barrier Turnstile RS232 With LED Indicator


    Structure parameters
    Housing material304 grade stainless steel
    Thickness1.2mm
    Surface treatmentBrushed finish
    Arm materialAcrylic / SS304
    Technical parameters
    Size200*200*1000mm
    Lane width550--800mm for single unit
    Passing speed30-40 people/min
    Open/close speed0.5 sec
    Weight20KG
    Turning angle90 degree
    infrared sensorsOptional
    MCBF5.000.000 times
    ApplicationIndoor or outdoor
    Rotating directionalSingle way or Bi-directional adjustable
    Noise<55db
    Operating temperature-20 to 60℃
    Relative humidity5% to 95%
    PackageCarton box for sample,Wooden case optional
    Electronic parameters
    Power supply110-220V/AC, 50/60HZ
    Rated power100W
    Input signalDry contact
    Driving motorDC brushless motor
    Method of positionEncoder to make sure accurate position

    SPOTLIGHTS


    1. Innovative design and exquist maching to meet the high end access control solution


    2. Fast pass speed Turnstile to ensure an orderly access of 30-40 people per minute


    3. SS 304 Stainless Steel anti-fingerprint


    4. Brushless Motor to make it a good performance


    5. Easy operation and free maintenance


    6. 12 month product warranty.


    7. Custom design shape and logo, for large amount, custom logo available for free.


    8. Supported by professional engineers.


    9. Special discount of our distributors or agents in their area.


    10. Packing in carton for sample, can pack it by wooden case for bulk order with better protection grade.


    MAIN FEATURES


    1. Stainless steel housing, rain-proof, novel and beautiful.


    2. The electric control adopts brushless motor to drive stable and reliable, and has low failure rate.


    3. Length of arm: Valid lenght from around 800mm


    4. Fault detection and alarm functions, easy to use and maintenance.


    5. The running status can be programmed and controlled with the built-in keyboard on the main board.


    6. Support infrared photocell for anti-pinch and reset function.


    7. Anti-breakthrough function. The gate is locked automatically until opening signal received.


    8. Synchronization functions (for dual gate equipment).


    9. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the
    authority of the current user automatically.


    10. Gate can be set as normally open or normally closed.


    11. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Via dry contact signal)


    12. Direction can be set as unidirectional or bidirectional.


    13. The device can be connected to management computer to realize remote control and management.


    14. LED direction indicator (optional)


    15. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.
