    24VDC 40W 30person/Min Full Body Turnstile 610mm Width

    Ask Lasest Price
    Brand Name : SINOMATIC
    Model Number : SN-FHT01
    Certification : CE/ ISO
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 3,00pcs per month
    Delivery Time : 5-10 working days after payment received
    • Product Details
    • Company Profile

    24VDC 40W 30person/Min Full Body Turnstile 610mm Width

    Indoor / Outdoor 30 person per minute flow rate overhead full height revolving door system

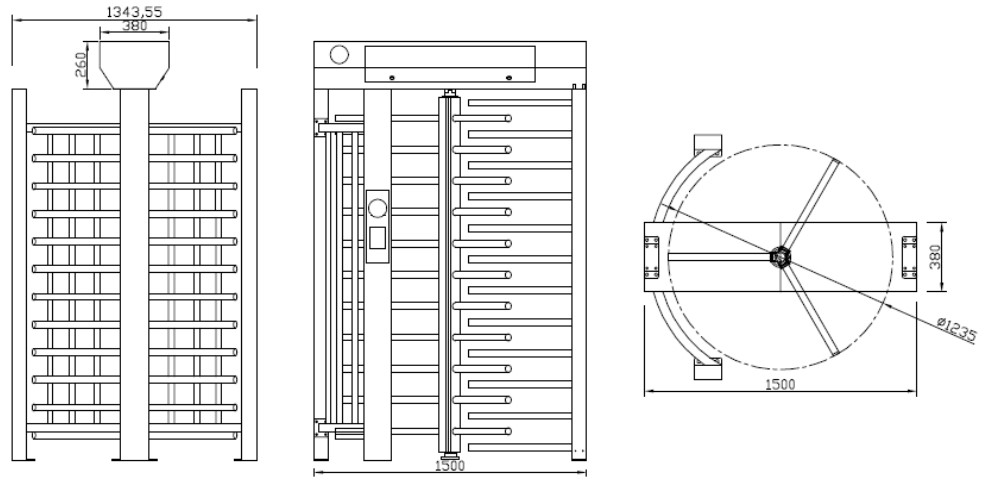

    PRODUCT DIMENSION



    FEATURES OF SINOMATIC FULL HEGIHT TURNSTILE


    1. Long-life performance, high operation dependability and fast response


    2. The mechanism is equipped with an automatic regulated hydraulic buffer device. No noise and impact when running


    3. Single directional or Bi-directional is selectable


    4. Automatic reset function: turnstile arm will lock automatically within 5s (can be setting) if passenger delay to entry


    5. Anti-tailing function: only one person passes at one time


    6. When power is off, arms will open automatically, which is complying with fire safety requirements


    7. LED indicator (red × means no entry; green → means entry)


    8. Structure of trunking to contain cable tidy inside the case


    9. Easy to install and maintain


    10. 1-year warranty support

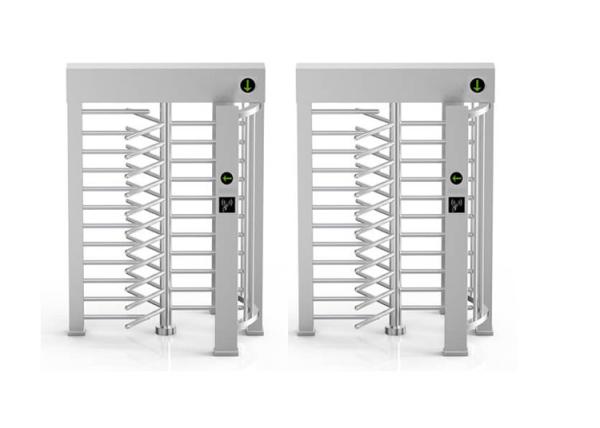

    PRODUCT PHOTO

    24VDC 40W 30person/Min Full Body Turnstile 610mm Width24VDC 40W 30person/Min Full Body Turnstile 610mm Width


    PRODUCT PARAMETER


    Model No.SN-FHT01
    BrandSINOMATIC
    Framework Material304 Full Stainless Steel
    Dimension1500 * 1343* 2300mm
    Weight210kg/pcs
    Passage Width610mm
    Arm Support120° rotors with 3 sections or 90° rotors with 4 sections
    Passing DirectionSingle directional / Bi-directional
    MCBF5 million
    Power SupplyAC220V/110V, 50/60Hz
    Operation Voltage24VDC
    Power Consumption40W
    Operation Temperature-20 °C - 60 °C
    Operation Humidity0 ~ 95% (No freeze)
    Working EnvironmentIndoor / Outdoor
    Flow Rate30 people per minute
    LED IndicatorYes
    EmergencyAutomatic arm open when power off
    CommunicationDry contact, Relay signal


    PRINCIPLE OF OPERATION


    In CLOSE position, the Electromagnetic Locking device prevent the rotor gear from rotating

    This keep the Turnstile in a close position, preventing unauthorized access.


    Upon receiving command signal authorizing access:
    • The locking device release the rotor gear
    • Pedestrian push the rotor to gain access
    • The rotor move by 120°
    • The turnstile lock at close position after pedestrian has passed
