    Retractable 3.7KW K12 Crash Automatic Rising Bollards SS304

    Ask Lasest Price
    Brand Name : SINOMATIC
    Model Number : SN-HRB01
    Certification : CE/ ISO
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram, credit card/Cash/wechat
    Supply Ability : 1000 pcs a month
    Delivery Time : 5-7 working days after payment received
    • Product Details
    • Company Profile

    Retractable 3.7KW K12 Crash Automatic Rising Bollards SS304

    Anti collision high security lifting up and drop down K12 crash rating automatic bollard systems


    PRODUCT OVERVIEW


    SINOMATIC cylindrical lifting bollard is automatic hydraulic type. It is mainly used to control the passage of road vehicles. It can be used together with the gate control system, or it can be used alone; According to the different needs of different customers, it has a variety of configuration options for users to meet the functional requirements of various customers.


    ADVANTAGE FEATURES

    • Different thickness of steel is available (default 6 mm)
    • Different color is available
    • Customized size is available
    • Steady and safe due to the OMRON PLC control system
    • Speedy rising time and durable quality with hydraulic pressure
    • Housing with durable and stainless Galvanization
    • Optimization of frame structure, high anti-impact capability, high loading capability
    • High security and anti-collision ability
    • With a reflective band and a low energy consumption LED light at night

    PRODUCT PARAMETERS


    ItemSPECS
    System controlIntegrated electric and hydraulic
    Diameter219,273,324mm
    Outer box sizeφ350*1120
    Rising height600mm (customized: 800mm, 1000mm)
    Thickness6mm (customized: 8mm, 10mm, 20mm)
    Material304 Stainless steel
    Through pressurecan bare more than 120 tons of container trucks
    Crash ratingK12
    Rising / Falling speed

    Rising speed: ≤ 3s (adjustable)

    Falling speed: ≤ 3s (adjustable)

    Power supply3 phase power 380V(control voltage 24V)
    System power3.7KW
    Level of protectionIP68
    LED lightRing LED light, Top LED light (optional)

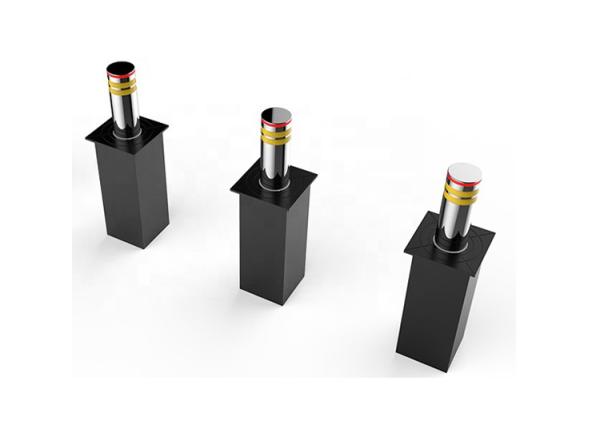

    PRODUCT PHOTO

    Retractable 3.7KW K12 Crash Automatic Rising Bollards SS304

    Retractable 3.7KW K12 Crash Automatic Rising Bollards SS304


    PRODUCT FUNCTIONS & FEATURES


    1. Anti-collision:It can be used normally after being hit by a 12-ton vehicle.

    2. Anti-destructive power:After being hit by a 16-ton vehicle, Hydraulic road bollards deformation.

    3. internal structure:With load-bearing steel beam and column, anti-collision steel beam column,

    4 navigation rods

    4. Can be manually lowered in the event of a power outage

    5. Linkage interface

    6. Reversible operation according to requirements during ascent and descent

    7. Noise during operation of the device≤60 dB

    8. Waterproof integrated hydraulic drive

    9. Control solenoid valve 24V

    10. Control box display text adjustable (up, down, start, time control adjustment)

    11. Display text in English

    12. Water immersion performance:no leakage during 48 hours and normal lifting

    13. Anti-corrosion performance level: 9


    CASE REFERENCE
